CENTURY MOTORS 953A Fan Motor 1/15-1/45-1/60HP

Product Description

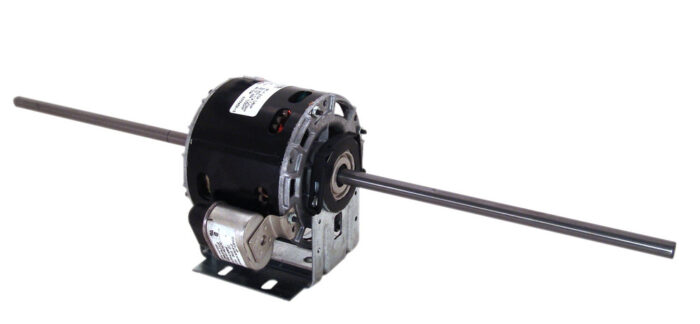

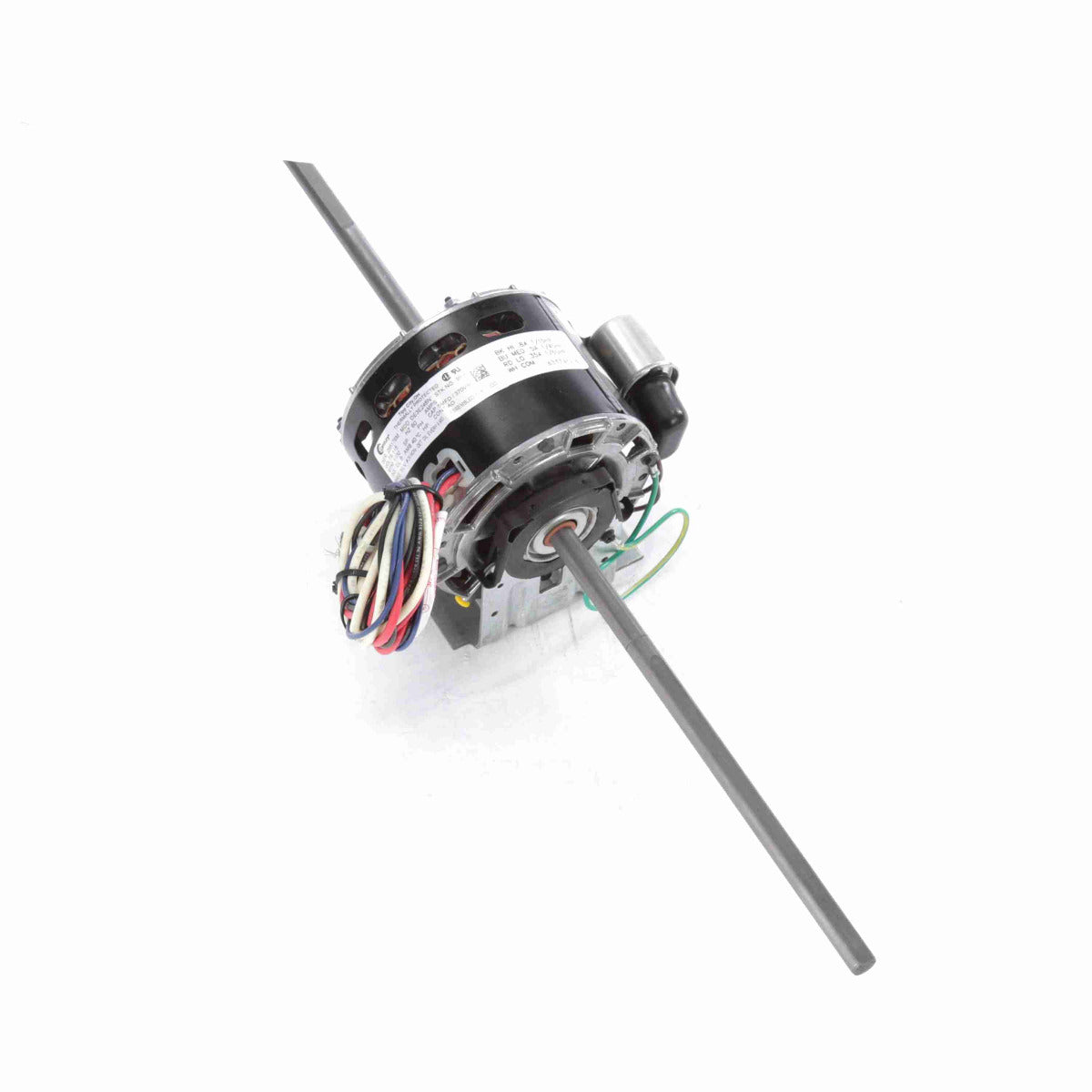

The CENTURY MOTORS 953A is a durable fan motor designed for OEM replacement. It operates at 115 volts and can achieve speeds up to 1100 RPM. This motor features a permanent split capacitor design with a ball bearing construction, ensuring reliable performance. It has an open air over enclosure and comes with a resilient base. The motor includes a double shaft with a diameter of 1/2 inch and flat design along with 40 leads. A capacitor is included with the motor.

• Permanent Split Capacitor (PSC) motor design
• 1/2 inch diameter double shaft with flat
• Operates at 115 volts with a maximum speed of 1100 RPM

Product Highlights

The CENTURY MOTORS 953A is suitable for various applications requiring reliable airflow and cooling.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: 953A

Technical Specifications

• Horsepower: 1/15-1/45-1/60 HP
• RPM: 1100
• Frame: 42
• Enclosure: Open Air Over (OAO)
• Input Voltage: 115 Volt
• Phase: 1
• Capacitor Required: 5 Mfd-370 Volts (Supplied)
• Diameter: 5 inches
• Shaft: 1/2 inch diameter double shaft with flat
• Leads: 40
• Insulation: Class B
• Ambient Temperature: 40°C
• Bearing: Ball Bearing
• Electrical Type: PSC
• Overload Protector: Automatic
• Material: Rolled Steel
• Rotation: CWSE / CCWLE
• Number of Speeds: 3
• Amperage: .8 - .5 - .35 Amps
• Shaft Dimensions: 10.75 inches x 1/2 inch x 10 7/8 inches
• Motor Diameter: 5 inches
• Motor Case Length: 3.75 inches
