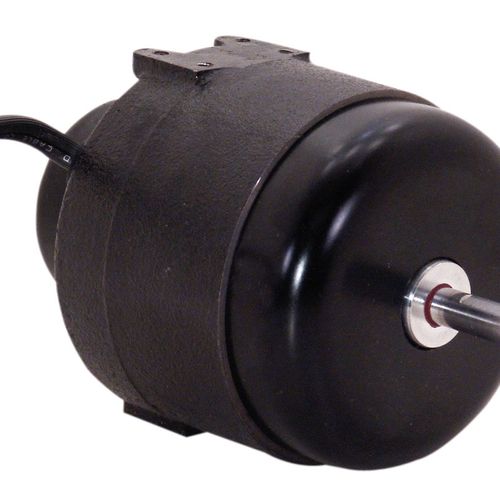

Century Motors 261 ccw 230V Motor

Product Description

The Century Motors 261 is a special unit bearing fan motor with a power rating of 50 watts and a voltage rating of 230V AC. Operating at 1500 RPM with a motor FLA of 0.85 Amp, this high-efficiency motor features a cast iron frame and is designed for horizontal mounting. It is suitable for refrigeration and other applications.

• Power Rating 50 Watt
• Voltage Rating 230 Volt AC
• Rotation Type Counterclockwise Lead End

Product Highlights

High-efficiency motor with cast iron frame, designed for horizontal mounting and counterclockwise rotation.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: 261
• Country of Origin: MX

Technical Specifications

• CATALOG NUMBER: 261
• CUSTOMER UPC: 78667400261
• Category: Motors & Power Transmission
• Frame Material: Cast Iron
• Frequency Rating: 50/60 Hertz
• Manufacturer Name: Century Motors
• Manufacturer Part Number: 261
• Motor FLA: 0.85 Amp
• Mounting: Horizontal and Shaft Up
• Number Of Speeds: 1
• Power Rating: 50 Watt
• Speed Rating: 1500 RPM
• UNSPSC Code: 26101105
• UPC: 786674002617
• Voltage Rating: 230 Volt AC
• Rotation Type: Counterclockwise Lead End
• Shaft Diameter: 0.375 in
• Electrical Type: Shaded Pole
• KW: 0.05
• Frame: UNIT BEARING
• Enclosure: Totally Enclosed Air Over
• Phase: Single
• Amperage: 0.85
• Shaft Type: Flat
• Shaft Extension: 1.600"
• Output Watts: 50 W
• Voltage: 208-230
• Speed: 1500 rpm
• Service Factor: 1
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 C
• Frequency: 60 Hz
• Current: 0.85 A
• Duty: Continuous
• Insulation Class: A
• UL: Recognized
• CSA: Y
• CE: N
• A2L Status: A2L Compliant
• Starting Method: Across The Line
• Poles: 4
• Drive End Bearing: Unit
• Opp Drive End Bearing: Unit
• Frame Length: 4.79 in
• Length (In.): 4.10
• Width (In.): 7.90
• Height (In.): 4.30
• Bearing: Unit
• Case Length (In.): 3.56
• Country of Origin: MX
• Horsepower: 50W
• RPM: 1500
• Speeds: 1
• Type: Shaded Pole
• Prop65: No
