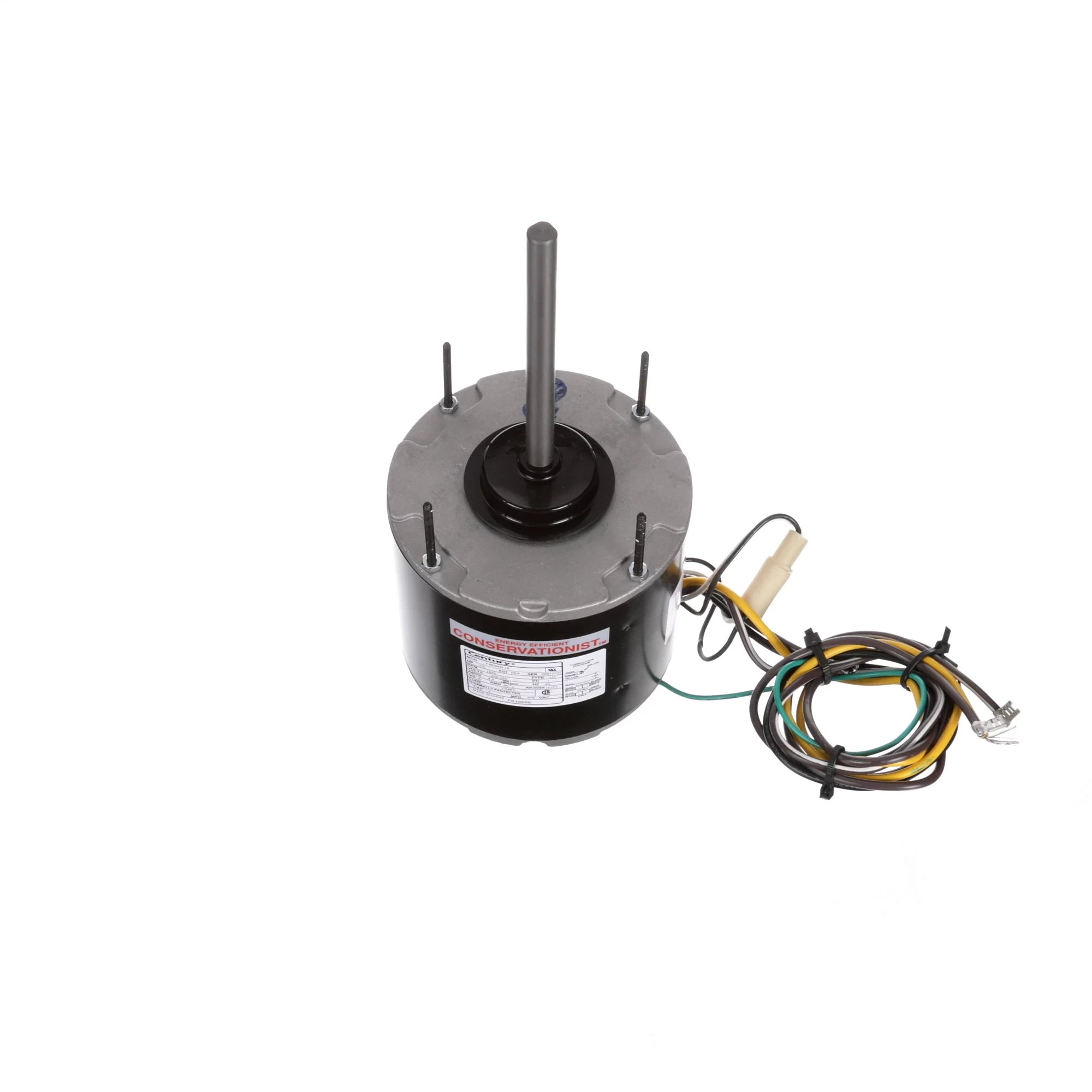

Century FS1056S Dripproof Open Lead End Motor 1/2 HP (48Y Frame) AOSFS1056S

Brand: CENTURY
SKU: FS1056S
Availability: In Stock

Ships same day if ordered by 12 pm
$207.35
$207.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Century FS1056S is a 1/2 HP PSC condenser fan motor rated 208-230 VAC and 1075 RPM. This single-phase, single-speed motor features reversible rotation, sleeve bearings, a 5 µF capacitor requirement, and a semi-enclosed air over (SEAO) lead end design. It mounts with extended studs on a NEMA 48Y frame and draws 4.5 A at 60 Hz, intended for condenser and HVAC air-over applications.

  • 1/2 HP PSC permanent split capacitor motor; 1075 RPM, single phase, single speed
  • 208-230 VAC, 60 Hz, full load 4.5 A; requires 5 µF capacitor; reversible rotation
  • Sleeve bearings, semi-enclosed air over (SEAO) lead end, extended studs mounting on 48Y frame

Product Highlights

1/2 HP condenser fan motor; 1075 RPM; 208-230 VAC; SEAO enclosure; extended studs mounting

Product Information

Standard Information

  • Brand: CENTURY
  • Manufacturer Part Number: FS1056S
  • Country of Origin: China
Technical Specifications
Brand
Century
MPN
FS1056S
Part Number
AOSFS1056S
Product Type
Condenser fan motor
Motor Type
PSC (Permanent Split Capacitor)
Horsepower
1/2 HP
Horsepower (kW)
0.37 kW
RPM
1075
Frequency
60 Hz
Voltage
208-230 VAC
Phase
Single
Full Load Amps
4.5 A
Capacitor MFD
5 µF
Number of Speeds
1 (Single)
Rotation
Reversible
Bearing Type
Sleeve
Motor Enclosure
Semi-Enclosed Air Over (SEAO)
Mounting Type
Extended Studs
NEMA Frame
48Y
Shaft Diameter
0.5 in
Shaft Length / Extension
6.44 in
Lead Length
26 in
Insulation Class
B
Duty
Continuous (S1)
Service Factor
1
Thermal Protection
Automatic overload protector
Poles
6
Frame Material
Rolled steel
Shaft Type
Double flat
UL Recognized
Yes
CSA Listing
Yes
Country of Origin
China
