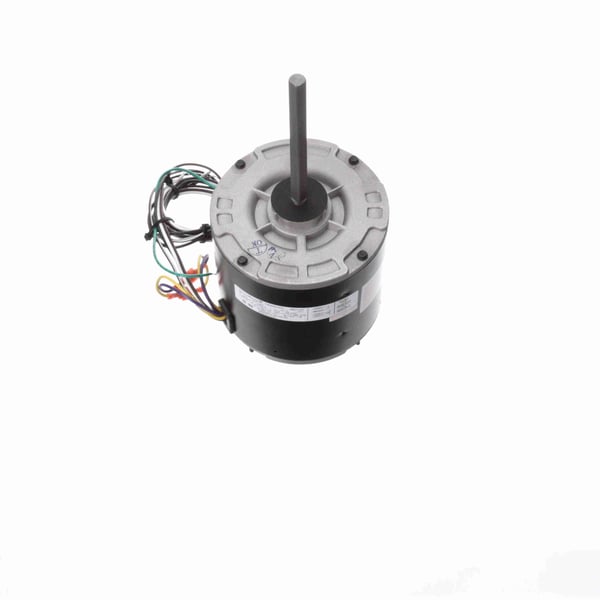

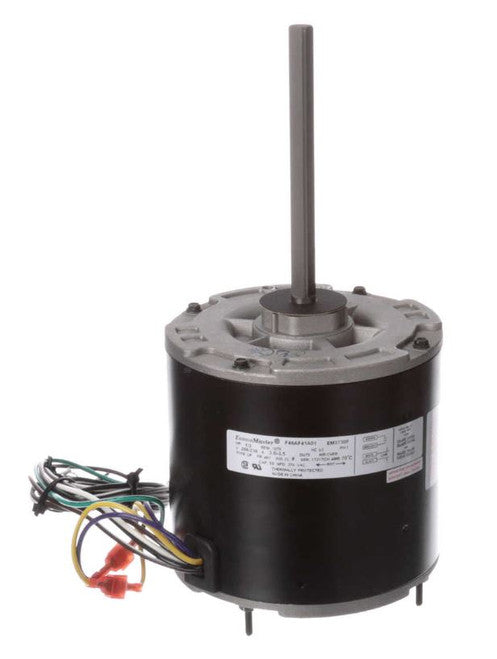

CENTURY EM3730F PRO-E SERIES Condenser Fan Motor, 1/2 HP, 208-230 V

Product Description

The Century EM3730F PRO-E SERIES Condenser Fan Motor operates at 1/2 horsepower, designed for HVAC applications. It runs on a voltage of 208-230 V and a frequency of 60 Hz, with a single speed of 1075 RPM and a 48 frame size. This motor is totally enclosed with air over cooldown and comes with class F insulation along with automatic thermal protection.

• Permanent split capacitor motor requiring a 10 Mfd-370 Volt capacitor (not included).
• Features thermal protection and a totally enclosed design for reliability.
• Ball bearing with extended studs for easy installation.

Product Highlights

The Century EM3730F serves as a dependable replacement for various air conditioning units. It allows for simple rotation changes and can be mounted in either shaft up or down configuration.

Product Information

Standard Information

• Brand: Century
• MPN: EM3730F

Technical Specifications

• Phase: 1
• Output HP: 1/2 Hp
• Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Current: 3.0-3.5 A
• Insulation Class: F
• Noise Level: Low
• Drive End Bearing: Ball
• Mounting Type: Extended Studs
• Shaft Size: 1/2 in Dia x 6 in Length
• Continuous Duty: Yes
