CENTURY BDH1076 Diameter Stock Motor 3/4 HP, 1/2 HP

Product Description

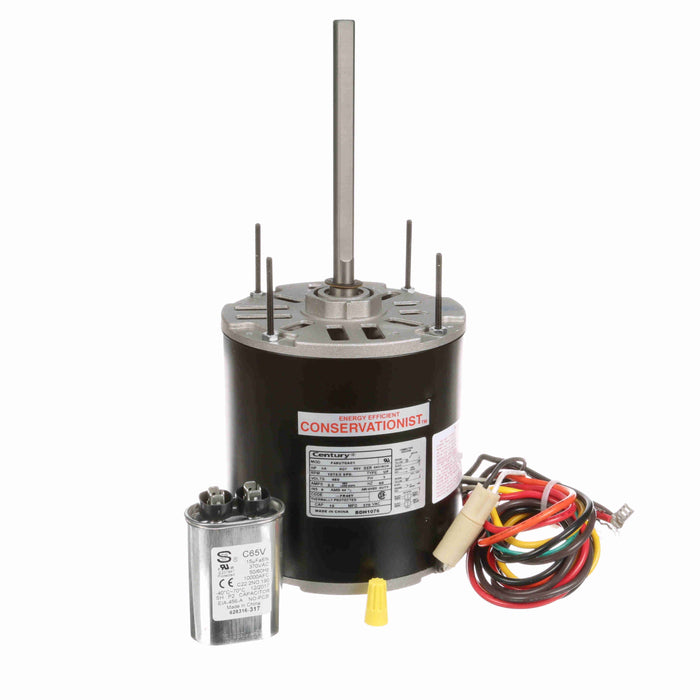

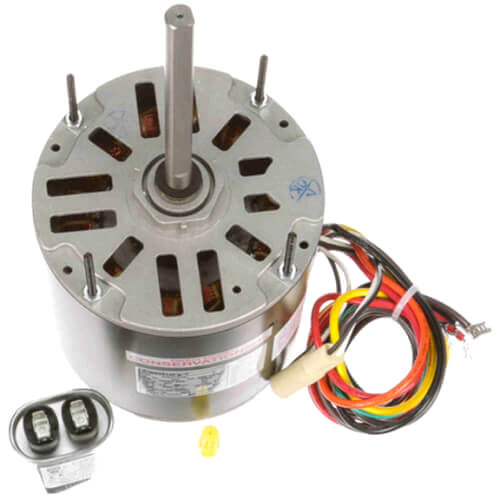

The CENTURY BDH1076 is a 5-5/8 inches diameter stock motor featuring a reversing plug and hex mounting hub on both ends. It delivers 3/4 HP to 1/2 HP at 1075 RPM and operates at 460V. This permanent split capacitor motor provides reconnectable speeds and automatic overload protection, ideal for air over applications.

• Reversing plug for operational flexibility.
• Hex mounting hubs for easy installation.
• Energy-efficient design for continuous duty operation.

Product Highlights

This motor is designed for direct drive fan and blower applications, ensuring dependable performance in HVAC systems and other related equipment.

Product Information

Standard Information

• Brand: CENTURY
• MPN: BDH1076

Technical Specifications

• Type: Permanent Split Capacitor
• Bearings: Ball
• Enclosure Type: Semi-Enclosed
• Voltage: 460 V
• Horse Power: 3/4
• Duty: Air Over
• Speeds: 2
• RPM: 1075
• Poles: 6
• Phase: 1
• Rotation: Reversible
• Hertz: 60
• Frame: 48Y
• Insulation Class: B
• Diameter: 5-5/8 inches
• Overload Protection: Automatic
• Max Ambient Temp: 140 °F
• Orientation: Horizontal
• Output HP: 3/4 HP
• Output KW: 0.56 kW
• Service Factor: 1
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 2.2 A
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 12.61 inches
• Frame Length: 5.13 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.4 inches
• Packaged Length: 15.55 inches
• Packaged Width: 6.45 inches
• Packaged Height: 6.81 inches
• Product Type: PSC (Permanent Split Capacitor)
• Amps: 2.2
• Hz: 60
• Enclosure: Semi Enclosed
• Mounting: Band/Ring/Stud
• Motor Diameter: 5-5/8 inches
• Shaft Length: 6.44 inches
• Service Factor (SF): 1.00
• Maximum Ambient Temperature: 60 °C
• Duty Cycle: Continuous
• Capacitor: 15MFD @ 370VAC (Included)
