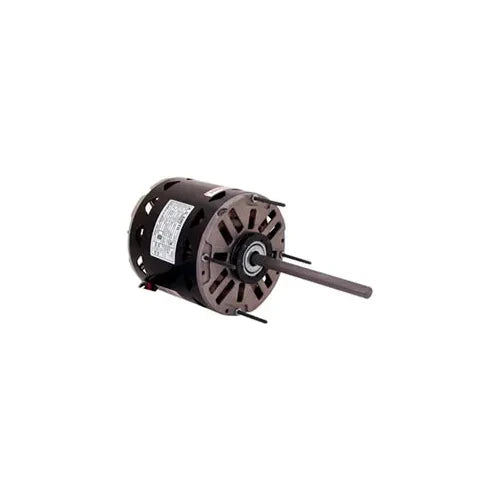

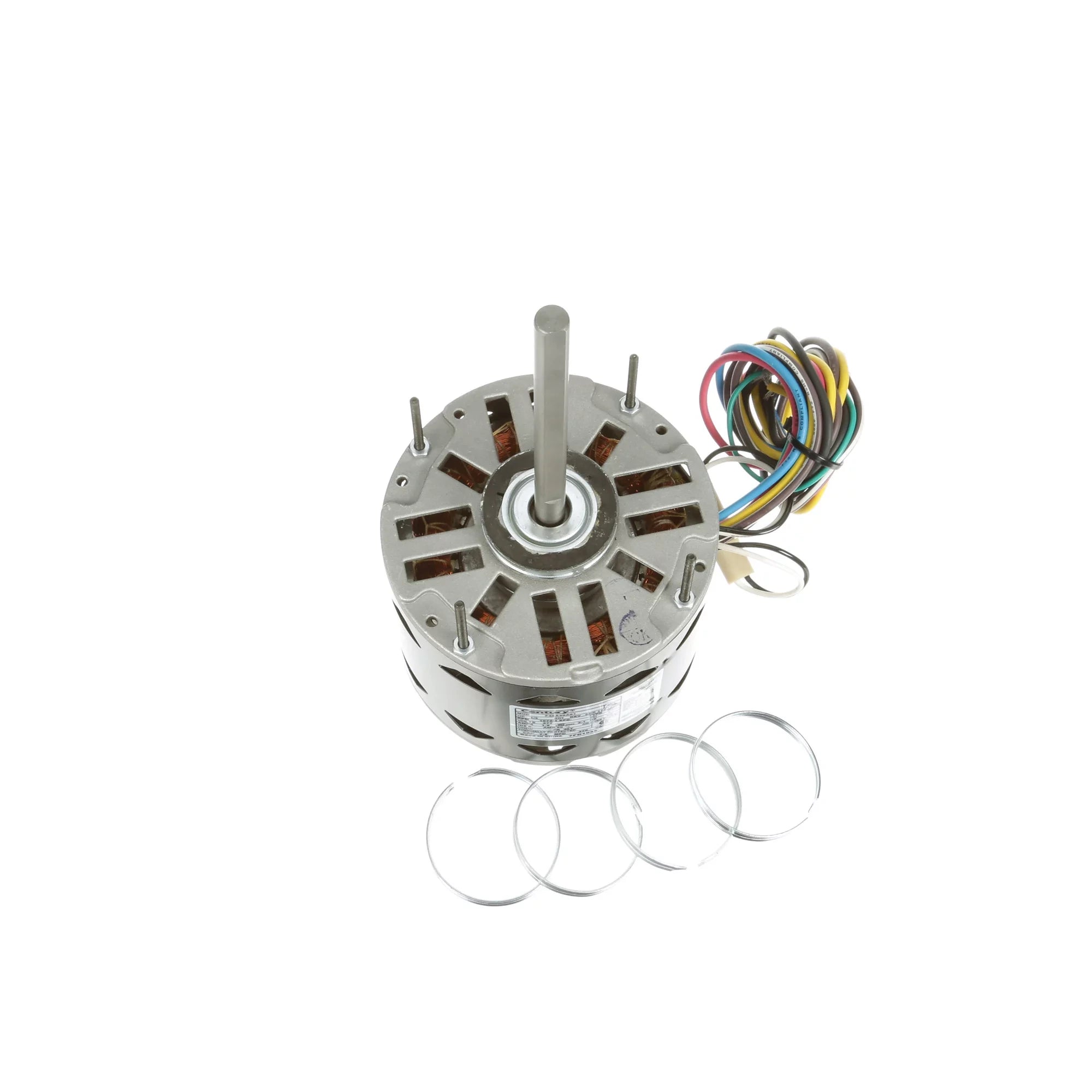

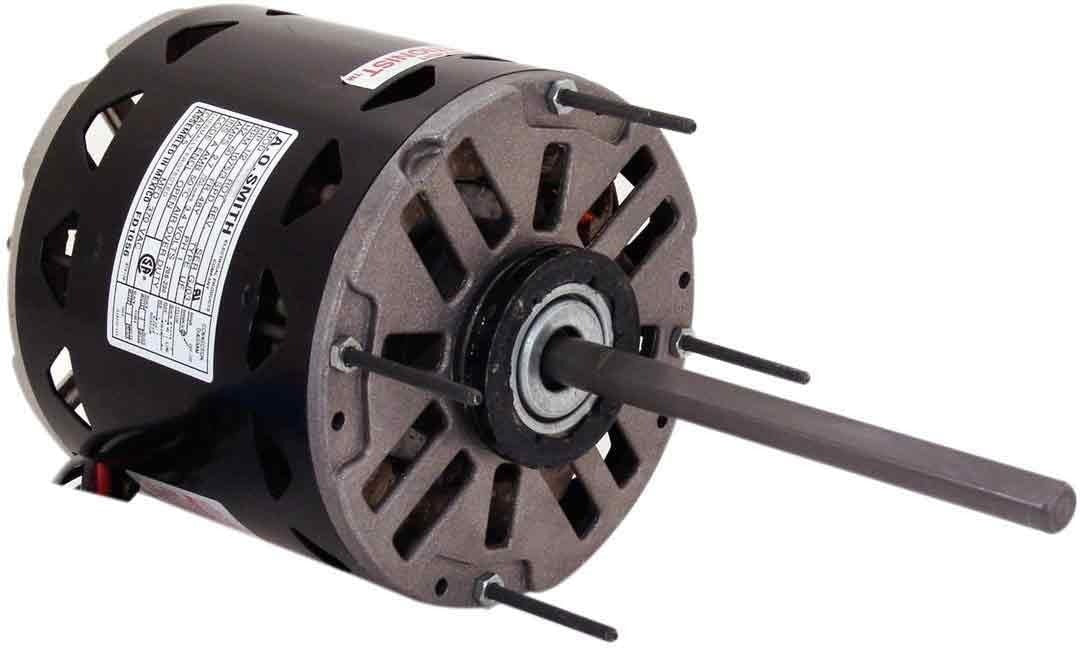

Century 7FD1036 Blower Motor 1/3 HP (5.6-Inch Frame) D972

Brand: CENTURY
SKU: 7FD1036
Availability: In Stock

Ships same day if ordered by 12 pm
$391.77
$391.77
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Century 7FD1036 is a direct-drive blower motor rated 1/3 HP with a 5.6-inch (48) frame, designed for fan and air-moving applications. The motor runs at 1075 RPM on 277 V with approximately 1.9 A full load, and uses sleeve bearings. It provides three-speed, reversible operation and requires a start/run capacitor for PSC operation.

  • 1/3 HP, 1075 RPM, 277 V, ~1.9 A; three-speed, reversible rotation
  • Permanent split capacitor (PSC) type; capacitor requirement 7.5 MFD @ 370 VAC; thermal protection
  • 48Y / 5.6-inch frame; sleeve bearing; 1/2-inch shaft diameter with approximately 6.44-inch shaft length; resilient ring/extended studs mounting

Product Highlights

Direct-drive 1/3 HP PSC blower motor, 1075 RPM, 277 V, 48Y (5.6-inch) frame, three-speed reversible operation, sleeve bearing, 1/2-inch shaft.

Product Information

Standard Information

  • Brand: CENTURY
  • Manufacturer Part Number: 7FD1036
  • Country of Origin: India
Technical Specifications
Brand
Century
MPN
7FD1036
Model
7FD1036
Product Type
Direct drive blower motor
Motor Type
Permanent split capacitor (PSC)
Horsepower
1/3 HP (0.33 hp)
Power kW
0.25 kW
Rated Speed (RPM)
1075 RPM
RPM Range
1001-1100 rpm
Number of Speeds
3
Voltage
277 V
Phase
Single
Frequency
60 Hz
Full Load Amps
1.9 A (approx.)
Service Factor
1.0
Frame
48Y
Frame Diameter
5.6 inches
Enclosure Type
Open air over (OAO)
Duty
Continuous / Air over
Rotation
Reversible
Bearing Type
Sleeve bearing
Shaft Diameter
0.5 in (1/2")
Shaft Length
6.44 in (approx.)
Shaft Extension
6.4 in
Shaft Type
Flat
Mounting Type
Resilient ring / extended studs (band/ring/stud)
Capacitor Requirement
7.5 MFD @ 370 VAC (required, not supplied)
Thermal Protection
Automatic
Insulation Class
B
Maximum Ambient Temperature
50 C
Poles
6
Service Duty
Continuous (S1)
Enclosure Protection
Open / Drip proof
Lead Length
26 in (specified in some sources)
Dimensions (L x W x H)
11.75 x 6.25 x 6.75 inches
Overall Length
10.93 in (reported in some sources)
UL Recognized
Yes
CSA Listing
Yes
UPC
786674010919
Country of Origin
India
Typical Applications
HVAC blower and fan assemblies
