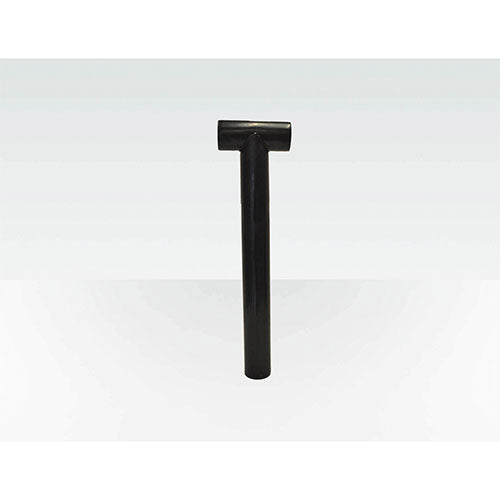

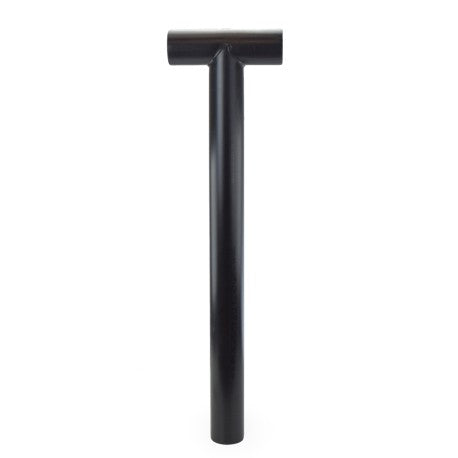

CENTROTHERM ISTT0220 InnoFlue 2 Termination Tee

Product Description

The CENTROTHERM InnoFlue ISTT0220 is a two-inch termination tee made for effective exhaust gas management. This component is built from UV-stabilized polypropylene, making it well-suited for natural gas, propane, and fuel-oil condensing and non-condensing appliances with flue temperatures below two hundred forty-eight degrees Fahrenheit. It is ideal for environments exposed to wind, rain, or freezing conditions. This tee enhances exhaust flow at the termination point and provides flexible configuration options.

• Constructed from durable UV-stabilized polypropylene.
• Compatible with single-wall venting systems.
• Designed to withstand up to two hundred thirty degrees Fahrenheit (one hundred ten degrees Celsius).

Product Highlights

This termination tee supports various applications, ensuring reliable exhaust flow in diverse conditions.

Product Information

Standard Information

• Brand: CENTROTHERM
• MPN: ISTT0220

Technical Specifications

• Material: Polypropylene
• Diameter: 2 inches
• Length: 28.8 inches
• Width: 7.6 inches
• System Type: Single wall
• Maximum Temperature Resistance: 120 °C
• Certifications: UL 1738 - ICC-ES, ULC S636 - ICC-ES
• Net Weight: 0.28 kg / 0.6 lbs
