CENTROTHERM ECO SYSTEMS ISEL0345 InnoFlue 45 Degree Vent Elbow

Product Description

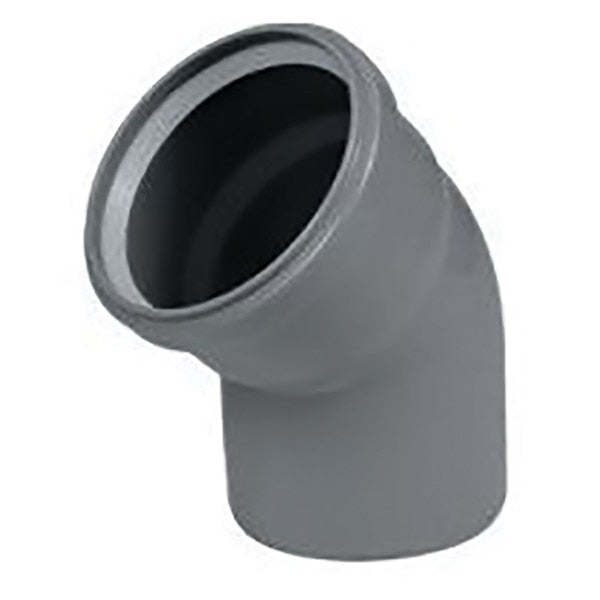

The CENTROTHERM ECO SYSTEMS InnoFlue ISEL0345 is a 45-degree elbow used in venting systems. It is made from polypropylene, allowing for effective directional changes within the vent system. This elbow includes an integrated EPDM gasket that guarantees an airtight seal during installation. The product meets UL1738 and ULCS636 standards for safety and performance.

• 45-degree angle for vent adjustments
• Made from durable polypropylene
• Designed for single wall systems

Product Highlights

Ideal for creating directional changes in venting systems, the ISEL0345 enhances system efficiency with its robust construction.

Product Information

Standard Information

• Brand: CENTROTHERM ECO SYSTEMS
• Trade Name: InnoFlue

Technical Specifications

• MPN: ISEL0345
• Angle: 45 degrees
• Material: Polypropylene
• Pressure Rating: 725 psi
• Size: 3 inches
• Temperature Rating: 230 to 248 degrees F
• System Type: Single wall
• Length Gross: 7.1 inches
• Height: 3.7 inches
• Diameter Flue Pipe: 3 inches
• Width: 5.5 inches
• Net Weight: 0.3 lbs
• Temperature Resistance (Max): 120 °C
• Certificates (US/CAN): UL 1738 - ICC-ES / ULC S636 - ICC-ES
• Dimensions: 3.8 inches OD
