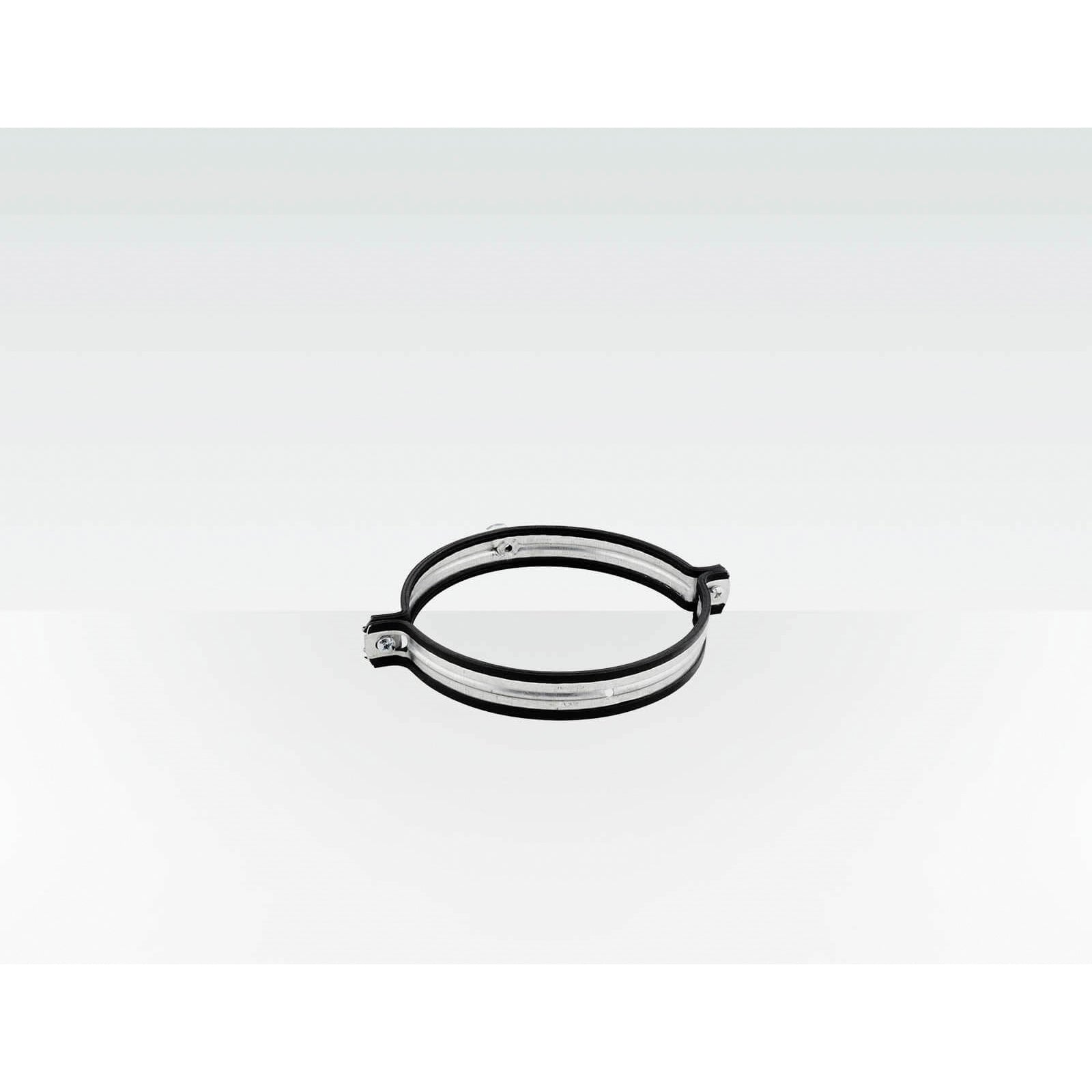

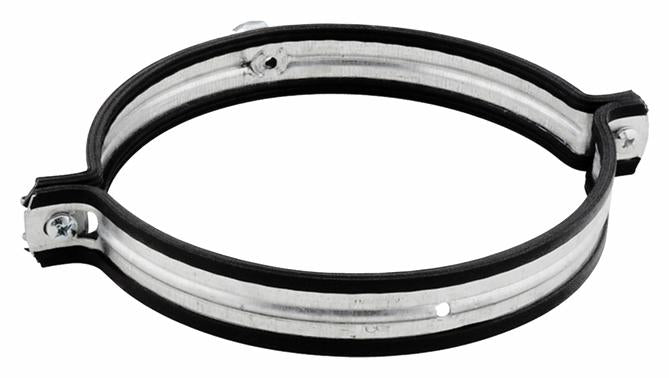

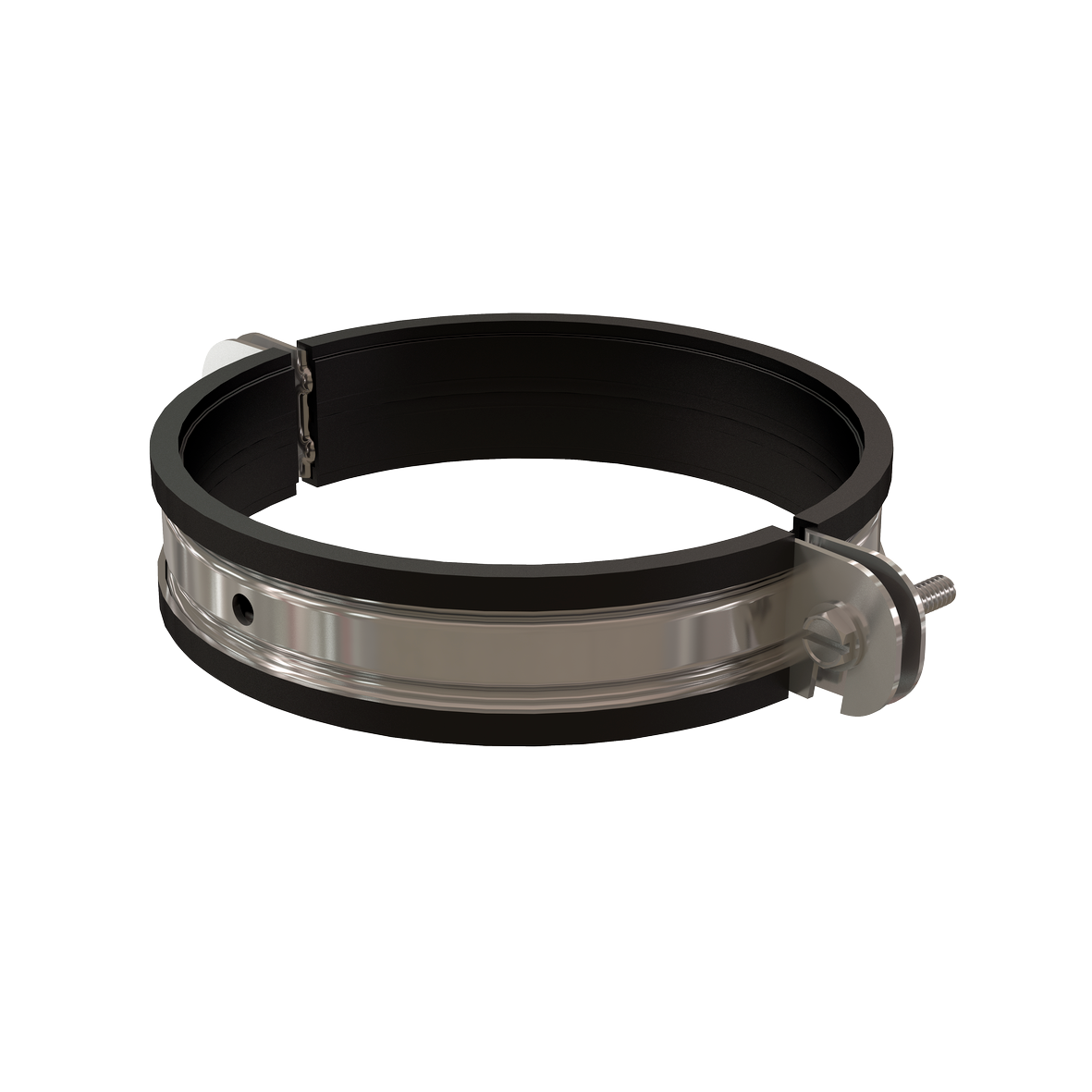

The CENTROTHERM 250410203530 InnoFlue Support Clamps provide support for the exhaust system. The metal clamp is engineered to withstand and support the vent system during installation. The metal interior is coated with a rubber exterior to prevent scratching of the venting components. Can be used as vertical or horizontal support.
Accepts standard 3/8th" threaded rod.
Metal interior and rubber exterior support and protect pipe.
Evaluated to UL1738 and ULCS636 by ICC.
Product Highlights
The InnoFlue Support Clamps provide a user-friendly option to support the exhaust system. Lightweight and durable. Space 78" in vertical and 39" in horizontal installations.
Product Information
Standard Information
Brand: CENTROTHERM
Manufacturer Part Number: 250410203530
Country of Origin: Domestic
Technical Specifications
Product Name
4" Support Clamp with 3/8" Nut
Trade name
InnoFlue
GTIN
0815010016152
Part number
250410203530
Material
Steel
Length gross
160 mm / 6.3 inch
Height
27 mm / 1.1 inch
Width
130 mm / 5.1 inch
Net weight
0.14 kg / 0.3 lbs
Intrastat
7326908630
Base unit packaging
Unpacked
Packaging / Trade length
160 mm / 6.3 inch
Packaging / Trade height
27 mm / 1.1 inch
Number per packaging
1
Gross weight
0.14 kg / 0.3 lbs
Packaging / Trade width
130 mm / 5.1 inch
Certificates (US/CAN)
UL 1738
