Product Description

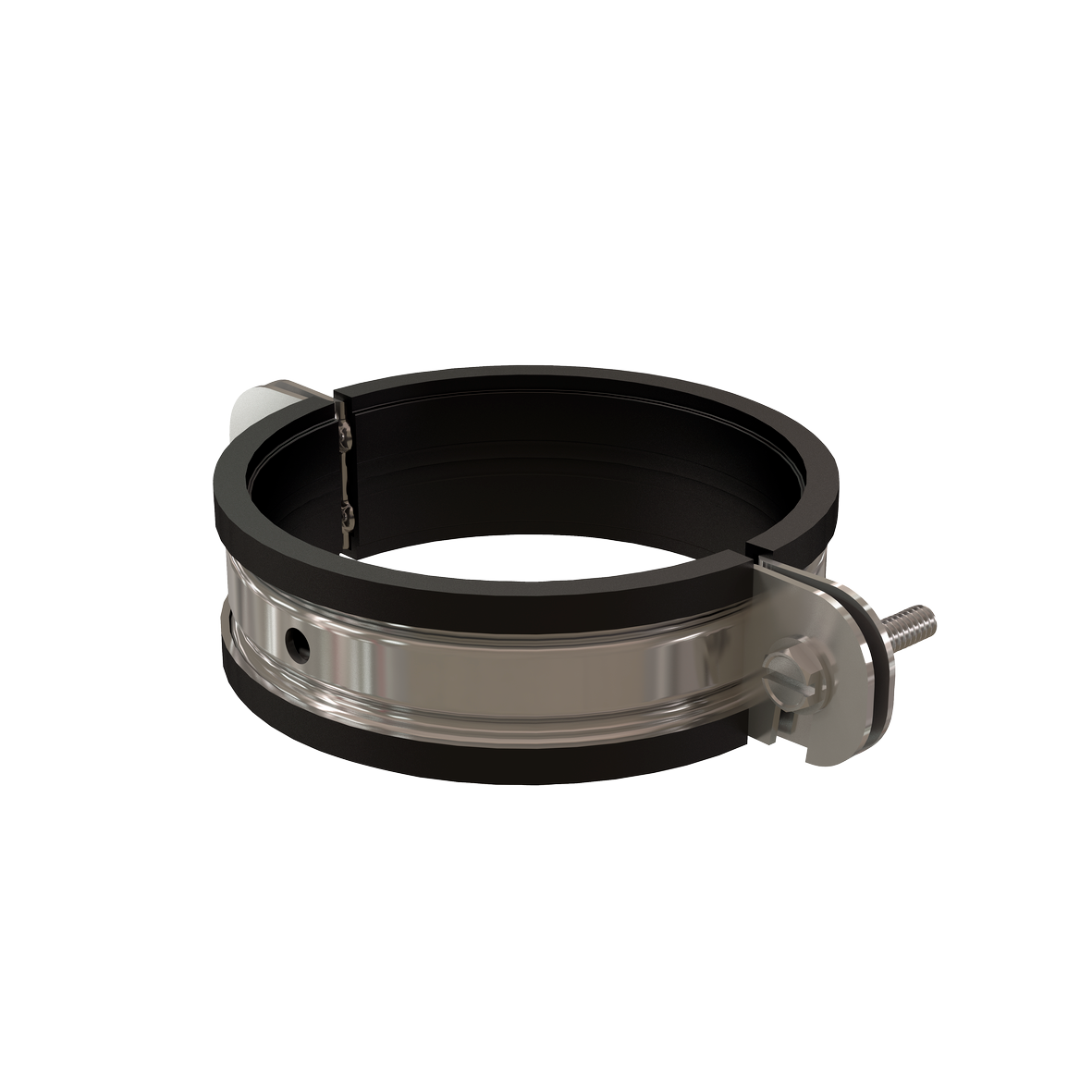

The CENTROTHERM 250410103520 InnoFlue Support Clamp provides a user-friendly option to support the exhaust system. The metal clamp is engineered to withstand and support the vent system during installation. It can be used as vertical or horizontal support, spaced 78" in vertical and 39" in horizontal installations.
- Used as vertical or horizontal support
- Space 78 in vertical and 39 in horizontal installations
- Uses 3/8 in threaded rod
Product Highlights
The InnoFlue support clamp features a metal interior coated with a rubber exterior to prevent scratching. It is evaluated to UL1738 and ULCS636 by ICC.
Product Information
Standard Information
-
Brand: CENTROTHERM
-
Manufacturer Part Number: 250410103520
-
Country of Origin: United States
Technical Specifications
-
Capacity: 3 in
-
Domestic/Import: Domestic
-
Length: 3.8 In
-
Width: 95 mm / 3.7 inch
-
Product Name: 3'' Support Clamp with 3/8" Nut
-
Trade name: InnoFlue
-
GTIN: 0815010016145
-
Part number: 250410103520
-
Material: Steel
-
Length gross: 127 mm / 5 inch
-
Height: 27 mm / 1.1 inch
-
Net weight: 0.114 kg / 0.3 lbs
-
Intrastat: 7326908630
-
Base unit packaging: Unpacked
-
Packaging / Trade length: 127 mm / 5 inch
-
Packaging / Trade height: 27 mm / 1.1 inch
-
Number per packaging: 1
-
Gross weight: 0.114 kg / 0.3 lbs
-
Packaging / Trade width: 95 mm / 3.7 inch
-
Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
-
MPN: 250410103520
-
Manufacturer Part Number: 250410103520
-
UPC / GTIN: 815010016145
-
Manufacturer: Centrotherm
