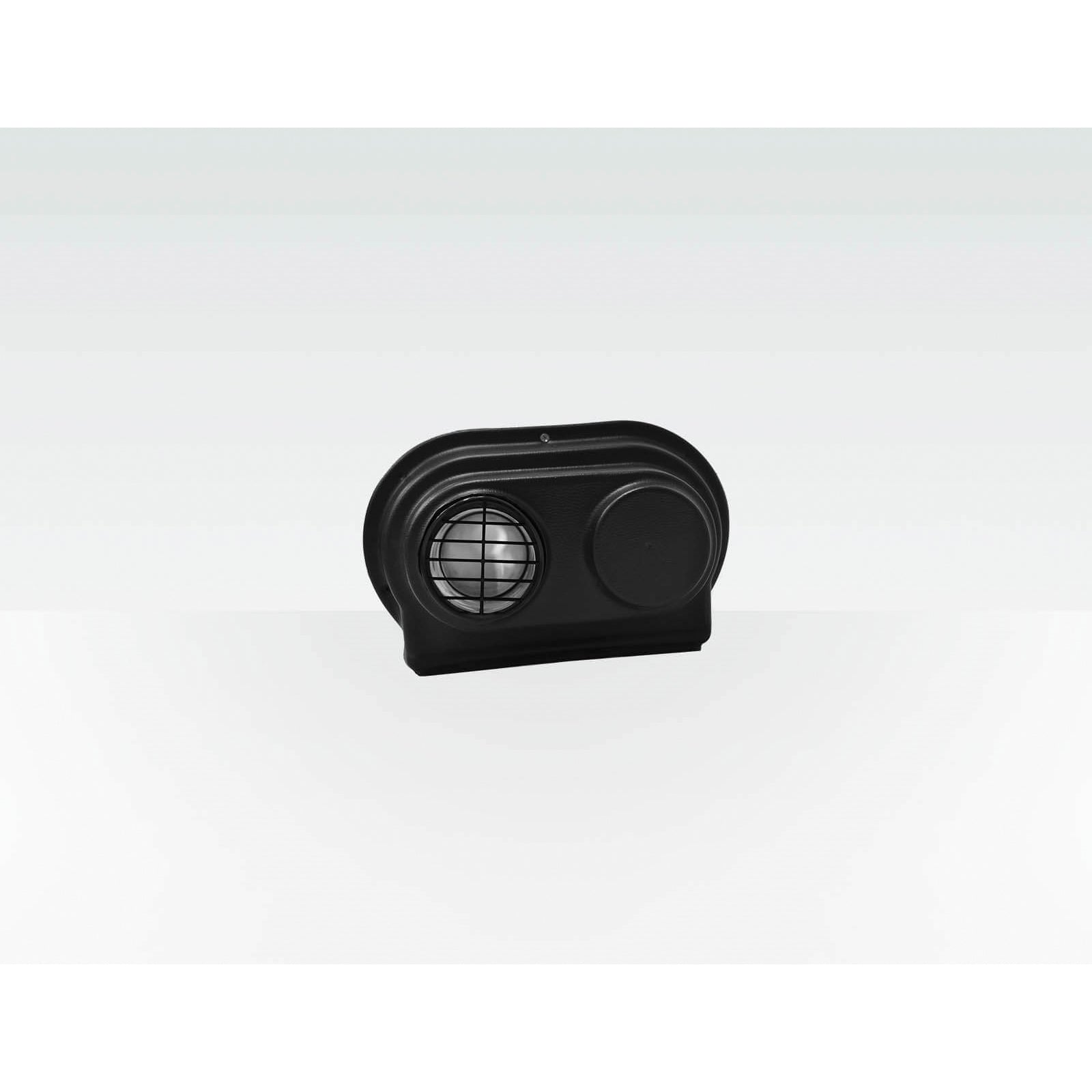

Centrotherm 250407203200 Wall Termination 4 Inches

Product Description

The CENTROTHERM 250407203200 is a gasketed polypropylene low profile wall termination designed for direct-vent and positive-pressure flue systems. Rated for continuous exposure up to 230 degrees F, this termination cap handles the corrosive condensate and elevated flue temperatures common in high-efficiency gas appliance installations. The polypropylene construction resists chemical degradation from acidic condensate, making it a reliable choice for condensing furnace and boiler venting applications. A licensed HVAC technician or plumber installs this component as part of a certified venting system. It fits 4-inch vent pipe and mounts flush against an exterior wall surface.

This wall termination is used in residential and light commercial installations where a low-profile exterior wall exit is required for polypropylene vent systems. It is suited for condensing gas furnaces, boilers, and other high-efficiency appliances that require Category IV or positive-pressure plastic venting routed horizontally through an exterior wall. The gasketed design helps maintain a sealed connection at the wall penetration point. It also functions as the termination point for the CENTROTHERM ISLPT0404 vent system.

Key Features

• Rated up to 230 degrees F for use with high-efficiency condensing appliances
• Gasketed design provides a sealed, weather-resistant wall connection
• Polypropylene construction resists corrosion from acidic flue condensate
• Low profile exterior wall mount reduces protrusion from building facade
• Designed for 4-inch polypropylene vent pipe systems

Compatibility

Designed as a wall termination component for 4-inch polypropylene positive-pressure vent systems, including the CENTROTHERM ISLPT0404 vent system.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber in accordance with the appliance manufacturer's venting instructions and applicable local mechanical codes. Shut off and lock out the appliance before beginning any venting work. Ensure the wall penetration is properly sealed against air infiltration and moisture intrusion. Follow IFGC and local authority requirements for termination clearances from windows, doors, and gas meters.

Technical Specifications

• Size: 4 inches
• Type: Wall Termination
• Material: Polypropylene
• Maximum Temperature Rating: 230 degrees F
• Gasket: Included

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250407203200
