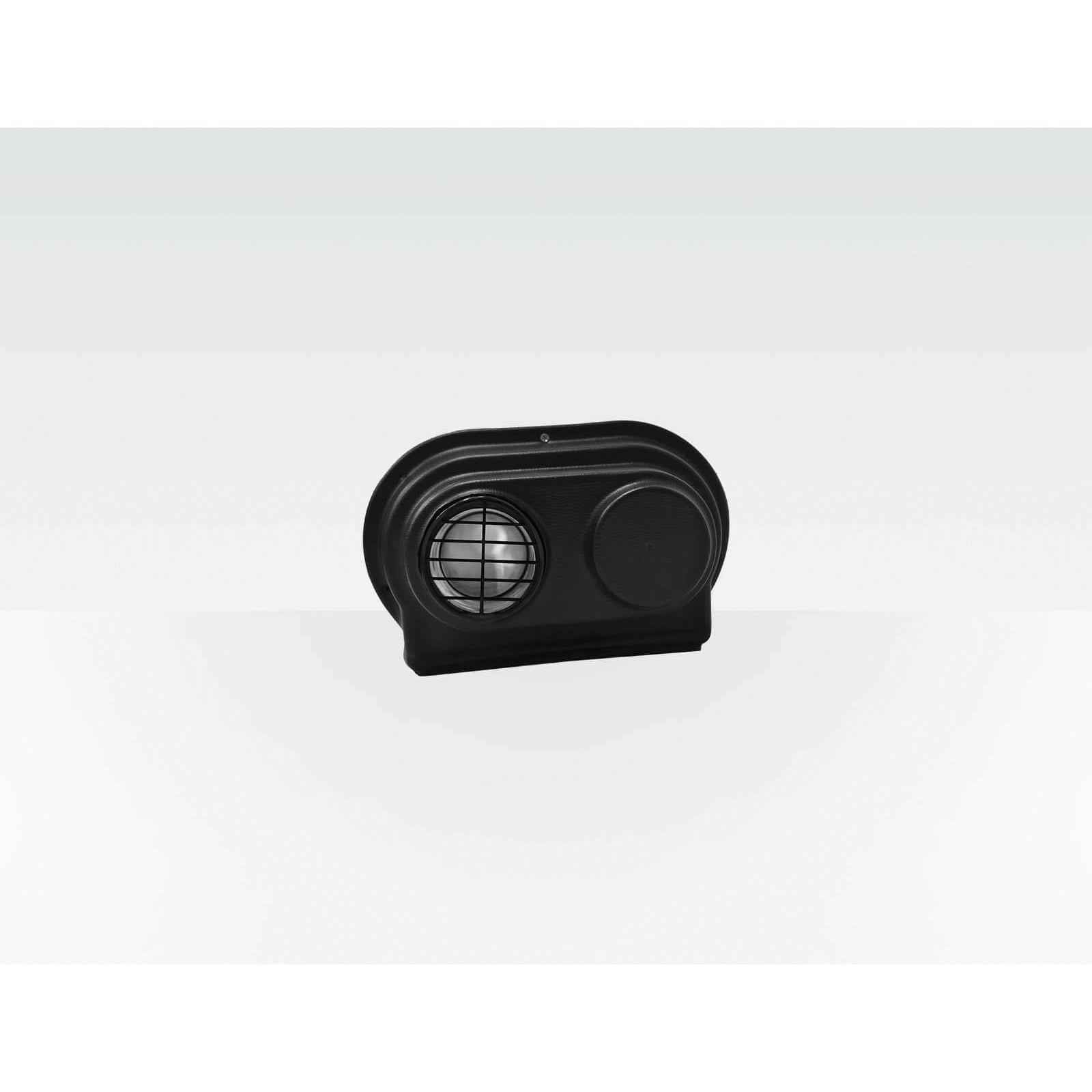

Centrotherm 250407003180 2in Poly Vent Wall Termination

Product Description

The CENTROTHERM 250407003180 is a 2-inch gasketed polypropylene low profile wall termination designed for direct-vent and single-pipe venting systems. Rated for temperatures up to 230 degrees F, this termination fitting handles the exhaust demands of high-efficiency condensing appliances including boilers and furnaces. The polypropylene construction resists condensate and flue gas corrosion. A factory-installed gasket provides a sealed, weathertight connection at the wall penetration. Licensed HVAC technicians and mechanical contractors install this fitting as the final wall-exit component of a polypropylene vent run.

This termination is suited for residential and light commercial applications where a low-profile exterior wall exit is required. It is used with polypropylene vent systems serving condensing gas appliances. The 2-inch diameter fits standard small-bore polypropylene vent piping configurations commonly found on high-efficiency boilers and modulating furnaces. The low profile design minimizes exterior wall protrusion while maintaining proper clearances and draft performance.

Key Features

• Rated to 230 degrees F for use with condensing appliance exhaust
• Gasketed construction provides a weathertight seal at the wall termination point
• 2-inch diameter fits standard small-bore polypropylene vent piping
• Polypropylene material resists condensate and corrosive flue gases
• Low profile wall design reduces exterior protrusion
• Wall-mount termination type for through-wall vent exit applications

Compatibility

Designed as an OEM-style replacement and system component for 2-inch polypropylene vent systems on condensing gas appliances requiring low profile wall termination fittings.

Installation Notes

Installation should be performed by a licensed HVAC technician or mechanical contractor in accordance with the appliance manufacturer instructions and applicable mechanical codes. Shut down and lock out the connected appliance before removing or replacing any vent termination components. Ensure the wall penetration is properly sealed around the fitting to prevent air infiltration and moisture intrusion. Verify exterior termination clearances comply with local code requirements for combustion air and exhaust proximity to openings.

Technical Specifications

• Size: 2 inches
• Type: Wall Termination
• Material: Polypropylene
• Maximum Temperature Rating: 230 degrees F

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250407003180
