Centrotherm 250400202350 InnoFlue Vent Length 4 inches x 36 inches

Product Description

The CENTROTHERM 250400202350 InnoFlue vent lengths are constructed from UL1738 and ULCS636 listed polypropylene. Engineered to withstand flue gas temperatures up to 230°F (110°C). InnoFlue vent lengths provide an environmentally friendly venting solution that installs quickly without any glues, primers, or solvents. InnoFlue vent lengths are thin-wall and lightweight combining performance and durability.

• Evaluated to UL1738 and ULCS636 by ICC.
• Engineered for high-efficiency venting up to 230°F (110°C).
• Durable and lightweight.

Product Highlights

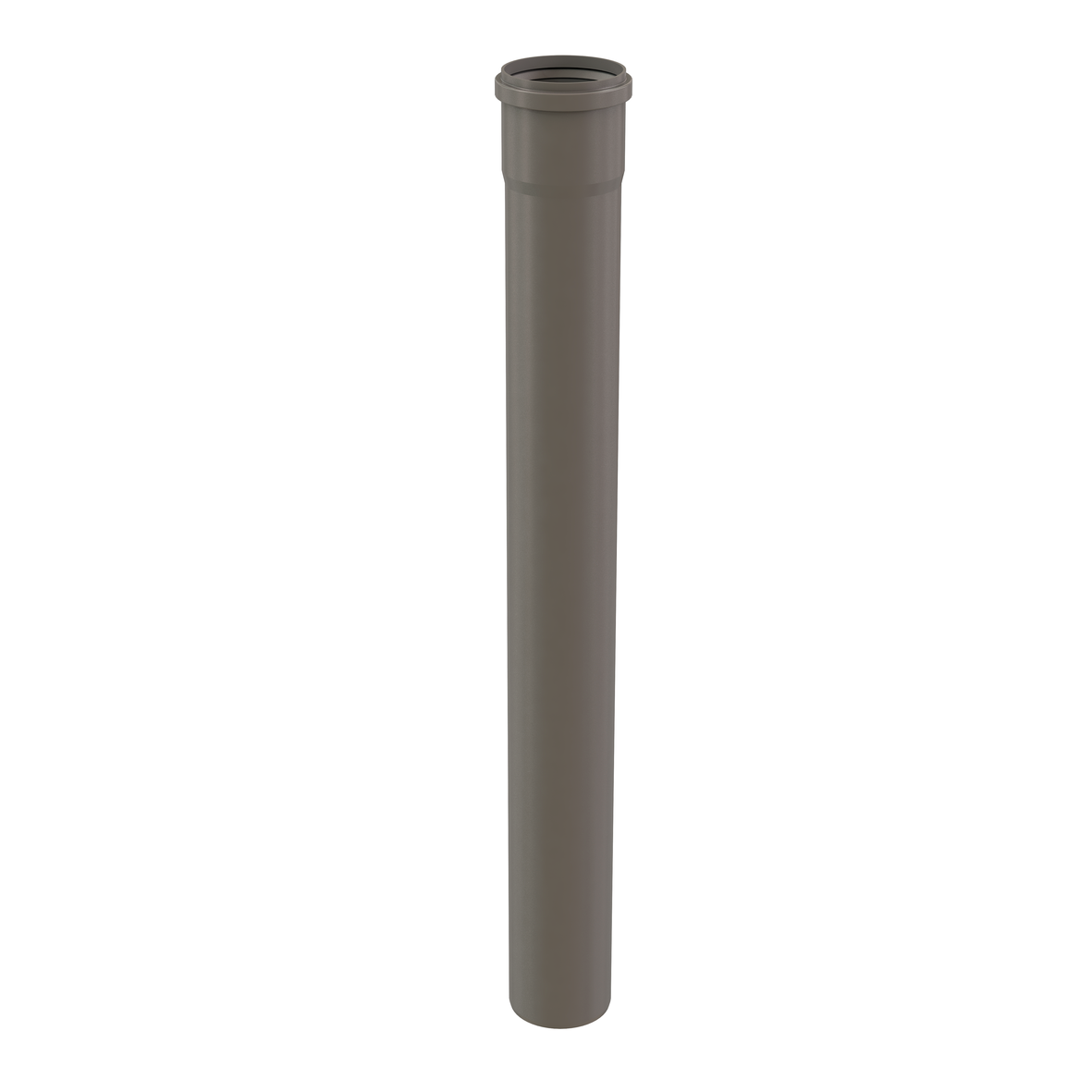

The vent lengths are rigid polypropylene with dedicated male and female ends. Female ends contain internal gasket and male ends can be field cut and chamfered to desired length.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250400202350
• Country of Origin: Domestic

Technical Specifications

• Product Name: 4" x 36" Vent Length
• Trade name: InnoFlue
• GTIN: 0815010015841
• Part number: 250400202350
• Material: PPs
• System type: Single wall
• Length gross: 1016 mm / 40 inch
• Height: 128 mm / 5 inch
• Diameter flue pipe: 110 mm / 4 inch
• Width: 128 mm / 5 inch
• Net weight: 0.933 kg / 2.1 lbs
• Intrastat: 3917220000
• Base unit packaging: Unpacked
• Packaging / Trade length: 1016 mm / 40 inch
• Packaging / Trade height: 128 mm / 5 inch
• Number per packaging: 1
• Gross weight: 0.933 kg / 2.1 lbs
• Packaging / Trade width: 128 mm / 5 inch
• Temperature resistance (max.): 120 °C
• Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
• Diameter: 4 in
• Domestic/Import: Domestic
• Length: 36 in
• Type: Single Wall
• MPN: 250400202350
• UPC / GTIN: 815010015841
• Manufacturer: Centrotherm
• Item Weight: 2.1 lb.
• Item Dimensions: L 40 x W 5 x H 5 (in.)
• Brand: Centrotherm Eco Systems
• MFR Part #: ISVL043
• Residential Application: Yes
• Certifications: CE EN-14471 | cETLus Intertek Listed | Category II/III and IV Gas Vent BH | Class II C Gas Vent BH | UL-1738 | ULC S636
