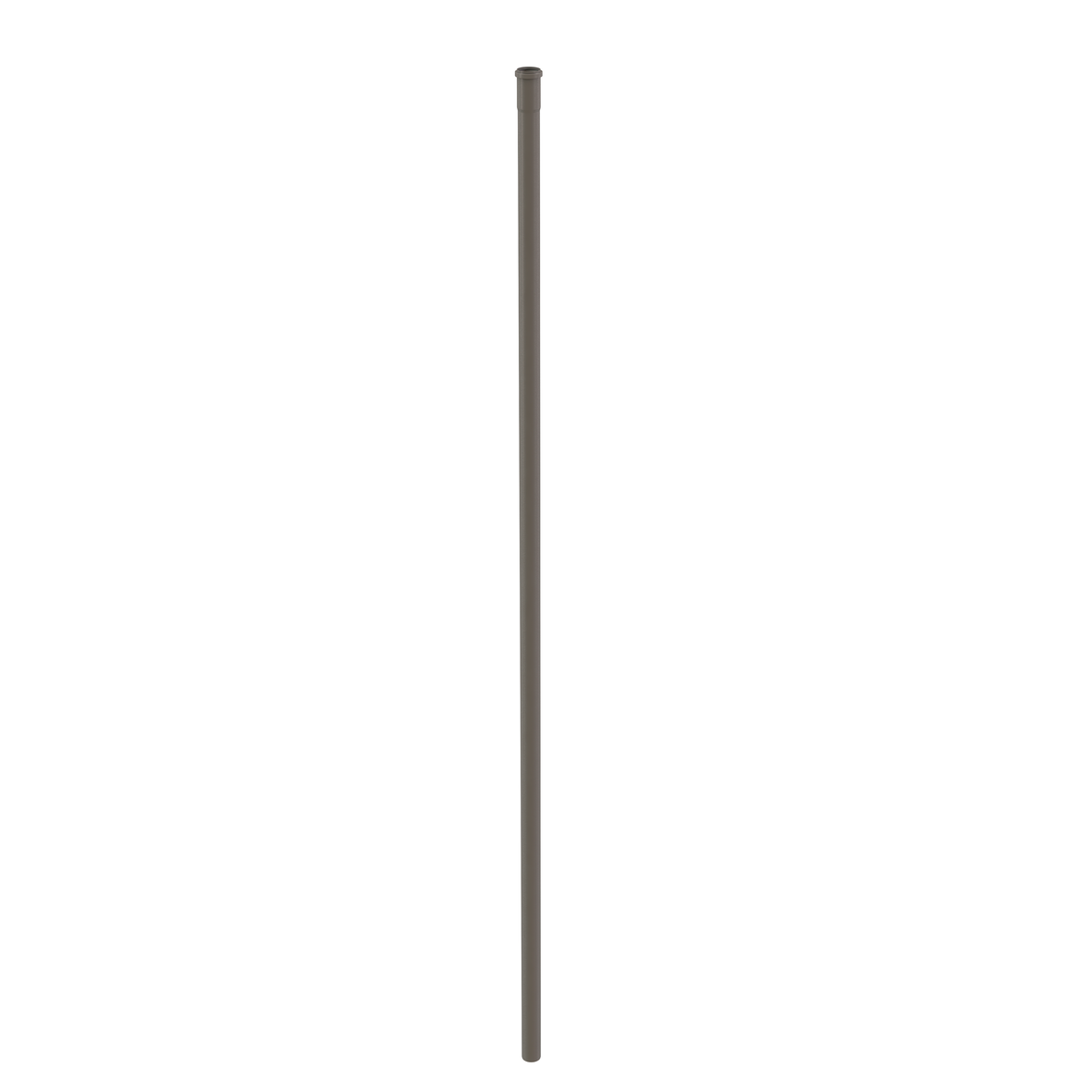

Centrotherm 250400102290 InnoFlue ISVL033 Vent Length 40.2 in

Product Description

The Centrotherm 250400102290 InnoFlue ISVL033 is a rigid vent length constructed from polypropylene. Engineered to withstand flue gas temperatures up to 230°F (110°C). These vent lengths provide an environmentally friendly venting solution that installs quickly. They feature dedicated male and female ends, with male ends that can be field cut to length.

• Gasketed rigid polypropylene vent lengths with dedicated male and female ends.
• Male ends can be field cut to length.
• Evaluated to UL1738 and ULCS636 by ICC.

Product Highlights

The InnoFlue vent lengths are thin-wall and lightweight combining performance and durability. Integrated gasket assures airtight seal without glues, primers, or solvents.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: 250400102290
• Country of Origin: United States

Technical Specifications

• Diameter: 3 in ID x 3.8 in OD
• Length: 40.2 In
• Material: Polypropylene
• MPN: 250400102290
• Manufacturer: Centrotherm
• Finish: Gray
• Model: Centrotherm ISVL033
• Brand: Centrotherm
• Country of Origin: United States
• Condition: Open box
• Product Name: 3" x 36" Vent Length
• Trade name: InnoFlue
• GTIN: 0815010010624
• Part number: 250400102290
• System type: Single wall
• Length gross: 1023 mm / 40.3 inch
• Height: 94 mm / 3.7 inch
• Width: 94 mm / 3.7 inch
• Net weight: 0.475 kg / 1 lbs
• Intrastat: 3917220000
• Base unit packaging: Unpacked
• Packaging / Trade length: 1023 mm / 40.3 inch
• Packaging / Trade height: 94 mm / 3.7 inch
• Number per packaging: 1
• Gross weight: 0.475 kg / 1 lbs
• Packaging / Trade width: 94 mm / 3.7 inch
• Certificates (US/CAN): UL 1738 – ICC-ES / ULC S636 – ICC-ES
• Item Weight: 1 lb.
• Item Dimensions: L 40.3 x W 3.7 x H 3.7 (in.)
