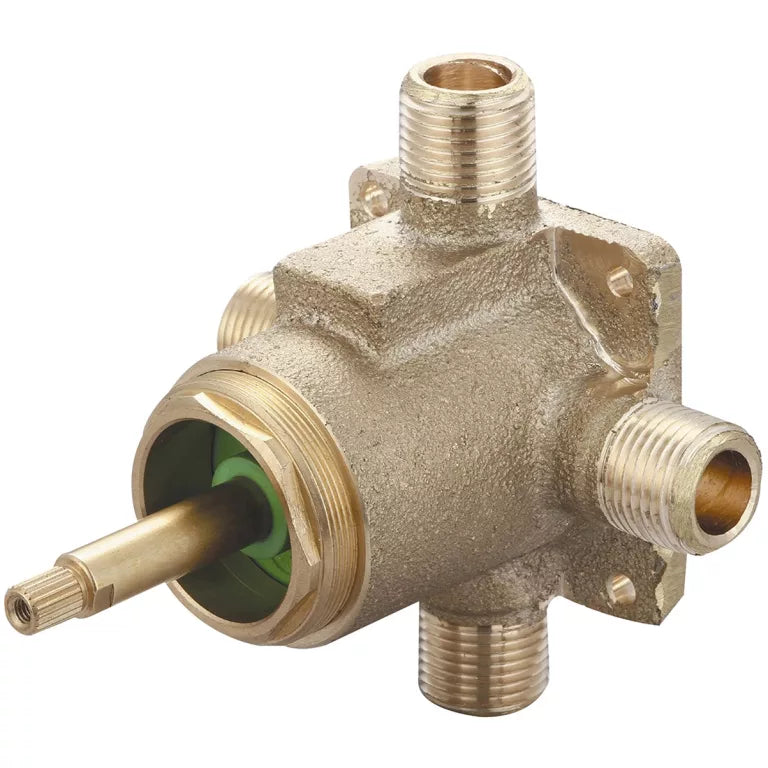

Central Brass 4100b Three Way Diverter Valve Set

Product Description

The CENTRAL BRASS 4100b is a single-handle, three-way diverter valve set designed for commercial plumbing applications requiring reliable flow direction control. Built with a ceramic disc cartridge for long-term durability, this valve set accepts both CXC (compression) and IPS (iron pipe size) connections, giving installers flexibility in rough-in configurations. The rough brass finish is suited for concealed or utility installations where appearance is secondary to function. Wall-mount installation keeps the valve accessible for service without requiring in-slab or behind-wall access once the trim is set.

This diverter valve set is intended for commercial-style wall-mount installations where a single handle must direct flow between multiple outlets. The combination NPT-Male and CXC connection type accommodates common copper and threaded pipe runs found in commercial service environments. The 1/2-inch connection size aligns with standard supply line sizing used in most commercial and light industrial plumbing systems. Licensed plumbers installing multi-outlet shower systems, utility stations, or service sinks will find this a straightforward rough-in component.

Key Features

• Three-way diverter valve allows flow direction control from a single handle
• Ceramic disc cartridge provides reliable shutoff and extended service life
• Accepts both CXC (compression) and IPS connections for installation flexibility
• NPT-Male outlet connection compatible with standard threaded pipe fittings
• Rough brass finish suited for concealed or utility-grade installations
• Wall-mount design for accessible rough-in in commercial plumbing configurations

Compatibility

Designed as an OEM-style replacement or new-installation component for commercial wall-mount plumbing systems using 1/2-inch NPT-Male and CXC supply connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and relieve line pressure before beginning any connection work. Use thread sealant tape on all NPT-Male connections and verify compression fittings are properly seated before pressurizing the line. Do not overtighten the ceramic disc cartridge assembly, as excess torque can crack the disc seat.

Technical Specifications

• Connection Type: NPT-Male/CXC
• Connection Size: 1/2 inches
• Finish: Rough Brass
• Installation Type: Wall Mount
• Style: Commercial
• Cartridge Type: Ceramic Disc
• Proposition 65 Warning: Yes

Standard Information

• Brand: CENTRAL BRASS
• Manufacturer Part Number: 4100b
