Centaur WIMUF-50 1/2 UF Connector

Product Description

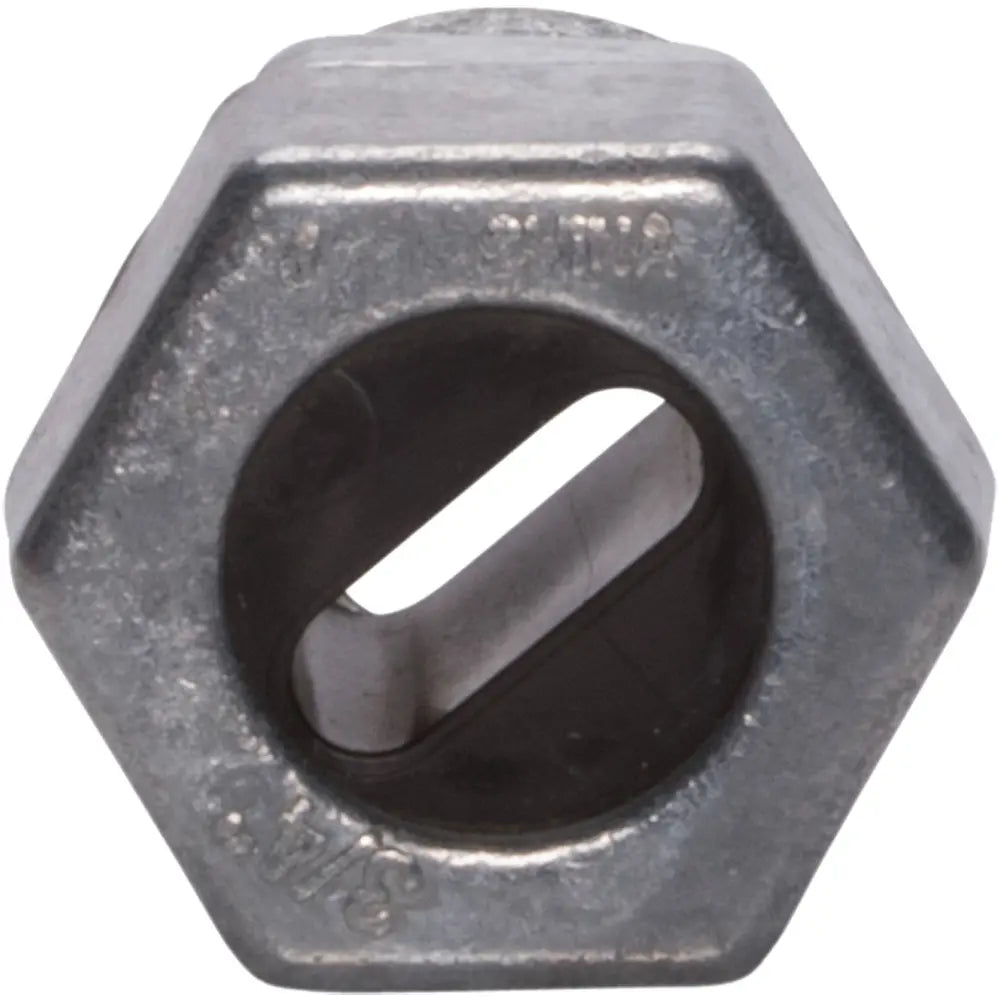

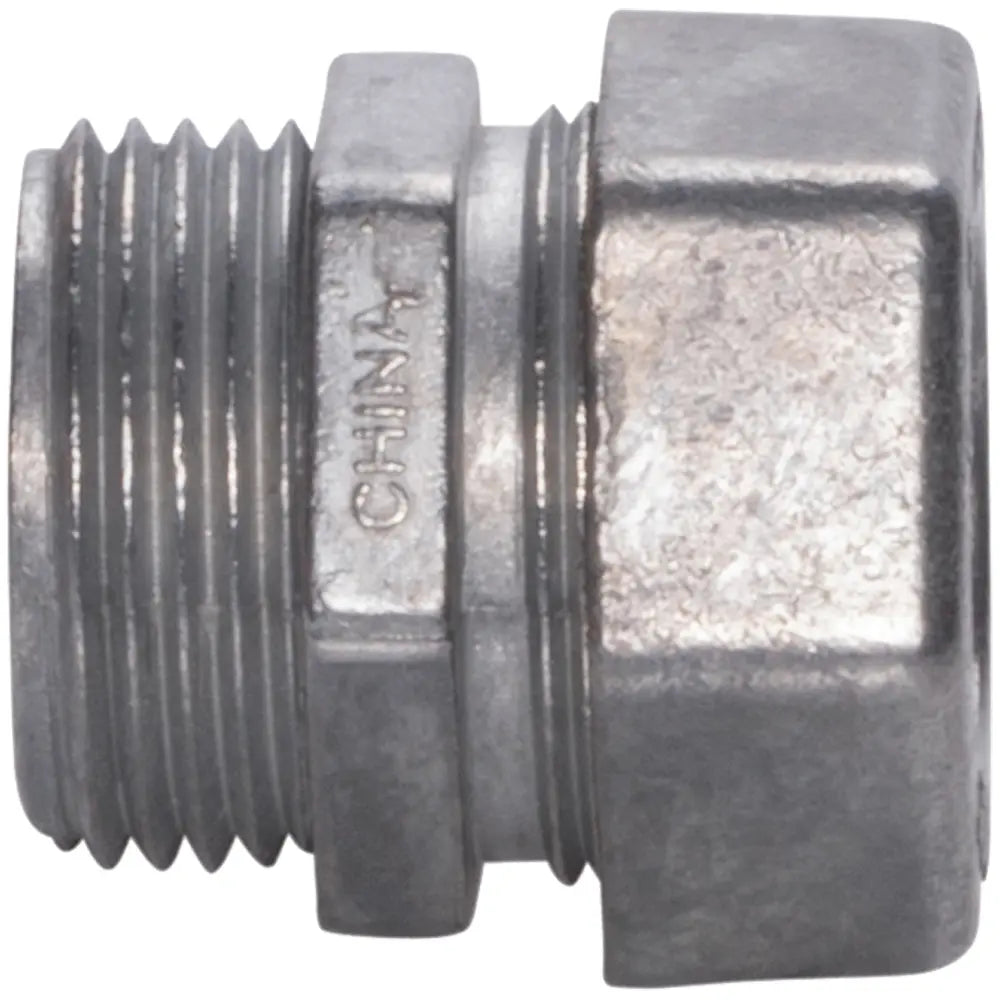

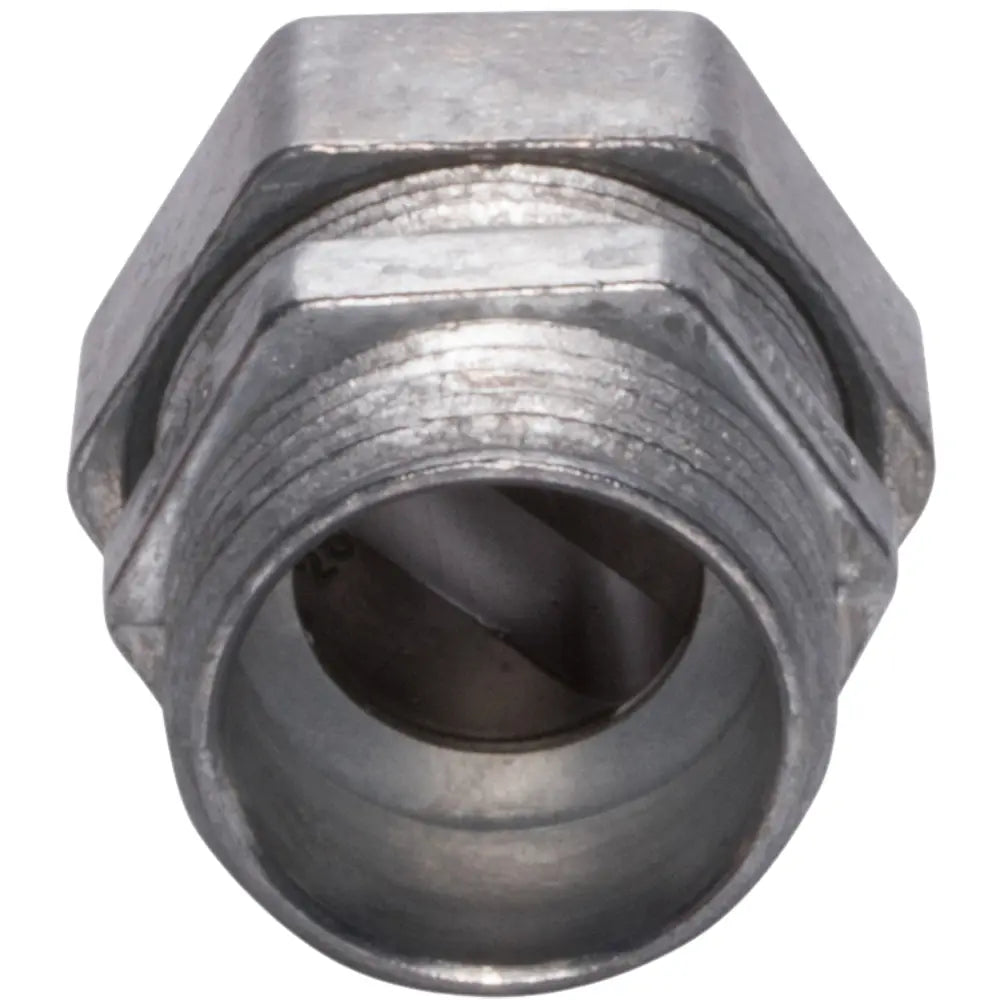

The Centaur WI MUF-50 1/2 UF Connector is a reliable zinc die-cast connector, designed for rod-size conductors from fourteen three to ten two AWG. It measures 0.5 inches in size, with a length of 0.75 inches and a width of 1.25 inches. This connector is approved for use in dry locations and complies with UL standards. Part of the WIMUF series, it is notable for its absence of insulation and mounting holes.

• Suitable for rod-size conductors ranging from 14/3 to 10/2 AWG
• Meets UL standards for safety and compliance
• Designed for use in dry locations

Product Highlights

This connector is perfect for electrical installations requiring metallic strain relief without insulation. Its durable construction ensures long-lasting performance.

Product Information

Standard Information

• Brand: Centaur
• Manufacturer: Centaur

Technical Specifications

• MPN: WIMUF-50
• Size: 0.5 inches
• Type: Metallic Strain Relief
• Width: 1.25 inches
• Length: 0.75 inches
• Weight: 0.087 pounds
• Material: Die Cast Zinc
• Finish: Zinc Die Cast
• Conductor Range: 14/3 to 10/2 AWG
• Temperature Rating: 194°F
• Environmental Conditions: Dry Location
• Number Of Mounting Holes: 0
• Standard: UL
• Country of Origin: CN
