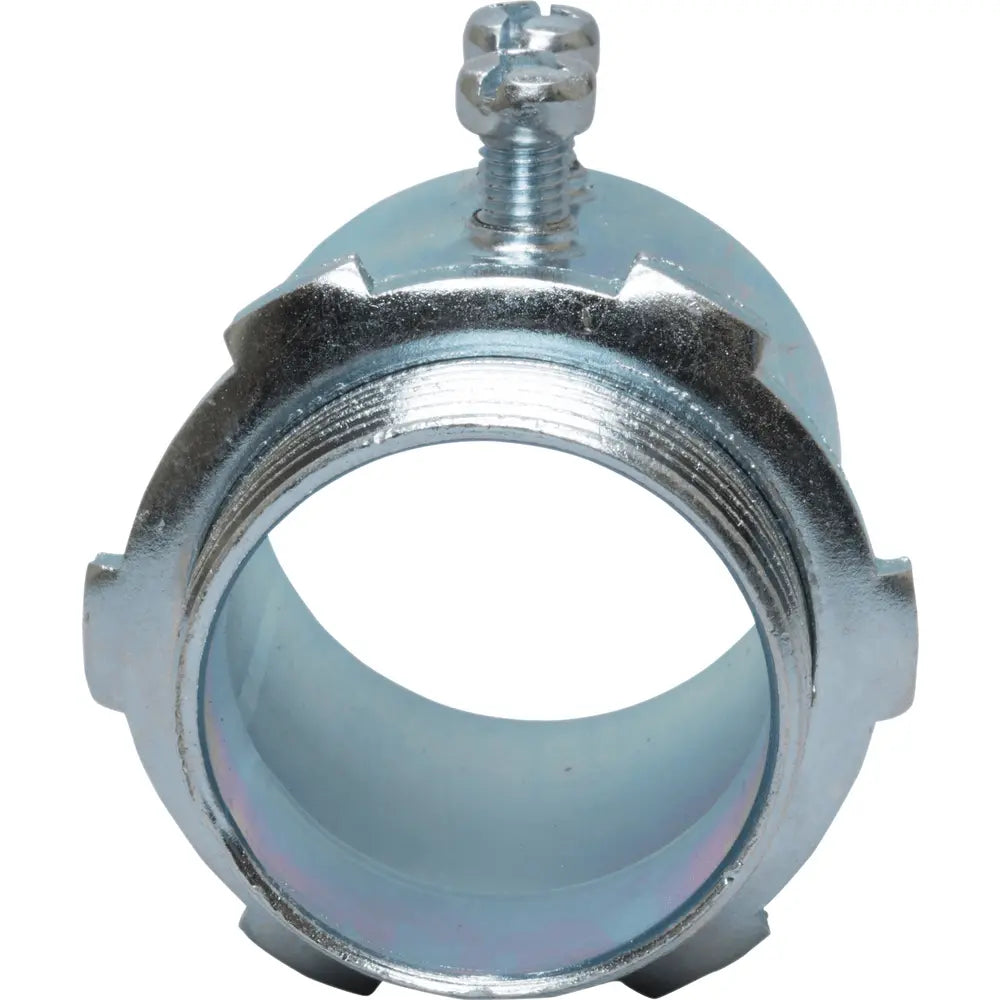

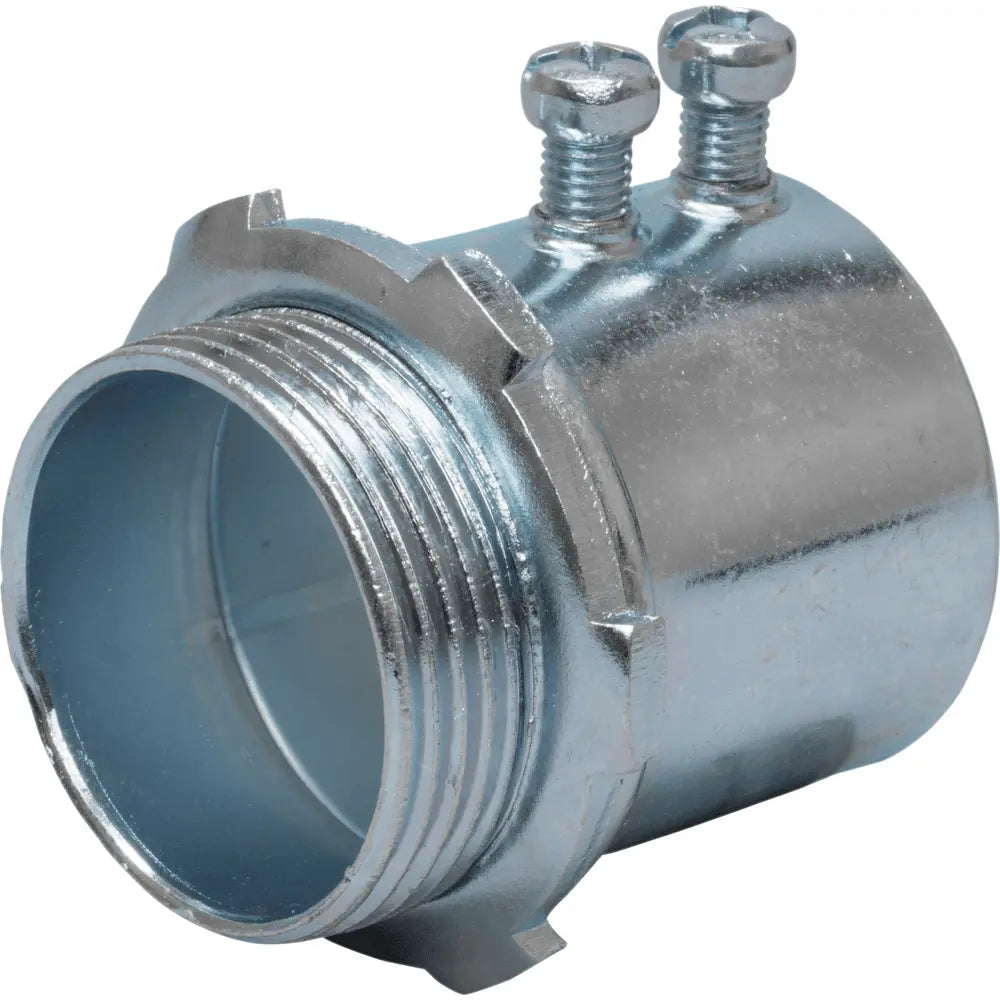

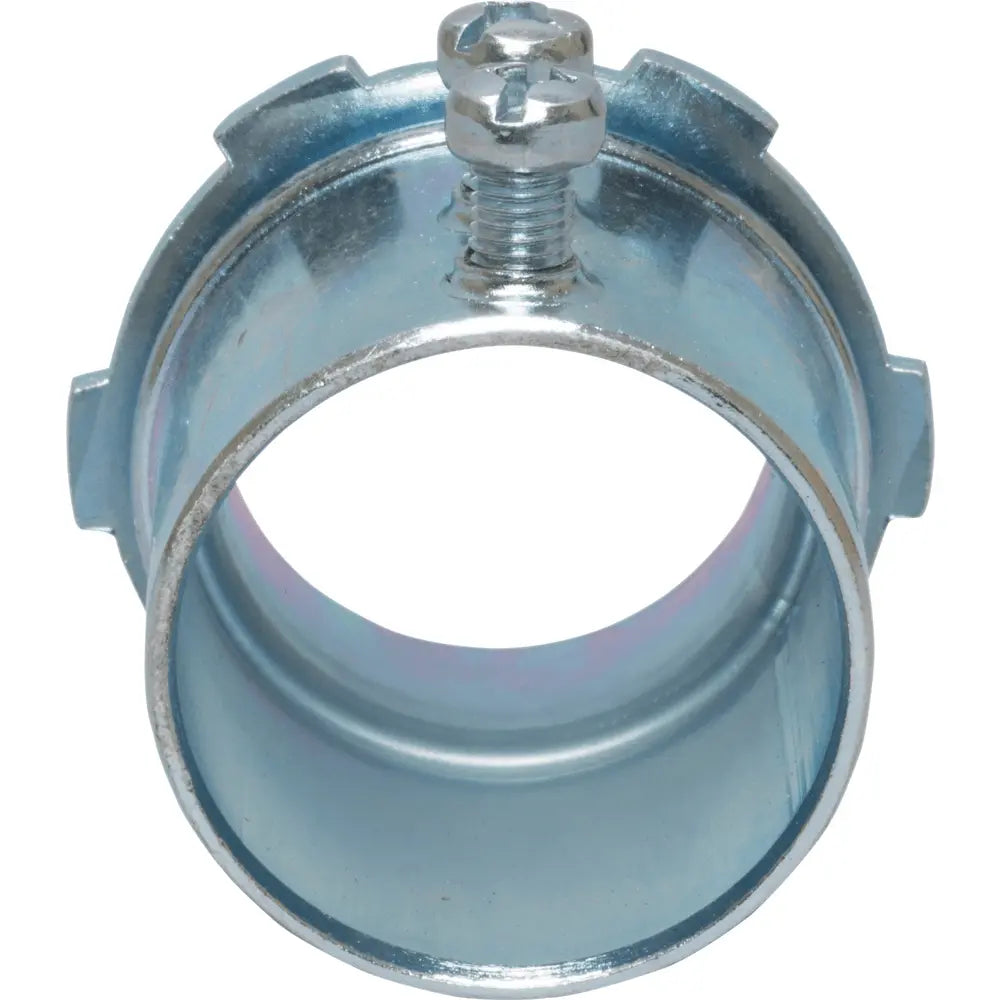

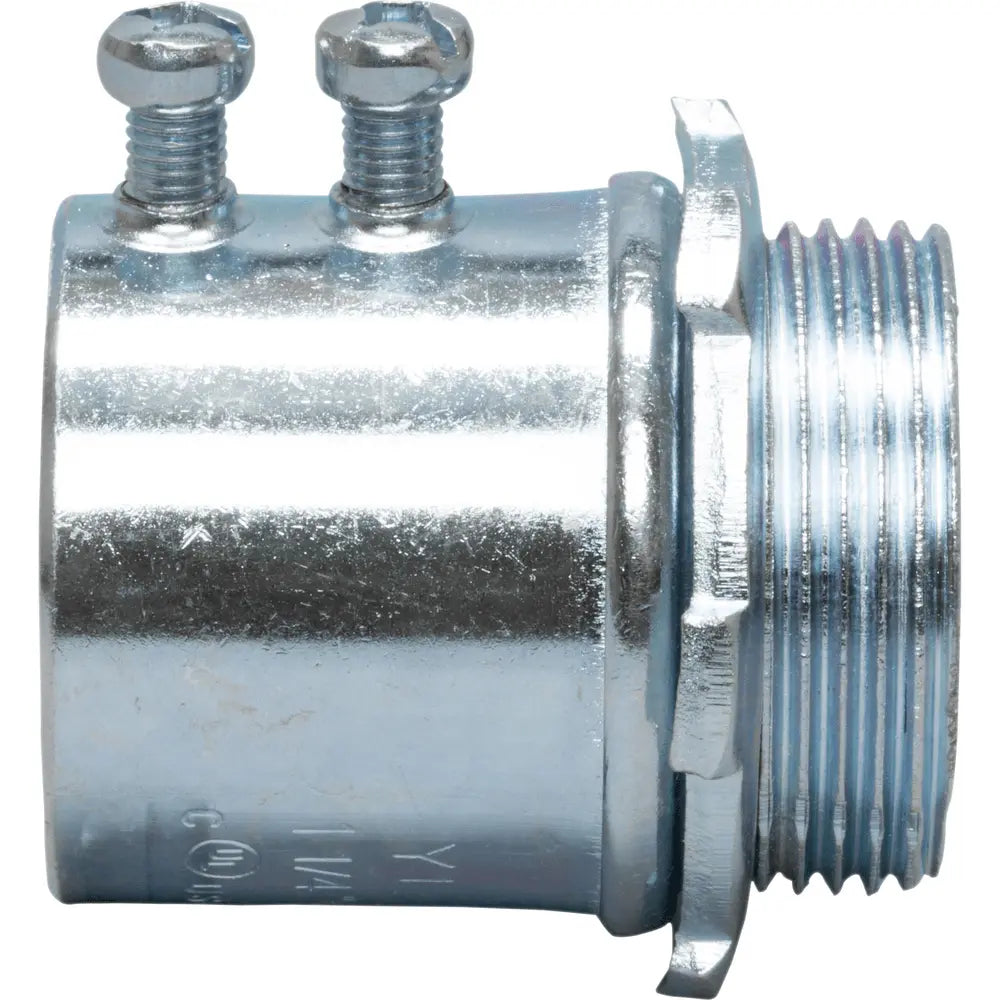

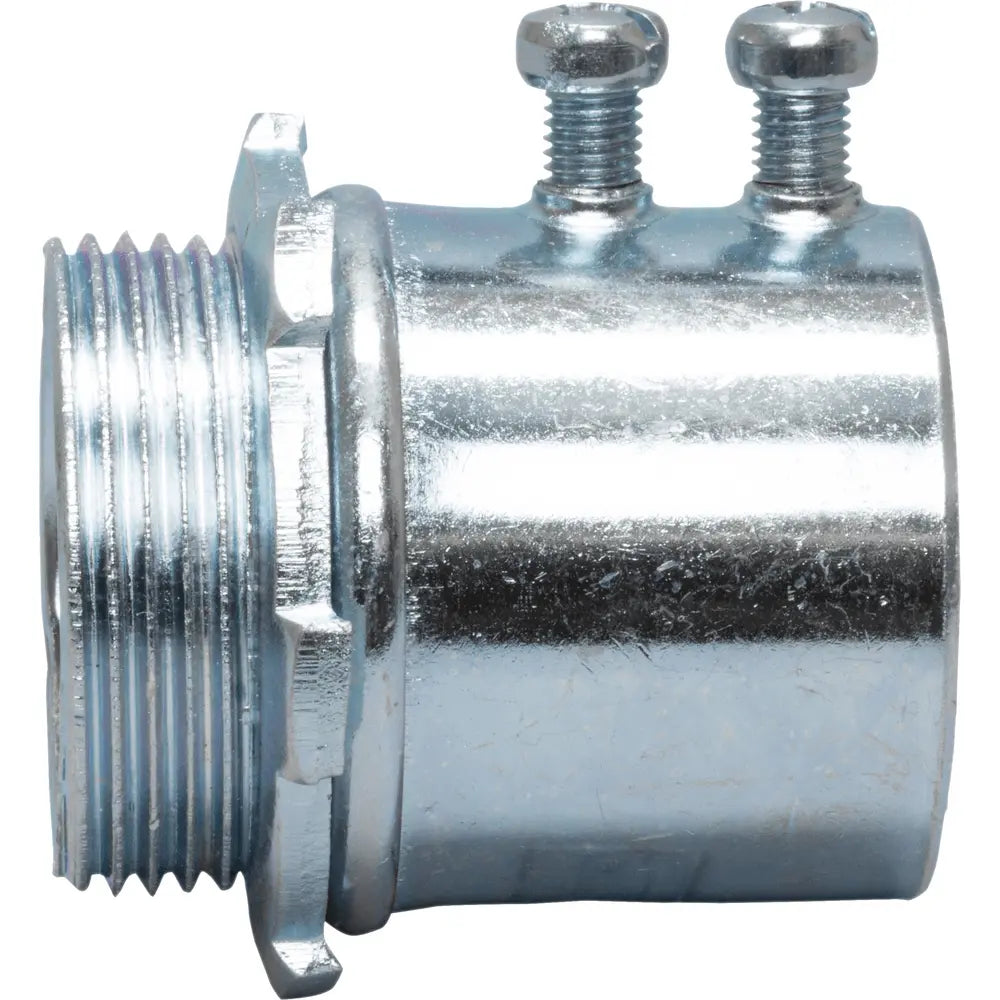

Centaur WIMES-753 1-1/4 Steel Set Screw Connector

Product Description

The Centaur WIMES-753 1-1/4 Steel Set Screw Connector is used for joining conduit to boxes. It is constructed from steel and has a zinc electroplated finish. This connector provides a concrete-tight seal when taped and is rated for applications above 600 volts. It features both a threaded and set screw connection and is UL listed for safety and reliability. The connector has a temperature rating of one hundred five degrees Celsius and measures two point two five inches in length. It is part of the WIMES75 series, suitable for use with Rigid and IMC conduits, and is available in sizes from two and a half inches to four inches.

• Made from steel with a zinc electroplated finish.
• Concrete-tight connections for secure installations.
• UL listed and rated for use in high voltage applications.

Product Highlights

This connector is essential for safe and effective conduit installations in commercial and residential settings.

Product Information

Standard Information

• Brand: Centaur
• MPN: WIMES-753

Technical Specifications

• UPC: 190010266661
• Type: Set-Screw - EMT Connectors
• Color: Silver
• Length: 2.25 inches
• Weight: 0.302 pounds
• Material: Steel
• Finish: Zinc Electroplated
• Standard: UL Listed
• Insulated: No
• Connection: Set Screw
• Stock Code: 0285-3003
