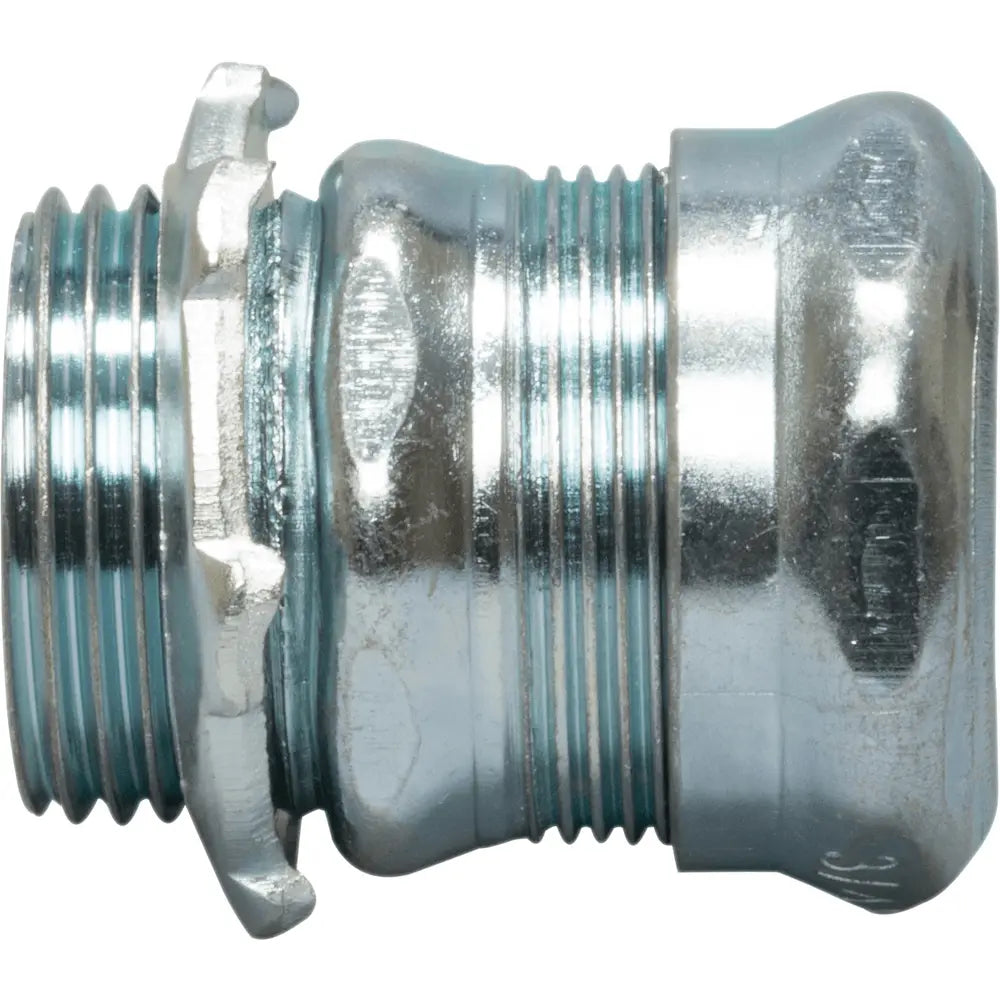

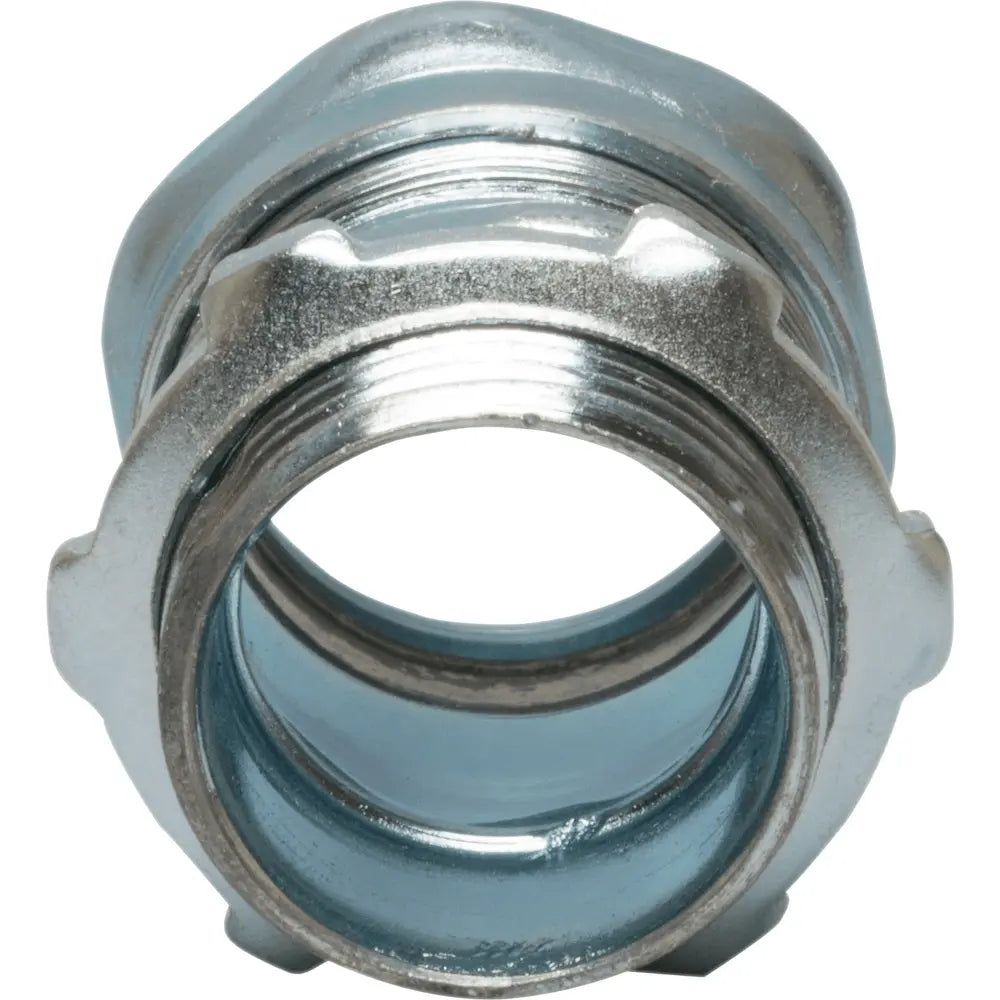

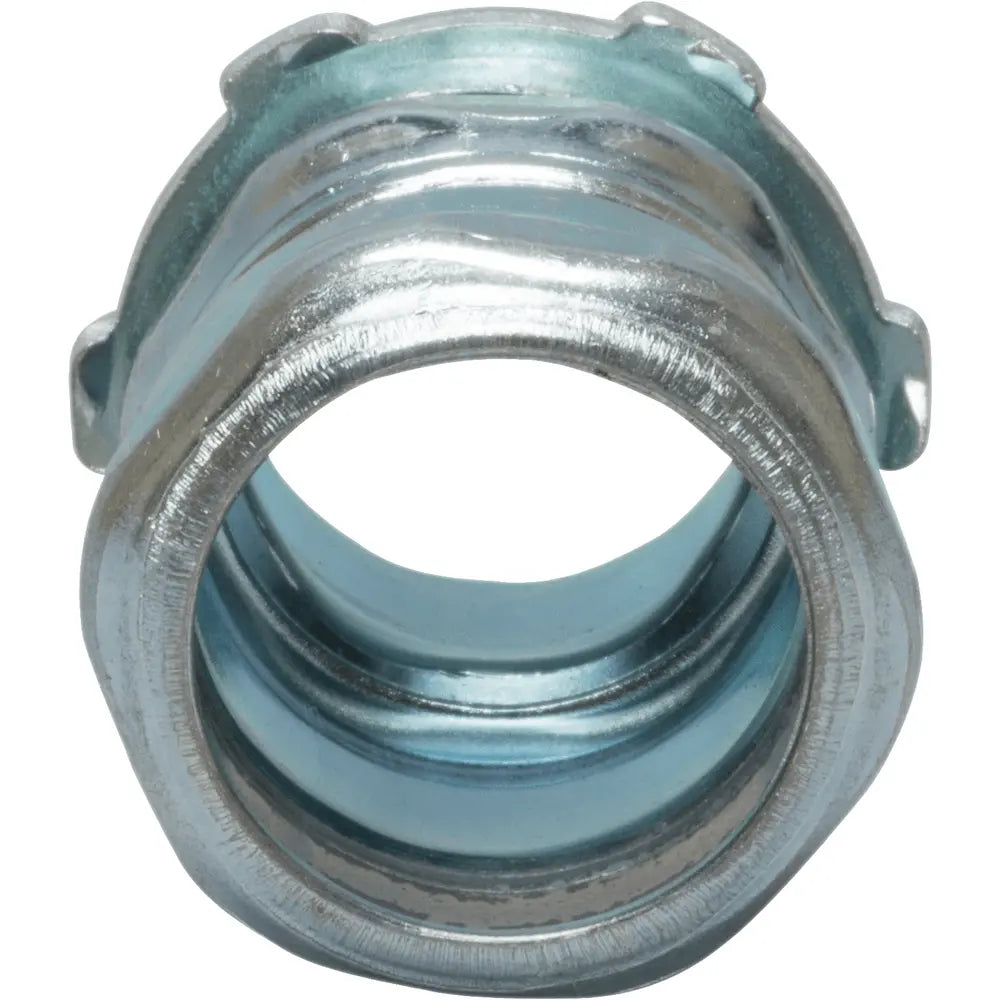

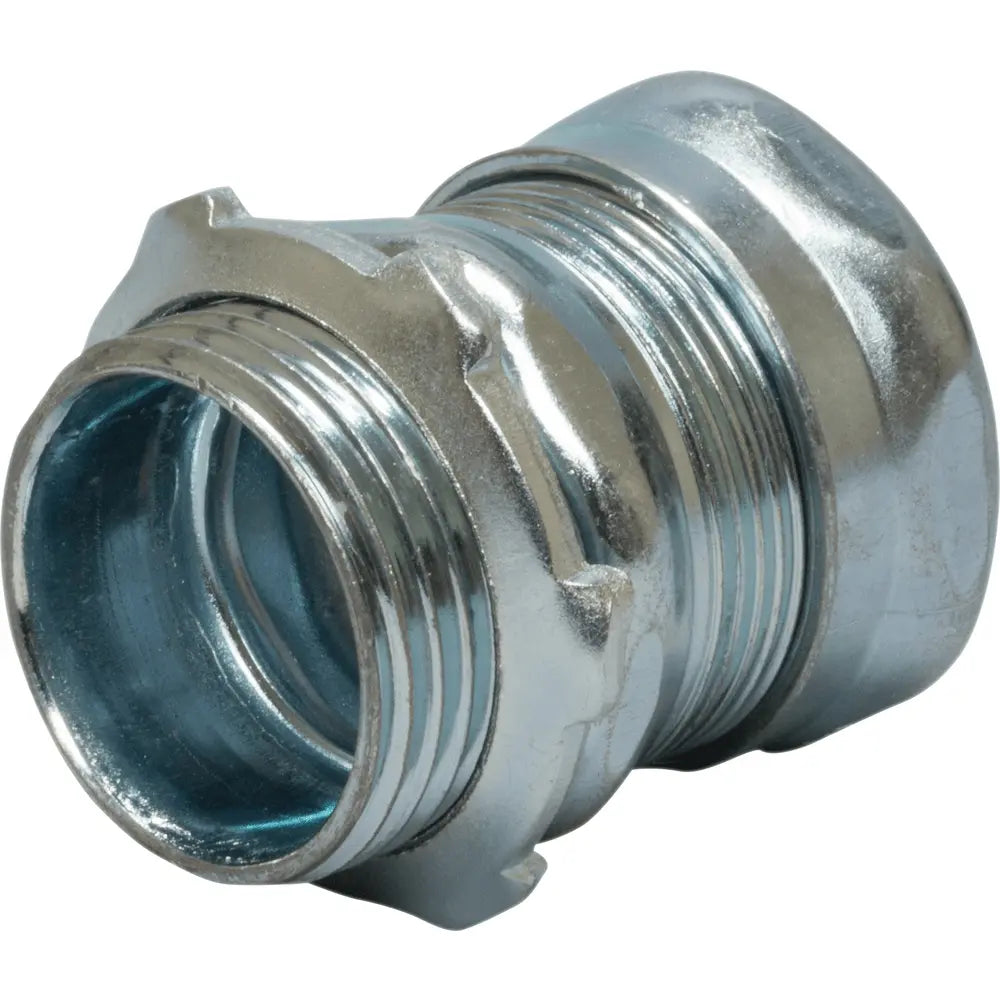

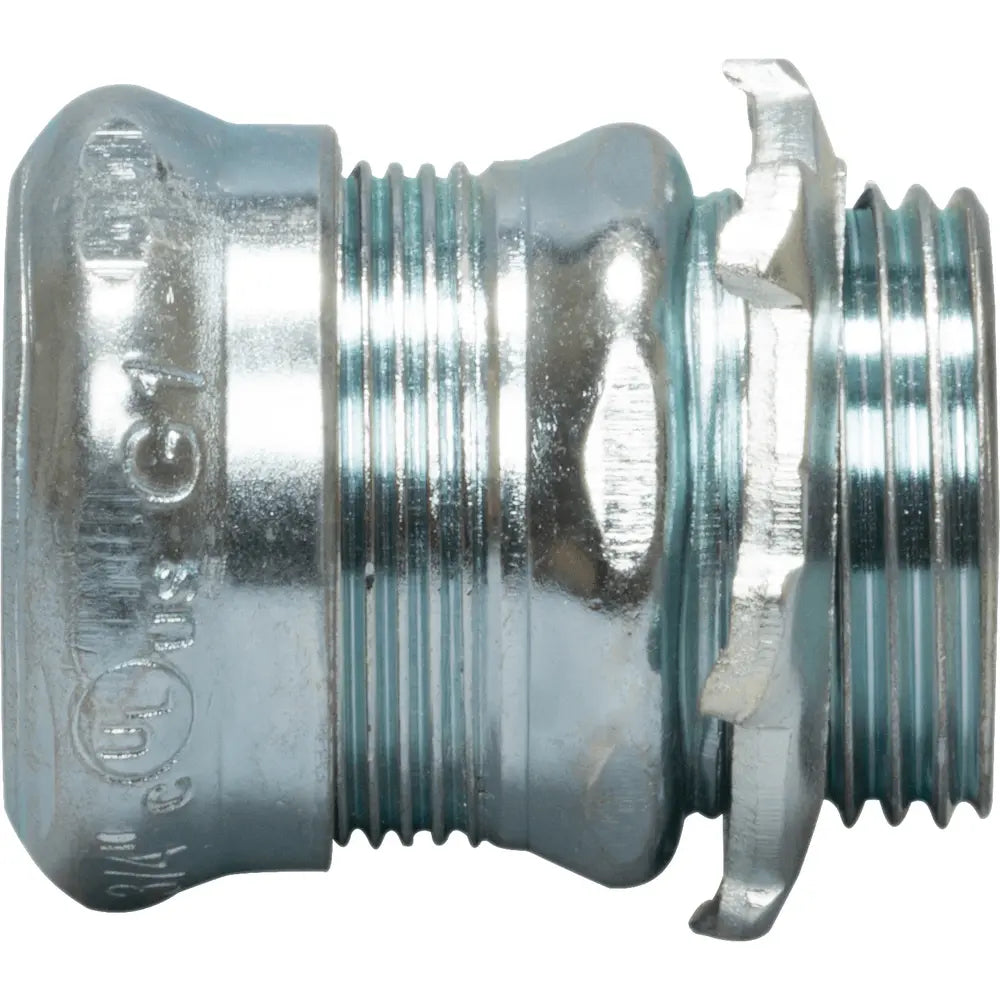

Centaur WIMEC-751 EMT Steel Compression Connector

Product Description

The Centaur WIMEC-751 is a compression connector for EMT conduit designed to create secure electrical connections. This connector features a diameter of one point five six three inches and a length of one point eight one three inches. It is suitable for applications exceeding six hundred volts and ensures a concrete-tight seal. A steel locknut provides added security and compliance with UL standards for dry locations.

• Diameter: 1.563 inches
• Length: 1.813 inches
• Material: Steel with zinc plating for durability

Product Highlights

The WIMEC-751 is ideal for threaded mounting within EMT systems and suitable for various electrical applications, including conduit run strategies.

Product Information

Standard Information

• Brand: Centaur
• MPN: WIMEC-751

Technical Specifications

• UPC: 190010266555
• Finish: Zinc Plated
• Weight: 0.126 pounds
• Mounting: Threaded
• Type: Compression - EMT Connectors
• Insulated: No
• Connection: Compression
• Trade Size: 3/4 in.
• Country of Origin: CN
• Environmental Conditions: Wet/Dry Location
