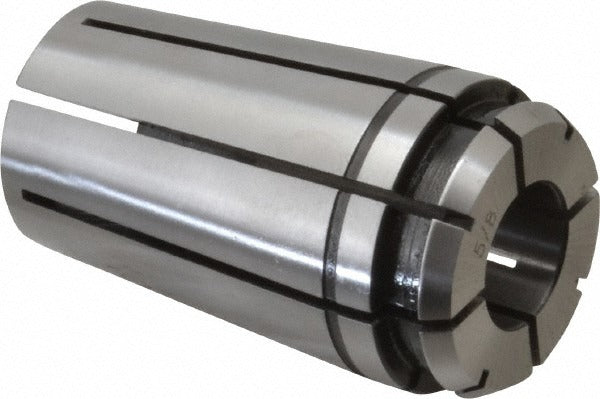

Centaur 70035 Tg Pg 100 Standard Single Angle Collet 5/8

Product Description

The CENTAUR 70035 is a standard single angle collet designed for use in TG/PG 100 collet chucks and toolholding systems. It accepts a 0.625-inch (5/8-inch) shank diameter and delivers a total indicator runout (TIR) of 0.0005 inches, making it suitable for precision machining applications where concentricity is critical. The collet measures 2.38 inches overall length with a maximum body diameter of 1.38 inches. It is installed and serviced by machinists, tool crib technicians, and CNC setup personnel working with TG/PG 100 toolholding systems on mills, lathes, and machining centers.

This collet is intended for use in TG/PG 100 series collet chucks found in production machining environments, both light-duty and heavy-duty applications. The 5/8-inch bore size accommodates standard round-shank tooling such as end mills, drills, and reamers of that diameter. Its single angle design is consistent with the TG/PG 100 system standard and provides secure clamping across the full contact surface of the collet bore.

Key Features

• TG/PG 100 collet series for use with compatible 100-size collet chucks
• 0.625-inch (5/8-inch) bore capacity for standard round-shank tooling
• 0.0005-inch TIR for precision concentricity in machining operations
• 1.38-inch maximum body diameter fits TG/PG 100 chuck bore
• 2.38-inch overall length provides full engagement within the chuck
• Standard single angle design for consistent clamping force and tool retention

Compatibility

Designed for use with TG/PG 100 series collet chucks that accept standard single angle collets with a 1.38-inch body diameter and a 5/8-inch bore.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Always power down and lock out the machine spindle before inserting or removing collets. Inspect the collet bore and chuck taper for debris or damage before seating the collet. Follow the toolholder manufacturer torque and clamping guidelines when tightening the drawbar or collet nut.
