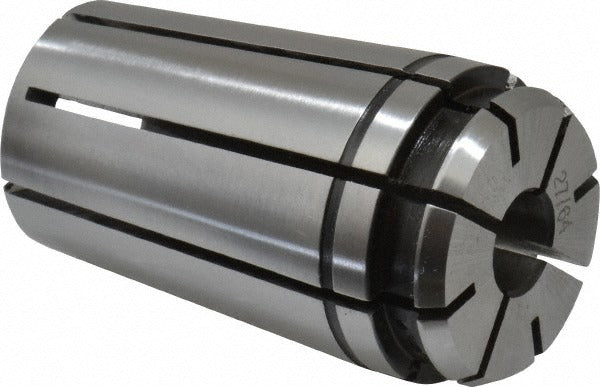

Centaur 70022 Tg Pg 100 Single Angle Collet 0.4219 in

Product Description

The CENTAUR 70022 is a standard single angle collet designed for use with TG/PG 100 tooling systems. It accepts a 0.4219 inch (27/64 inch) shank and delivers a total indicator runout (TIR) of 0.0005 inches, making it suitable for precision machining applications where concentricity matters. The collet measures 2.38 inches in overall length with a maximum body diameter of 1.38 inches. It is installed by machinists and toolroom technicians working with TG/PG 100 collet chucks on mills, lathes, or machining centers where repeatable tool holding is required.

This collet is used in machine shop environments — both job shop and production settings — wherever TG/PG 100 collet chucks are in service. It is suited for holding round shank cutting tools, drills, reamers, and end mills at the specified 27/64 inch diameter. The standard single angle configuration is the most common style for general-purpose tool holding in this collet series.

Key Features

• TG/PG 100 collet series — compatible with TG/PG 100 collet chucks
• 0.4219 inch (27/64 inch) collet size for round shank tooling
• 0.0005 inch TIR for precision runout control
• 1.38 inch maximum body diameter
• 2.38 inches overall length
• Standard single angle design for general-purpose tool holding

Compatibility

Designed for use with TG/PG 100 collet chuck systems. Accepts 0.4219 inch (27/64 inch) round shank tooling. Confirm chuck series and collet bore size before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. De-energize and lock out the machine spindle before inserting or removing collets. Inspect the collet bore and chuck taper for chips, burrs, or wear before seating the collet. Do not exceed the rated clamping torque range specified by the chuck manufacturer for TG/PG 100 toolholders.
