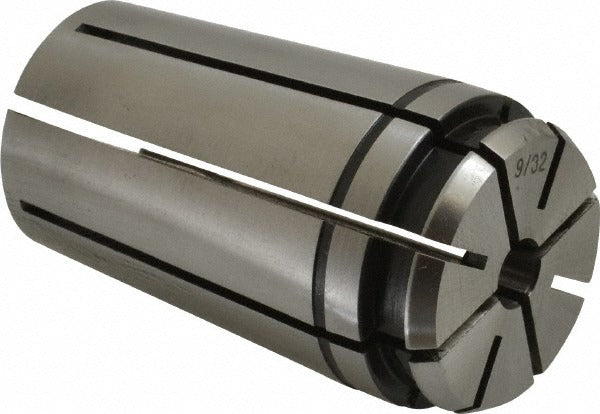

Centaur 70013 Tg/pg 100 Single Angle Collet 0.2813 in

Product Description

The CENTAUR 70013 is a standard single angle collet designed for use in TG/PG 100 collet chucks and toolholding systems. It accepts a 0.2813 inch (9/32 inch) round shank tool and provides a maximum total indicator runout (TIR) of 0.0005 inches, making it suitable for precision machining operations where consistent tool concentricity is required. The collet measures 1.38 inches in body diameter and 2.38 inches overall length. It is installed and serviced by machinists and CNC setup technicians working with TG100 or PG100 toolholding systems on mills, machining centers, and similar equipment.

This collet fits standard TG/PG 100 series toolholding systems used in both vertical and horizontal machining center applications. The 9/32 inch bore size is commonly used with drill shanks, end mills, and other round-shank cutting tools of matching diameter. It is a direct-fit, OEM-style replacement or supplementary collet for shops running TG100 or PG100 collet chucks in production or job-shop environments.

Key Features

• TG/PG 100 collet series for broad compatibility with standard TG100 and PG100 chucks
• 0.2813 inch (9/32 inch) bore diameter for direct shank engagement
• 0.0005 inch maximum TIR for precise tool concentricity
• 1.38 inch maximum body diameter fits standard TG/PG 100 chuck bores
• 2.38 inch overall length provides adequate tool projection and grip length

Compatibility

Designed for use with TG/PG 100 series collet chucks and toolholding systems accepting a 0.2813 inch bore collet.

Installation Notes

Installation is performed by qualified machinists or CNC setup personnel. Always de-energize and lock out the machine spindle before installing or removing collets. Inspect the collet bore and chuck taper for chips, burrs, or wear before assembly. Do not exceed the toolholder manufacturer's recommended clamping torque specifications for the TG/PG 100 series chuck nut.
