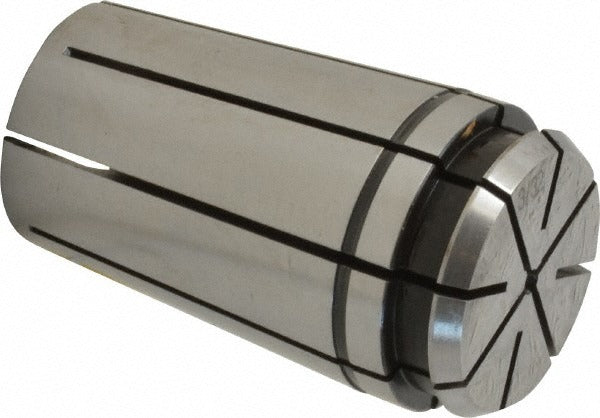

Centaur 70001 Tg/pg 100 Standard Single Angle Collet 3/32

Product Description

The CENTAUR 70001 is a standard single angle collet in the TG/PG 100 series, designed for precision tool holding in CNC machining and manual milling applications. It accepts a 0.0938-inch (3/32 inch) tool shank and maintains a total indicator runout (TIR) of 0.0005 inches, making it suitable for work where concentricity and repeatability are critical. The collet measures 1.38 inches in body diameter and 2.38 inches in overall length. Machinists, toolroom technicians, and CNC setup personnel install this collet into compatible TG/PG 100 collet chucks as part of standard tooling changeouts.

This collet fits TG/PG 100 series collet chuck systems and is appropriate for both production and toolroom environments where consistent grip and low runout are required. Typical applications include end milling, drilling, and reaming operations using 3/32-inch shank tooling. The standard single angle design provides reliable clamping force and straightforward installation into any TG/PG 100-compatible chuck body in light to medium-duty machining setups.

Key Features

• TG/PG 100 series collet — fits standard TG/PG 100 chuck bodies
• 0.0938-inch (3/32 inch) bore accepts matching shank tooling
• 0.0005-inch TIR for precise concentricity and reduced tool runout
• 1.38-inch maximum body diameter for proper chuck fitment
• 2.38-inch overall length suits typical TG/PG 100 chuck depth requirements
• Standard single angle design for straightforward installation and removal

Compatibility

Designed for use with TG/PG 100 series collet chuck systems accepting standard single angle collets with a 0.0938-inch bore.

Installation Notes

Installation is performed by machinists or toolroom technicians following standard collet chuck procedures. Before installing or removing a collet, confirm the machine spindle is fully stopped and all energy sources are locked out per shop safety protocols. Use the appropriate collet nut wrench for the TG/PG 100 chuck; do not use pipe wrenches or improvised tools that could damage the collet or nut seating surfaces. Inspect the collet bore and chuck taper for chips or debris before seating to protect TIR performance.
