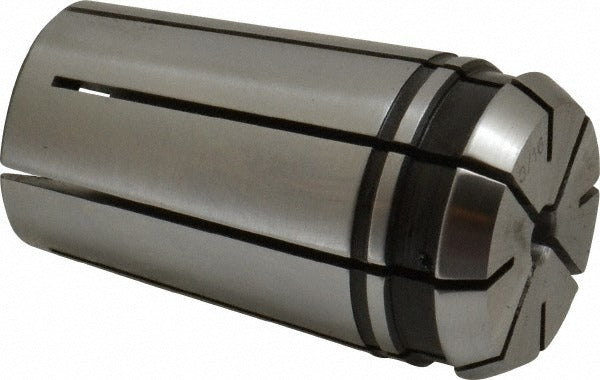

Centaur 50007 Tg/pg 75 Standard Single Angle Collet 3/16

Product Description

The CENTAUR 50007 is a standard single angle collet designed for use in TG/PG 75 collet chucks. It accepts tooling with a 0.1875-inch (3/16 inch) bore diameter and delivers a total indicated runout (TIR) of 0.0005 inches, making it suitable for precision machining applications where concentricity matters. With a maximum body diameter of 1.06 inches and an overall length of 1.84 inches, this collet fits within the dimensional envelope expected by TG/PG 75 toolholding systems. It is typically installed by machinists and toolroom technicians in CNC and manual machining environments.

This collet is used in milling, drilling, and tapping operations where TG/PG 75 collet chucks are employed. Its standard single angle design makes it a direct fit for conventional TG 75 and PG 75 toolholding setups found in production and job-shop machining environments. The 3/16-inch bore accommodates round-shank cutting tools, drill bits, and similar tooling of that diameter.

Key Features

• TG/PG 75 collet series for use with compatible 75-size chucks
• 0.1875-inch (3/16 inch) bore diameter for standard round-shank tooling
• TIR of 0.0005 inches for consistent concentricity in precision applications
• Maximum body diameter of 1.06 inches to fit TG/PG 75 chuck specifications
• Overall length of 1.84 inches for standard toolholding depth

Compatibility

Designed as an OEM-style replacement and standard fit for TG/PG 75 collet chuck systems accepting 0.1875-inch bore collets.

Installation Notes

This collet is installed and serviced by machinists or toolroom personnel. Before installing or removing the collet, ensure the spindle is fully stopped and the machine is powered down. Use the appropriate collet wrench or chuck key for the TG/PG 75 system to seat and secure the collet properly. Inspect the collet bore and chuck taper for chips or debris before assembly to maintain rated TIR performance.
