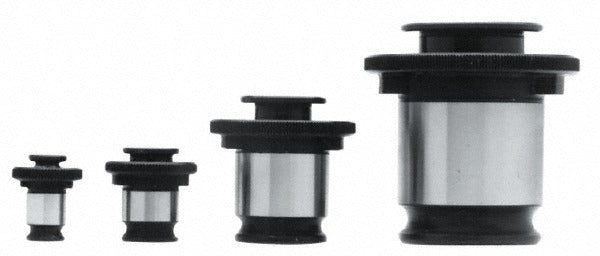

Centaur 000012 Tapping Adapter No. 12 Tap No. 0 Adapter

Product Description

The CENTAUR 000012 is a quick-change tapping adapter designed to hold No. 12 taps in a No. 0 adapter body. It fits into compatible quick-change tap holders and transmits torque from the spindle to the tap shank. The adapter accepts a tap shank diameter of 0.22 inches and features an outside shank diameter of 0.51 inches. With a flange diameter of 0.87 inches and a tap depth of 0.87 inches, this adapter is sized for precision tapping work on small-diameter threads. Machinists and toolroom technicians install this type of adapter in CNC machining centers, drill presses, and tapping machines where repeatable tap changes are required.

This adapter is suited for light-duty tapping applications where No. 12 tap sizes are common, such as threading small fastener holes in metal fabrication, tool and die work, and production machining. The CWE0 series designation identifies the adapter body style and ensures proper fit within the corresponding quick-change tooling system. Coolant-through capability is not included in this model, making it appropriate for dry or flood-coolant external applications. It is sold individually as a single unit.

Key Features

• Quick-change design allows rapid tap swaps without removing the holder from the spindle
• Tap shank diameter of 0.22 inches accommodates standard No. 12 tap shanks
• Outside shank diameter of 0.51 inches for secure seating in the adapter body
• Flange diameter of 0.87 inches provides positive axial location
• Tap depth of 0.87 inches ensures full shank engagement
• CWE0 series for compatibility within that quick-change tooling family

Compatibility

Designed for use within the CWE0 series quick-change tapping system. Accepts No. 12 taps with a 0.22-inch shank diameter. Verify series and shank diameter match before ordering.

Installation Notes

Installation is performed by machinists or toolroom technicians familiar with quick-change tapping systems. Ensure the machine spindle is fully stopped and locked out before changing or seating the adapter. Confirm the tap shank seats fully to the specified tap depth before beginning a tapping cycle. Do not exceed the torque rating of the quick-change system when running production tap cycles.
