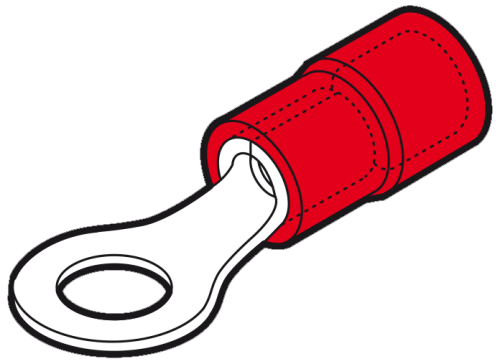

Cembre RF-M5 Ring Terminal

Product Description

The CEMBRE RF-M5 is a ring terminal used to connect, terminate, and crimp low voltage cables. These F-series terminals are made from electrolytic copper strip of more than 99.9% purity. Connectors are easier to compress and more resistant to mechanical stress. The hole/stud size of this product is 5mm.

• F-series terminals are made from electrolytic copper strip of more than 99.9% purity.
• Connectors are easier to compress and more resistant to mechanical stress due to the annealing and electrolytic tinning process.
• The internal knurling of the collar improves contact with the conductor by increasing the overall traction resistance.

Product Highlights

The RF-M5 ring terminals guarantee the copper conductor strands are completely inserted into the terminal barrel creating a secure and reliable electrical connection. The internal surface of the cable terminal barrel is rifled to improve contact.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: RF-M5
• Country of Origin: Italy

Technical Specifications

• Minimum operating temperature: -20 °C
• Maximum operating temperature: 75 °C
• Threshold of operating temperature for short periods: 90 °C
• Number of holes on the palm: 1
• Type of insulation: partial
• Easy insertion input: Yes
• Surface treatment: tin plating
• Crimping geometry: radial
• Conductor body material: Rame elettrolitico con purezza superiore al 99,95%
• Insulated cover material: Polyvinylchloride PVC
• Annealing: Yes
• Unit in minimal packaging: 100 PCE
• Customs code: 85369010
• EN 45545-2 certification(R22): HL2
• EN 45545-2 certification(R23): HL3
• Self-extinguishing fire class according to UL 94: V0
• Insulated cover colour: red
• Range of cable cross section [mm²]: 0.25 ÷ 1.5
• ROHS compliant: Yes
• UL standard: 486A-486B
• Crimp Type: Ring Terminal
• Conductor Size sqmm (AWG): 0.25÷1.5 (22÷16)
• Stud Ø mm: 5
• Cembre Type: RF-M 5
• Ø: 3.9
• B: 7.8
• M: 7.1
• N: 3.9
• L: 21.1
• d: 5.3
• Crimps Quantity Box/Bag: 2500/100
• Conduit Size: 0.25-1.5mm²
• Stud Ø: M5
• Colour: Red
• Catalogue Code: 381101
• Terminal: Cable Terminations|Description|Product
• Insulated: Cable Terminations|Features|Insulated
• Insulation Colour: Cable Terminations|Features|Insulation Colour Red
• Hole/Stud Size: Cable Terminations|Features|Hole/Stud Size 5 mm
• Insulation Material: Cable Terminations|Material & Finish|Insulation Material PVC
• Diameter: 3.9 mm
• Length Min Max: 21.1 mm
• CE Approved: Y
• Standards: UL (Canada and US) UL 498A EN 1652
• Finish: Red
• Cable Size Range: 22 to 16 AWG mm2
• Length: 21.1 mm
• Length (EF004265): 21.1 mm
• Diameter (EF000551): 3.9 mm
• Diameter.: 3.9 mm
• Diameter (mm): 3.9 mm
• Manufacturer: Cembre Ltd
