Cembre PL06-M Through Connector

Product Description

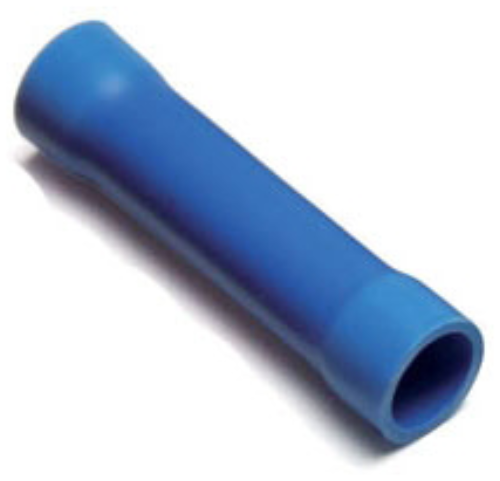

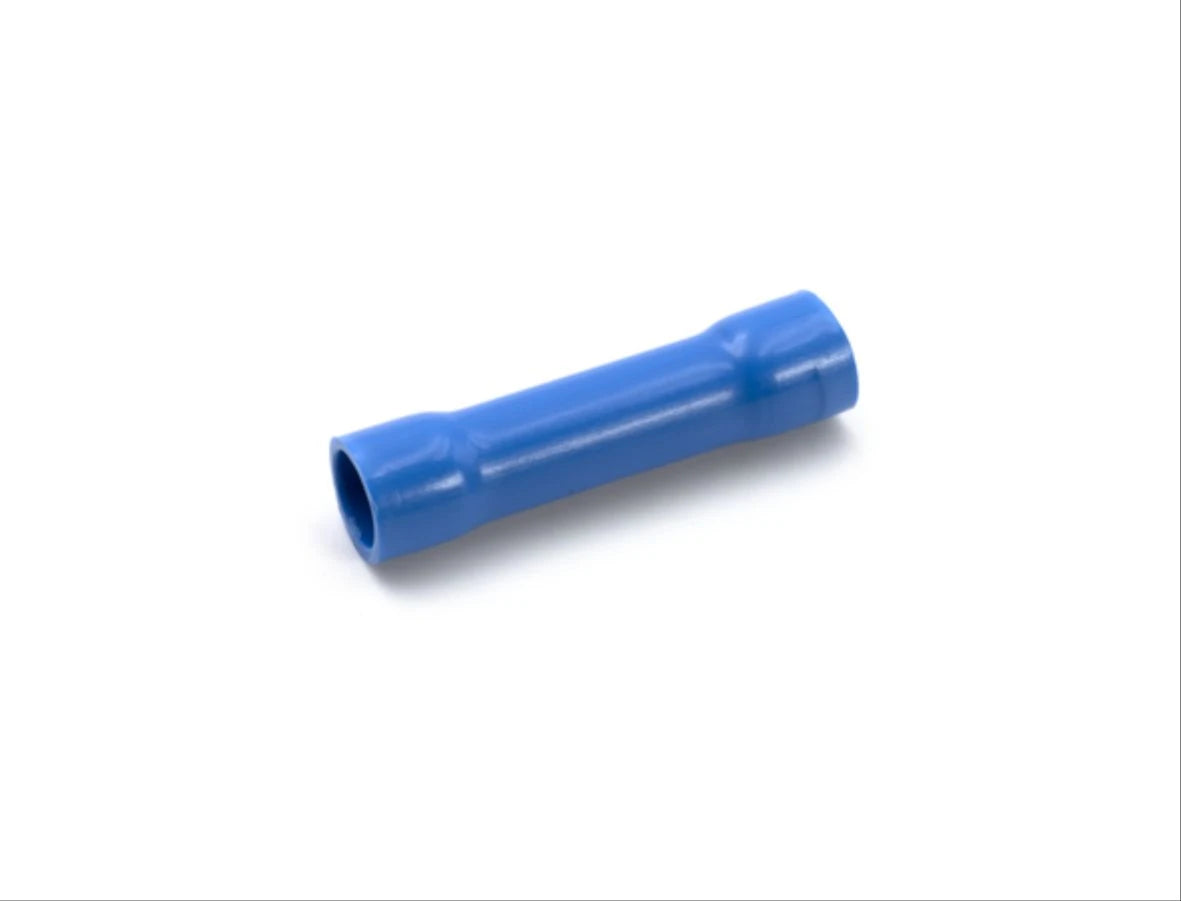

The CEMBRE PL06-M is a through connector, pre-insulated with PVC, suitable for copper conductors. It is electrolytically tin plated with a maximum thickness of 3 µm to prevent oxidation. The PVC sleeve eliminates the need for taping or heat shrinkable tubes, preventing conductor breakage at the barrel entrance.

• THROUGH CONNECTOR
• PRE-INSULATED WITH PVC
• FOR COPPER CONDUCTORS

Product Highlights

The Cembre PL06-M connector offers dependable insulated connections for medium conductors sized 1.5mm² to 2.5mm².

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: PL06-M

Technical Specifications

• Minimum operating temperature: -20 °C
• Maximum operating temperature: 80 °C
• Threshold of operating temperature for short periods: 90 °C
• Type of connector: butt through connector
• Central stop: Yes
• Type of insulation: full
• Surface treatment: tin plating
• Crimping geometry: radial
• Conductor body material: Electrolytic copper with purity greater than 99.95%
• Insulated cover material: Polyvinylchloride PVC
• Annealing: Yes
• Cable stripping length: 9 mm
• Unit in minimal packaging: 100 PCE
• Customs code: 85369010
• ROHS compliant: Yes
• Range of cable cross section [mm²]: 1.5 - 2.5
• Ø [mm]: 4
• Ø2 [mm]: 2.42
• L [mm]: 25
• A [mm]: 15
• C [mm]: 25
• Unit in standard packaging [pce]: 1500
• Self-extinguishing fire class according to UL 94: V0
• UL standard: 486C
• Catalogue Code: 381680
• Type: Butt
• Extra Information: PVC Insulated -20 to 80 Degrees C For 1.2 to 2.5Sq.mm Copper Conductor
• Material: Copper
• Finish: Electrolytic
• CE Approved: Y
• Standards: UL (Canada and US) UL 486A
• Nominal cross section: 1.5mm² - 2.5mm²
• Model Type: Standard version
• Sleeve form: Long
• Suitable for solid cores: No
• Useful for stranded conductors: Yes
• Suitable for fine strand conductors: Yes
• Suitable for high temperatures (to 650 °C): No
• Suitable for insulated varnish: No
• Suitable for round conductors: Yes
• Suitable for flat conductors: No
• Insulation: Polyvinyl chloride (PVC)
• Voltage row: Up to 600 V
• Type of connection: Percussion connector
• For pull protected connections: No
• Oil stop/centre bar: Yes
• AWG-range: 16
• Net Weight: 0.00154000
• Package Weight: 0.15400000
• Package Length: 0.10800000
• Package Width: 0.15100000
