Cembre PL03-M Through Connector

Product Description

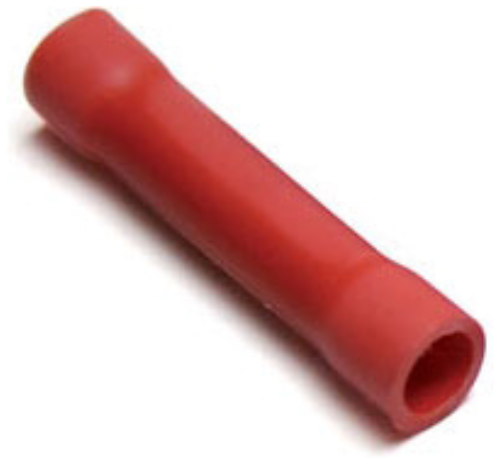

The Cembre PL03-M is a through connector pre-insulated with PVC, suitable for copper conductors. This connector is electrolytically tin plated to avoid oxidation. The PVC sleeve eliminates the need to insulate the terminal and avoids conductor breakage at the barrel entrance.

• THROUGH CONNECTOR
• PRE-INSULATED WITH PVC
• FOR COPPER CONDUCTORS

Product Highlights

The Cembre PL03-M through connector is pre-insulated with PVC and suitable for copper conductors.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: PL03-M
• Country of Origin: Deutschland

Technical Specifications

• Minimum operating temperature: -20 °C
• Maximum operating temperature: 80 °C
• Threshold of operating temperature for short periods: 90 °C
• Type of connector: butt through connector
• Central stop: Yes
• Type of insulation: full
• Surface treatment: tin plating
• Crimping geometry: radial
• Conductor body material: Rame elettrolitico con purezza superiore al 99,95%
• Insulated cover material: Polyvinylchloride PVC
• Annealing: Yes
• Cable stripping length: 9 mm
• ROHS compliant: Yes
• Insulated cover colour: red
• Range of cable cross section [mm ]: 0.25 - 1.5

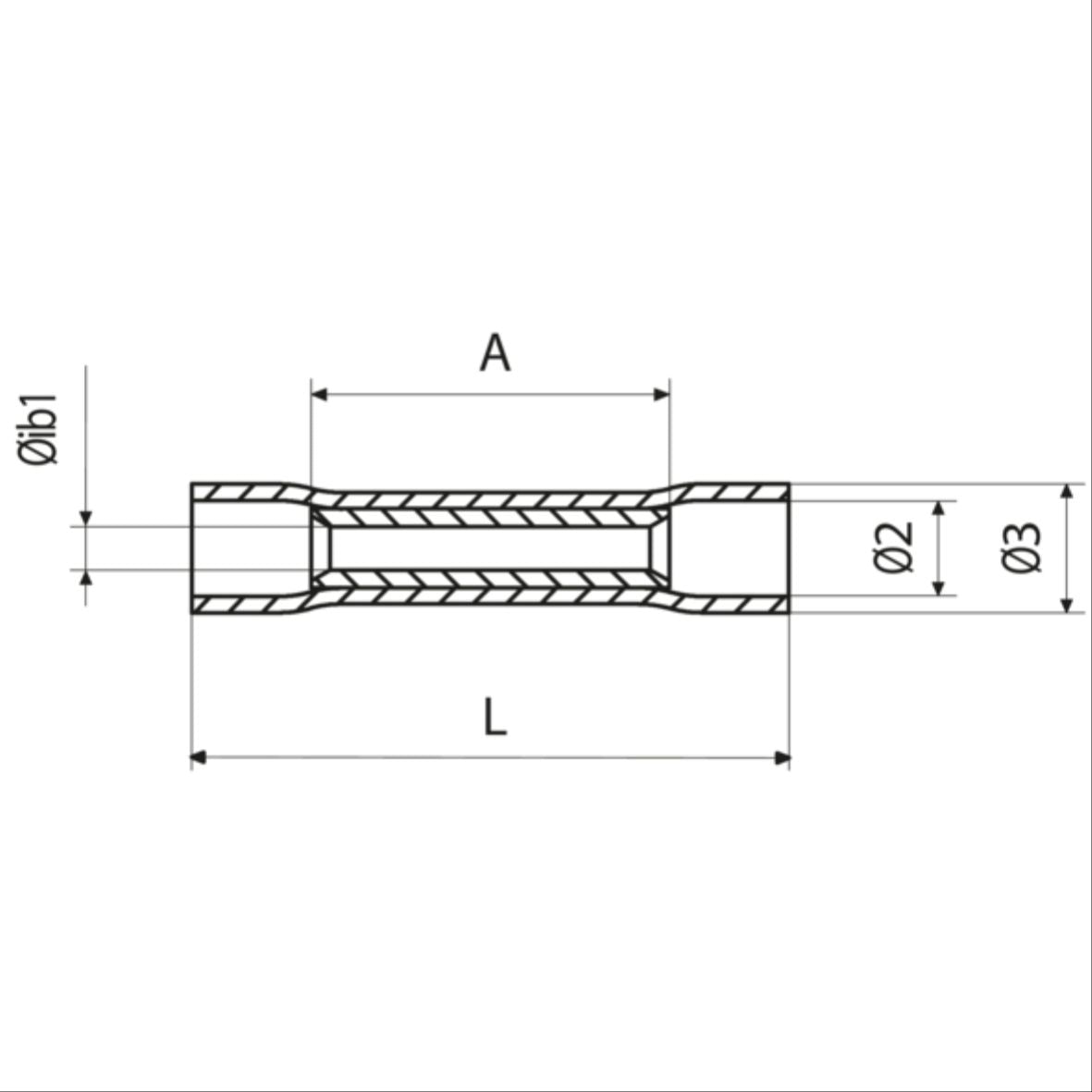

• L [mm]: 25
• A [mm]: 15
• C [mm]: 4
• Self-extinguishing fire class according to UL 94: V0
• UL standard: 486C
• Material: Copper
• Finish: Electrolytic
• Length 2: 25 mm
• Diameter: 4 mm
• CE Approved: Y
• Standards: UL (Canada and US) UL 486A
• Type: Butt
• Material (EF001257): Copper
• Colour (EF003882): Red
• Finish (EF006569): Electrolytic
• Colour (EF000007): Red
• Category: Insulated butt connectors
• Manufacturers: Cembre
• Cable cross-section: 1,0 mm 1,5 mm 0,34 mm 0,25 mm 0,5 mm 0,75 mm
