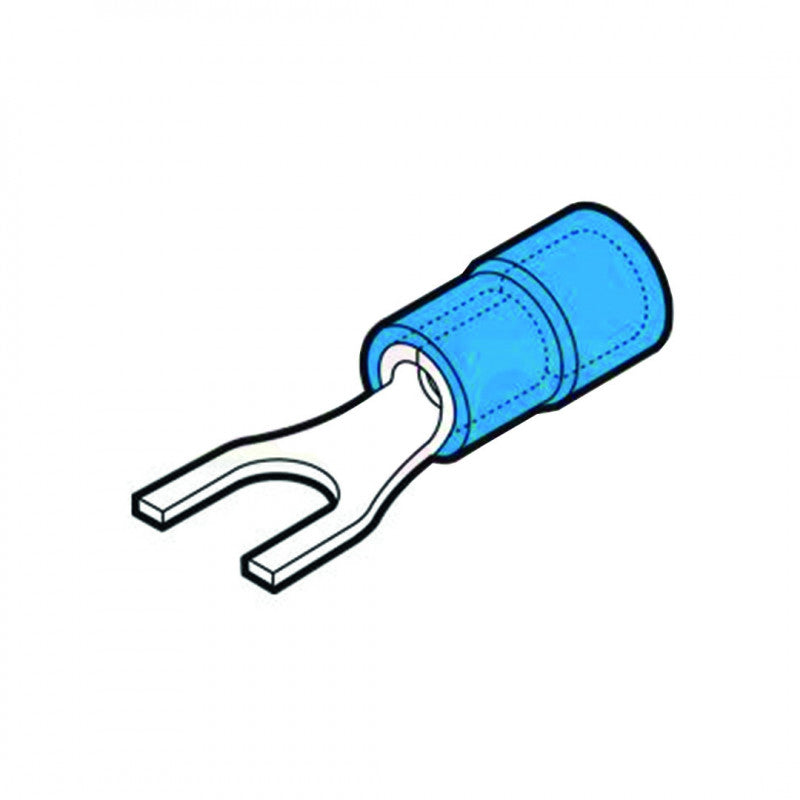

Cembre BF-U4 Bf-U Fork Terminal

Product Description

The CEMBRE BF-U4 is a fork terminal made from electrolytic copper strip of more than 99.9% purity. These connectors are easier to compress and more resistant to mechanical stress. The internal knurling of the collar improves contact with the conductor by increasing the overall traction resistance. The insulated cover facilitates insertion of the conductor.

• F-series terminals are made from electrolytic copper strip of more than 99.9% purity.
• Connectors are easier to compress and more resistant to mechanical stress due to the annealing and electrolytic tinning process.
• The internal knurling of the collar improves contact with the conductor by increasing the overall traction resistance.

Product Highlights

Fork terminals made from electrolytic copper strip with internal knurling for improved contact.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: BF-U4
• Country of Origin: Italy

Technical Specifications

• Minimum operating temperature: -20 °C
• Maximum operating temperature: 75 °C
• Operating temperature threshold for short periods: 90 °C
• Type of insulation: partial
• Easy insertion input: Yes
• Surface treatment: tin plating
• Crimping geometry: radial
• Conductor body material: Rame elettrolitico con purezza superiore al 99,95%
• Insulated cover material: Polyvinylchloride PVC
• Annealing: Yes
• Unit in minimal packaging: 100 PCE
• Customs code: 85369010
• Self-extinguishing fire class according to UL 94: V0
• Insulated cover colour: blue
• Range of cable cross section [mm ]: 1.5 2.5
• ROHS compliant: Yes
• UL standard: 486A-486B
• Conductor Size Minimum: 1.5sqmm
• Conductor Size Maximum: 2.5sqmm
• Conductor Type: Copper Cable
• Cable Terminal Type: Insulated Fork
• Fork Size (Width in mm): 4.3mm
• Maximum Voltage Rating: 0.6kV | 600 Volts | LV Low Voltage
• Insulation Material: PVC
• Cable Terminations Suitable For Indoor Use (No Exposure to Moisture/Water): Yes
• Cable Terminations Suitable For Outdoor Use (No Exposure to Moisture/Water): No
• Halogen Free: No, Terminals contain Halogens
• Flammability Rating: VO
• Commodity Code (Export Code): 85369010
• Brand: Cembre
• Country of Origin: Italy
• UPC: 8016692000978
• Condition: New
• Part #: BF-U4
• Category: Lug/Connector
• Weight: 0.02 lbs
• Reference: 19470078

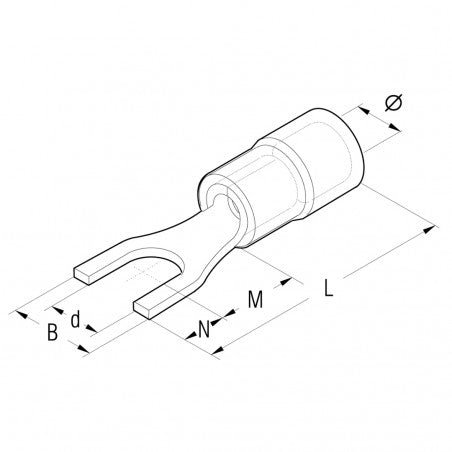

• Total length: 21.2mm
• Cable section mm2: 1.5-2.5mm2
• AWG cable section: 16-14
• Blouse material: PVC
• Connector material: Cu-ETP
• Terminal length: 11.2mm
• Cable input size: 4.9mm
• Connector width: 6.5mm
• Fastening screw: 4mm
• T C of use: -20/+80 C
• Type of matrix: radial containment compression
