Cembre 41092 Mg-Cpm

Product Description

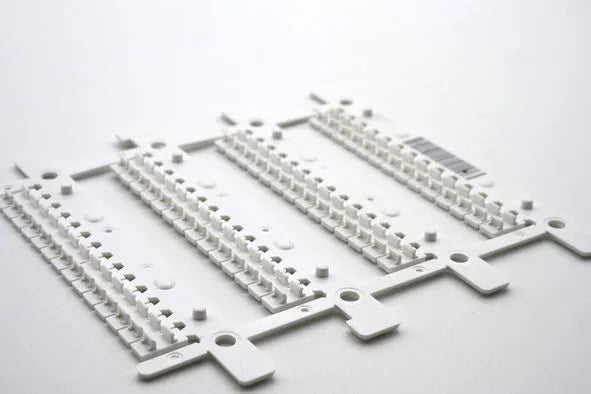

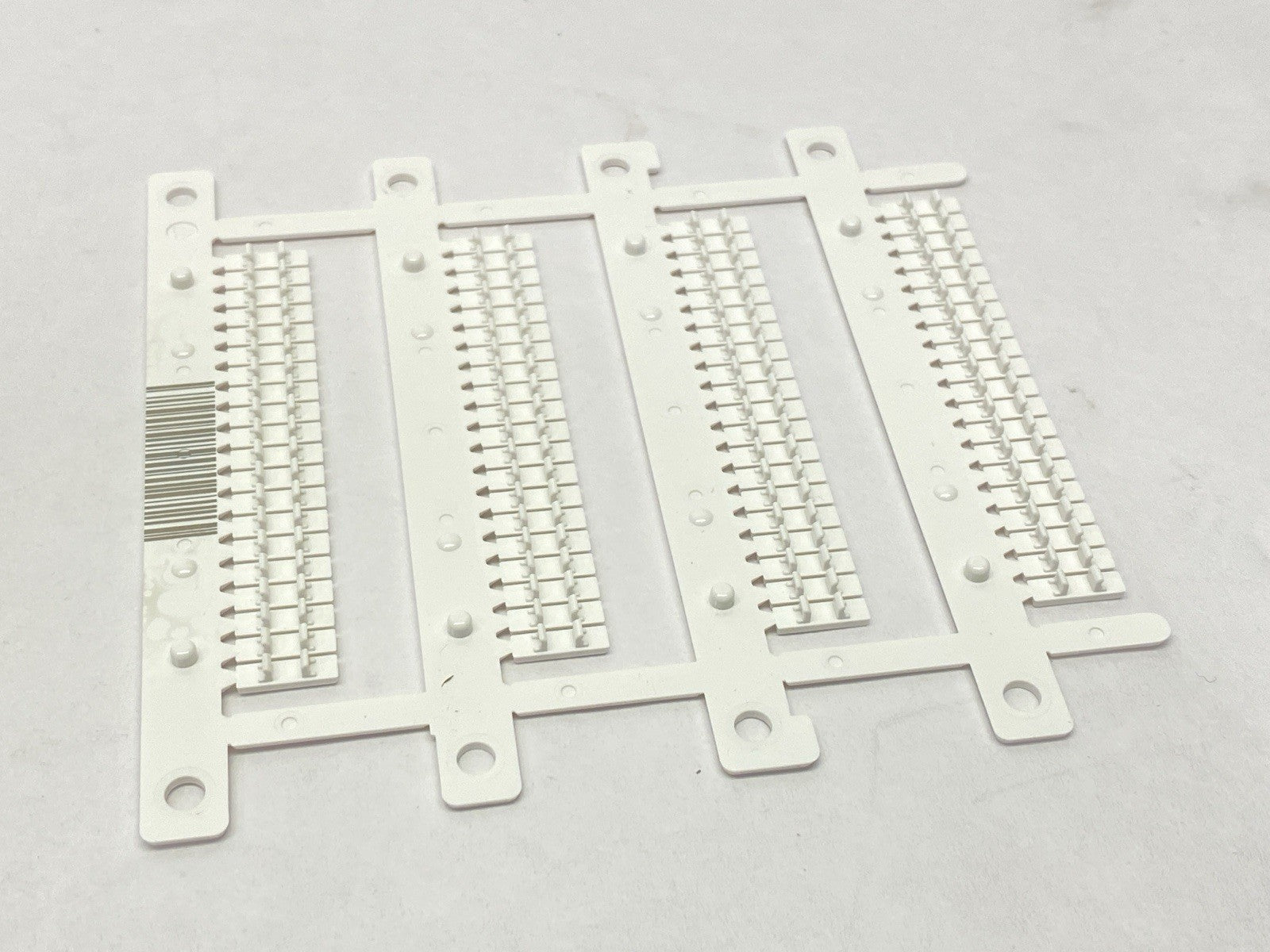

The CEMBRE 41092 MG-CPM terminal block markers suit the clip formats of widely used products. Depending on the type, markers come as joined strips or separate markers for individual insertion on mixed pitch terminal block assemblies. MG-CPM markers offer mechanical robustness, dimensional stability and are Halogen Free.

• Markers are available as joined strips or separate markers.
• Offers elevated mechanical robustness and high dimensional stability.
• Halogen Free

Product Highlights

MG-CPM terminal block markers are designed for efficient marking and organization in electrical applications, ensuring durability and safety.

Product Information

Standard Information

• Brand: CEMBRE
• Manufacturer Part Number: 41092
• Country of Origin: Italy

Technical Specifications

• Minimum operating temperature: -40 °C
• Maximum operating temperature: 130 °C
• Material: Polycarbonate
• Silicone-free: Yes
• Halogen free: Yes
• Customs code: 39269097
• Colour: White
• Sheet elements: 80
• Number of lines: 4
• Tag format: S (single)
• S [mm]: 1.3
• Width [mm]: 3
• L [mm]: 10
• Base of the printable area [mm]: 3.5
• Horizontal pitch between the sheet elements [mm]: 2000
• Unit in minimal packaging [pce]: 2000
• ROHS compliant: Yes
• EN 45545-2 certification (r22): HL2
• Self-extinguishing fire class according to UL 94: V0
• Cembre internal test: Yes
• CEI EN 60950-1: Yes
• CEI EN 61010-1 ed.2: Yes
• EN ISO 4892-2: Yes
• DIN 30643: Yes
• UNI EN ISO 175: Yes
• Brand: Cembre
• Type: Terminal
• MPN: 41092
• Country of Origin: Italy
• Imprint: None
• Direction of coding: Horizontal and vertical
• Pitch: 3.5mm
• Modular dimension: 3.5 mm
• Package: 2000 PZ
• Height of the printable area [mm]: 3.5
• Unit in standard packaging [pce]: 2000
