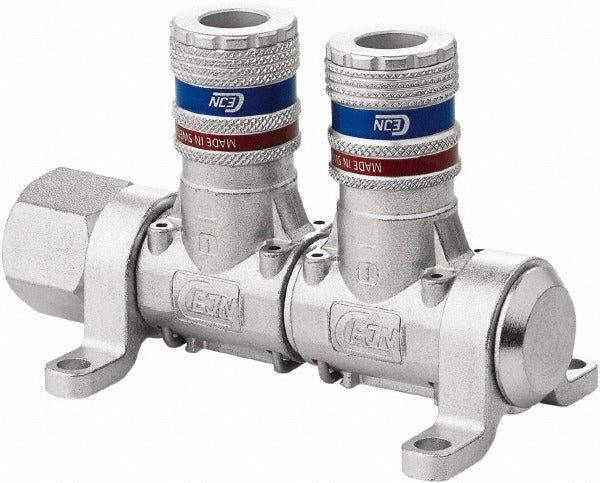

Cejn 19-902-9152-NPT Manifold 1 Inlet 2 Outlet Npt

Product Description

The CEJN 19-902-9152-NPT is a steel and zinc pneumatic manifold designed to split a single compressed-air supply line into two outlet circuits. It accepts a 1/2-inch NPT inlet and delivers air through two 1/4-inch NPT outlet ports, making it a practical distribution block for pneumatic tool stations, air-operated equipment panels, and inline supply routing. Rated to a maximum working pressure of 230 psi, this manifold handles typical shop-air and light-industrial pneumatic system demands. Overall dimensions are 4.4 inches in length, 2.28 inches in width, and 2.7 inches in height. The unit weighs 1.5 pounds and is compatible with Asian-interchange-style couplers.

This manifold is suited for residential shop setups, light commercial pneumatic distribution, and industrial air-tool installations where a single supply header must feed two downstream circuits simultaneously. The 2.87-inch outlet center-to-center spacing allows standard pneumatic fittings and hose assemblies to connect without interference. The NPT thread type is widely used across North American plumbing and pneumatic applications, making this manifold straightforward to integrate into existing compressed-air piping systems. It is typically installed by industrial maintenance technicians, HVAC service professionals, or experienced pneumatic system installers.

Key Features

• 1/2-inch NPT inlet port feeds two 1/4-inch NPT outlet ports for simple one-to-two air distribution
• Maximum working pressure rated at 230 psi for compatibility with standard shop-air compressor systems
• Operating temperature range of -4 degrees F to 212 degrees F supports most indoor and controlled-environment applications
• Steel and zinc construction provides corrosion resistance and durability in compressed-air service
• 2.87-inch outlet center-to-center spacing accommodates standard pneumatic hose and fitting assemblies without crowding
• Mounting hole diameter of 0.245 inches allows panel or bracket mounting in fixed installations

Compatibility

Designed for use with Asian-interchange-style pneumatic couplers. Compatible with standard NPT-threaded pneumatic fittings, hose ends, and quick-disconnect bodies used in North American compressed-air distribution systems.

Installation Notes

Shut off and bleed the compressed-air supply completely before installing or removing this manifold. Apply thread sealant tape or compound rated for pneumatic service to all NPT connections. Verify that upstream supply pressure does not exceed the 230 psi maximum working pressure rating before pressurizing the system. Mounting hole provisions allow the manifold to be secured to a bracket or panel using hardware appropriate for the installation surface.
