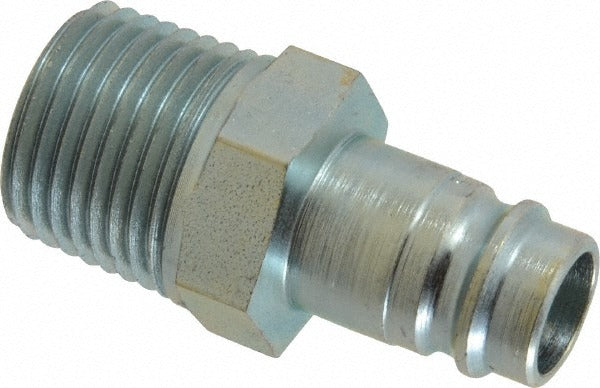

Cejn 10 410 5455 Pneumatic Hose Coupling High Flow

Product Description

The CEJN 10 410 5455 is a High Flow pneumatic hose coupling connector designed for compressed air and pneumatic fluid power systems. Built to Series 410 standards, this threaded connector features a 1/2 inch MNPT thread and a 3/8 inch body diameter. The zinc-finished steel construction provides corrosion resistance and durability in industrial shop and field environments. It handles a maximum working pressure of 232 psi and operates across a temperature range of -4 degrees F to 212 degrees F, making it suitable for year-round use in demanding pneumatic applications. Licensed contractors, maintenance mechanics, and industrial pipe fitters are the typical installers of this fitting.

The 10 410 5455 is suited for industrial and commercial pneumatic systems where high flow capacity and reliable threaded connections are required. The High Flow interchange design allows for increased air volume delivery compared to standard industrial interchange couplings. Typical applications include compressed air distribution lines, pneumatic tool connections, and assembly line air supply points where minimizing pressure drop is a priority. The MNPT thread type allows direct connection to standard NPT-threaded ports on manifolds, regulators, and tool inlets.

Key Features

• High Flow interchange type for increased air volume and reduced pressure drop
• 1/2 inch MNPT thread for direct connection to standard NPT-threaded ports
• 3/8 inch body diameter rated to 232 psi maximum working pressure
• Operating temperature range: -4 degrees F to 212 degrees F
• Steel body with zinc finish for corrosion resistance in industrial environments
• Series 410 design for consistent fitment within the CEJN 410 coupling lineup

Compatibility

Designed as a High Flow interchange connector compatible with CEJN Series 410 pneumatic coupling systems using 1/2 inch MNPT threaded connections.

Installation Notes

Installation of pneumatic couplings should be performed by a qualified technician or pipefitter. Always depressurize and bleed the pneumatic system completely before disconnecting or installing any coupling. Apply thread sealant appropriate for pneumatic service to MNPT threads before assembly. Follow applicable local codes and OSHA compressed air safety guidelines during installation and service.
