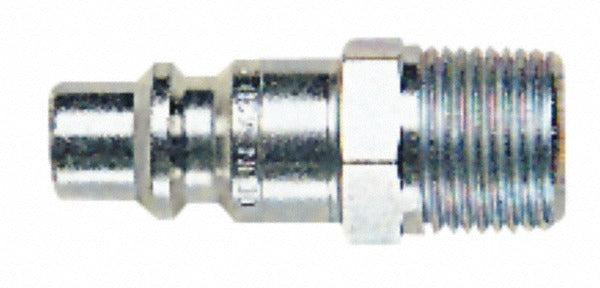

Cejn 10 410 5454 Pneumatic Hose Coupling 3/8 Mnpt

Product Description

The CEJN 10 410 5454 is a male NPT threaded pneumatic hose coupling connector designed for high flow compressed air and pneumatic tool applications. Built to Series 410 High Flow interchange standards, this connector features a 3/8 inch MNPT thread and a 3/8 inch body diameter. The zinc-finished steel construction provides corrosion resistance suitable for industrial shop environments. It is rated to 232 psi maximum working pressure and handles temperatures from -4 degrees F to 212 degrees F, making it a reliable choice for year-round use in both indoor and outdoor service bays. Licensed HVAC and mechanical contractors, plumbers, and industrial maintenance technicians routinely work with pneumatic couplings of this type.

This coupling connector is suited for residential and commercial shop environments where High Flow interchange pneumatic systems are in use. It threads directly into compressor lines, pneumatic tool manifolds, hose assemblies, and air distribution systems that use the High Flow interchange standard. The MNPT thread type allows straightforward installation into standard NPT female ports on tools, regulators, and air distribution equipment. It is sold individually and is appropriate as a direct replacement or system expansion component in any High Flow compatible pneumatic circuit.

Key Features

• High Flow interchange standard for compatibility with Series 410 pneumatic systems
• 3/8 inch MNPT thread for direct connection to standard NPT female ports
• 232 psi maximum working pressure rating for heavy shop air service
• Steel body with zinc finish for durability and corrosion resistance
• Operating temperature range of -4 degrees F to 212 degrees F
• 3/8 inch body diameter with threaded connection type for secure, leak-resistant fit

Compatibility

Designed for use with High Flow interchange pneumatic systems using standard 3/8 inch NPT threaded connections. Compatible with other CEJN Series 410 High Flow components. Specific compatible system or model information beyond the Series 410 interchange standard was not provided in the product data.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air systems. Depressurize and bleed the pneumatic line completely before removing or installing any coupling. Apply thread sealant tape or a compatible NPT thread compound to the male threads before installation to ensure a leak-free connection. Tighten to snug fit using an appropriately sized wrench — do not overtighten steel NPT fittings into cast or aluminum ports.
