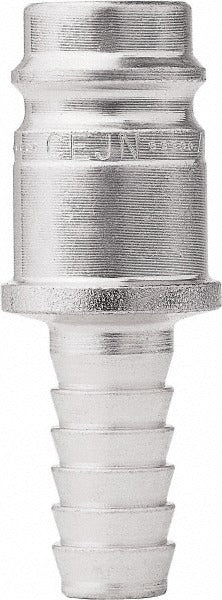

Cejn 10 410 5002 Pneumatic Hose Coupling 3/8 in

Product Description

The CEJN 10 410 5002 is a high flow pneumatic hose coupling connector designed for compressed air and pneumatic tool systems. This Series 410 connector uses a hose barb thread type and accepts hose with a 1/4 inch inside diameter. The body measures 3/8 inch in diameter and is constructed from steel with a zinc finish for corrosion resistance. It is installed by HVAC technicians, industrial maintenance crews, and pneumatic system specialists where high flow capacity and a secure barbed connection are required.

This coupling is suited for light industrial and trade applications where High Flow interchange-style connectors are the shop or job site standard. The hose barb design secures directly onto compatible pneumatic hose without threaded fittings, making it a straightforward component in compressed air distribution lines, pneumatic tool drops, and portable compressor setups. It fits within Series 410 High Flow pneumatic coupling systems.

Key Features

• High Flow interchange coupling type for increased air delivery capacity
• 3/8 inch body diameter with 1/4 inch inside diameter hose barb connection
• Steel construction with zinc finish for durability and corrosion resistance
• Hose barb thread type for direct hose attachment without separate fittings
• Series 410 design for compatibility within High Flow connector systems
• Compact and lightweight at 0.05 pounds

Compatibility

Designed as an OEM-style connector for use in High Flow interchange pneumatic coupling systems accepting a 3/8 inch body diameter connector with a 1/4 inch ID hose barb.

Installation Notes

Installation is typically performed by pneumatic system technicians or qualified maintenance personnel. Before servicing any pneumatic line, depressurize the system completely and verify zero pressure at the connection point. The hose barb design requires the hose to be pushed firmly onto the barb and secured with an appropriate clamp to prevent blowoff under pressure. Follow applicable OSHA and facility safety standards for compressed air system work.
