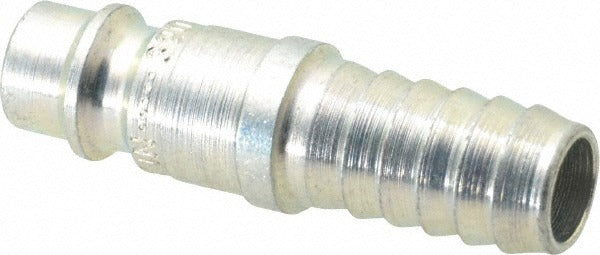

Cejn 10 320 5004 Pneumatic Hose Coupling 1/4 in

Product Description

The CEJN 10 320 5004 is a pneumatic hose coupling connector designed for compressed air and pneumatic tool applications. This connector-style coupling features a hose barb thread type with a 3/8 inch thread size and a 1/4 inch body diameter, providing a High Flow interchange configuration. The steel construction with a zinc finish gives it durability in demanding shop and field environments. Weighing 0.04 pounds, it is a compact, lightweight fitting suited for licensed HVAC technicians, industrial mechanics, and pneumatic system installers working with hose-based air distribution.

This coupling is used in pneumatic systems where a hose barb connection is required on the connector side. It accepts hose with a 3/8 inch inside diameter and is rated for a maximum working pressure of 230 psi. The High Flow interchange design makes it well-suited for applications requiring higher volumetric airflow, such as impact tools, air ratchets, and blow-off lines in residential, commercial, and light industrial settings. It is sold individually and is appropriate for both new installations and replacement work.

Key Features

• High Flow interchange type for improved airflow performance in pneumatic tool applications
• Hose barb thread connection accepts 3/8 inch inside diameter hose
• 1/4 inch body diameter with 3/8 inch thread size
• Steel body with zinc finish for corrosion resistance in shop environments
• Rated to 230 psi maximum working pressure
• Operating temperature range of -4 degrees F to 212 degrees F (-20 degrees C to 100 degrees C)

Compatibility

Designed for use with pneumatic hose systems requiring a High Flow interchange connector with a hose barb connection and 3/8 inch inside diameter hose.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air systems. Depressurize the pneumatic line completely before disconnecting or installing any coupling. Ensure the hose inside diameter matches the 3/8 inch barb specification before assembly, and confirm system pressure does not exceed the 230 psi rated maximum working pressure of this fitting.
