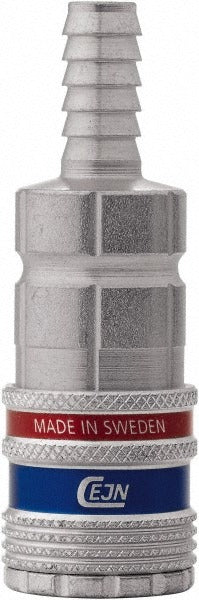

Cejn 10 320 2002 Safety Coupler 1/4 in Hose Barb

Product Description

The CEJN 10 320 2002 is a high-flow pneumatic safety coupler designed for compressed-air systems in industrial and shop environments. Built with a brass and zinc-finished steel body, this coupler features a 1/4-inch hose barb connection and a 1/4-inch body diameter. It handles a maximum working pressure of 230 psi and operates across a temperature range of -4 degrees F to 212 degrees F, making it suitable for year-round use in demanding shop-air applications. Licensed HVAC technicians, plumbers, and maintenance professionals who run pneumatic tool lines will find this coupler a direct-fit solution for high-flow interchange systems.

The 10 320 2002 is intended for pneumatic hose assemblies that require a secure, high-flow connection. The hose barb thread type accommodates 1/4-inch inside diameter hose, making it compatible with standard shop-air and light industrial pneumatic lines. It is a single-unit part suited for both new installations and service replacements on compressed-air distribution systems in commercial shops, maintenance facilities, and light manufacturing environments.

Key Features

• High-flow interchange design for increased air volume delivery compared to standard couplers
• Safety coupler configuration reduces accidental disconnect under pressure
• 1/4-inch hose barb connection fits 1/4-inch inside diameter pneumatic hose
• 230 psi maximum working pressure rating for typical shop-air service
• Brass and zinc-finished steel construction for corrosion resistance in industrial settings
• Wide operating temperature range of -4 degrees F to 212 degrees F

Compatibility

Designed as an OEM-style replacement or upgrade coupler for pneumatic hose assemblies using the High Flow interchange standard with 1/4-inch hose barb connections and Series 320 compatible fittings.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed-air systems. Depressurize and bleed down the air line completely before removing or installing any coupler. Secure the hose barb connection with an appropriate clamp to prevent blowoff under pressure. Follow applicable OSHA and local compressed-air safety codes when servicing pneumatic distribution systems.
