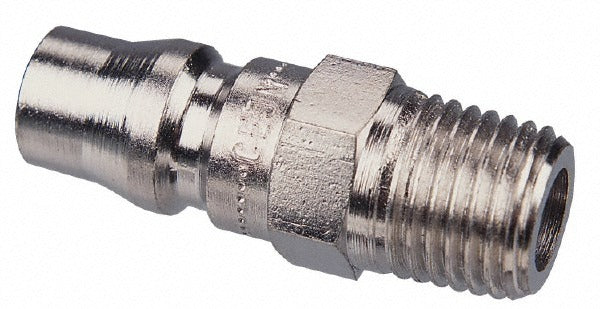

Cejn 10 315 5454 Pneumatic Hose Coupling 1/4 in

Product Description

The CEJN 10 315 5454 is a male NPT threaded pneumatic hose coupling connector designed for use in compressed air distribution systems. It features a 1/4-inch body diameter and a 3/8-inch MNPT thread for straightforward integration into standard pneumatic plumbing. Built from zinc-plated steel, this connector is rated for a maximum working pressure of 230 psi and a temperature range of -4 degrees F to 212 degrees F. The High Flow interchange design helps maintain system efficiency by reducing pressure drop across the connection point. HVAC technicians, industrial mechanics, and pneumatic system installers typically work with this type of fitting during equipment setup and maintenance.

This coupling connector is suited for light-to-medium duty pneumatic applications including air tool hookups, compressor distribution manifolds, and portable equipment connections. The MNPT thread type makes it compatible with standard NPT-threaded ports common across industrial, HVAC, and general shop air systems. Its compact body size and zinc-plated finish make it appropriate for both indoor and temperature-controlled outdoor environments within its rated operating range.

Key Features

• High Flow interchange type for reduced pressure drop and improved airflow efficiency
• 3/8-inch MNPT thread for connection to standard NPT-threaded ports
• 1/4-inch body diameter for compact installation in tight pneumatic layouts
• 230 psi maximum working pressure rating
• Zinc-plated steel construction for corrosion resistance
• Rated for use from -4 degrees F to 212 degrees F

Compatibility

Designed as an OEM-style threaded connector for standard pneumatic systems using High Flow interchange-compatible couplings with 3/8-inch MNPT threaded ports.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Always depressurize and bleed down the air system before connecting or disconnecting any pneumatic fitting. Apply thread sealant appropriate for compressed air service to the MNPT threads before installation. Verify that the mating coupler is a High Flow interchange-compatible socket to ensure a proper, leak-free connection.
