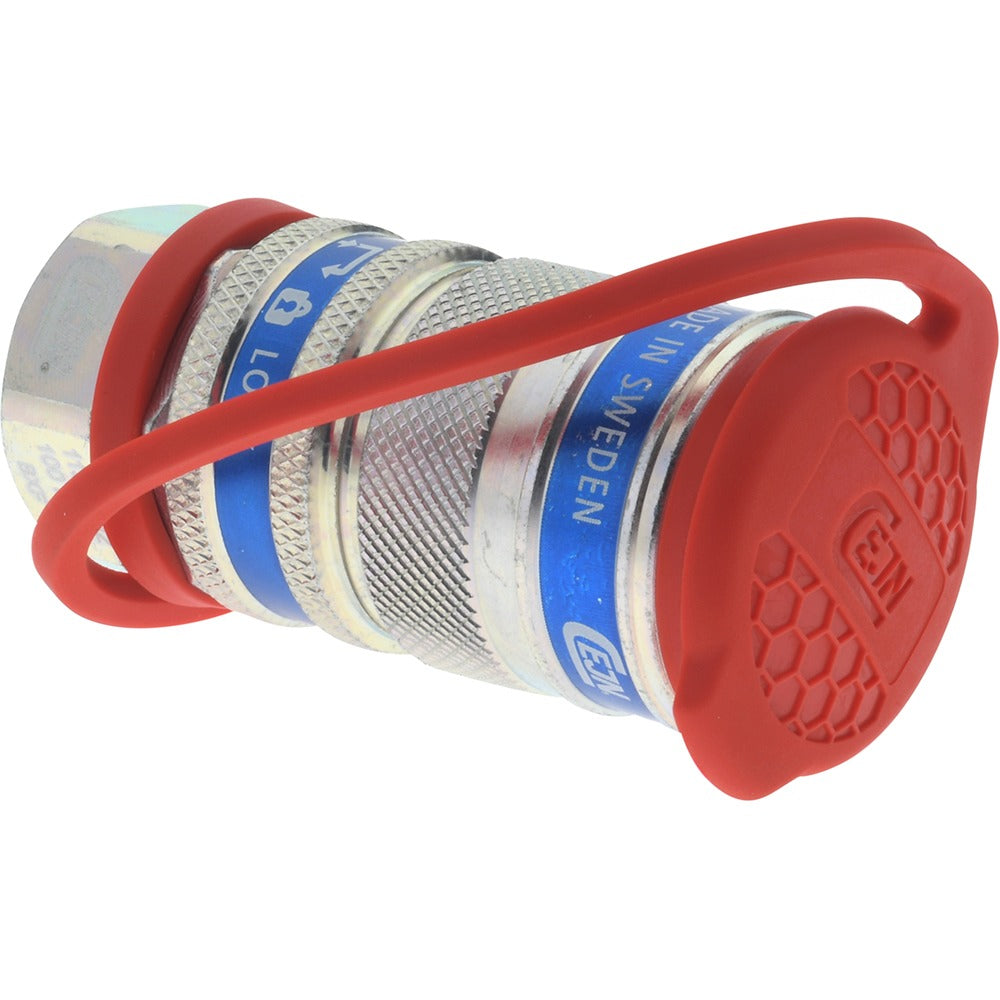

Cejn 10 115 1402 Hydraulic Fitting 14500 Psi 1/4 Npt

Product Description

The CEJN 10 115 1402 is a female pipe rigid hydraulic fitting designed for high-pressure fluid connections in demanding industrial and trade applications. Built from steel with a straight configuration and NPT threaded connection, this fitting handles pressure ratings up to 14,500 psi. At 58.30 millimeters in overall length, it is a compact, fixed-orientation fitting suited for systems where hose movement or swivel action is not required. It conforms to ISO standards and is part of the CEJN 115 series. Hydraulic technicians and mechanical contractors install this fitting in high-cycle, high-pressure environments where connection integrity is critical.

This fitting is rated for use across a range of hydraulic applications including bearing pullers, hydraulic cylinders, bolt tensioning equipment, rescue tools, test benches, and torque tools. Its rigid female pipe design is well suited for stationary plumbing runs where alignment can be controlled at installation. The NPT thread form provides a tapered, pressure-sealing connection standard in North American hydraulic and pneumatic systems. It is appropriate for both shop-based test bench setups and field service equipment requiring reliable high-pressure performance.

Key Features

• 14,500 psi pressure rating for high-demand hydraulic systems
• Steel construction for durability in industrial service environments
• Straight, rigid configuration maintains fixed hose or line orientation
• NPT threaded connection compatible with standard North American pipe fittings
• ISO-compliant design as part of the CEJN 115 series
• Compact 58.30 mm overall length suits tight plumbing layouts

Compatibility

Designed for use with bearing pullers, hydraulic cylinders, hydraulic bolt tensioning tools, rescue tools, test benches, and torque tools requiring a high-pressure female NPT rigid pipe connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with high-pressure fluid systems. Always depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. NPT threads require proper thread sealant applied per the sealant manufacturer instructions — do not overtighten, as NPT tapered threads can crack fittings or damage mating ports. Verify system pressure rating compatibility before pressurizing the completed assembly.
