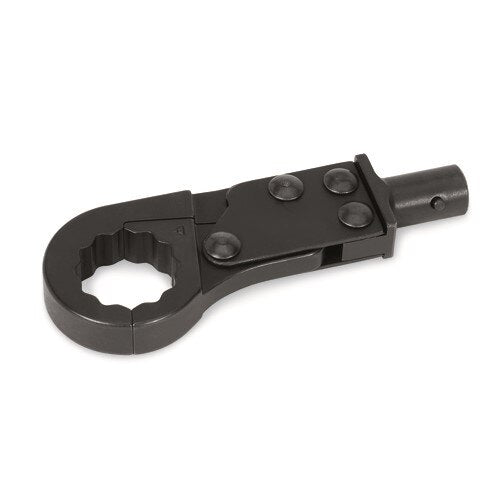

Cdi Torque TCRTWH96X Torque Wrench Head 1.5 in

Product Description

The CDI TORQUE TCRTWH96X is a ratcheting flare nut torque wrench head designed for use with compatible torque wrench drives in professional trade applications. The head fits a 1.5-inch flare nut fastener and mounts via an X-type shank measuring 0.735 inches in diameter. The ratcheting flare nut design wraps around tubing connections, allowing controlled torque application without requiring full rotation clearance. This wrench head is suited for HVAC technicians, plumbers, and refrigeration mechanics who need accurate torque on flare fittings and line connections where standard wrenches cannot fully rotate.

This torque wrench head is used in residential and light commercial service work where flare nut connections must be tightened to a specific torque value without damaging tubing or fittings. Typical applications include refrigerant line set connections, fuel line fittings, and hydraulic line assemblies. It is sold as a single head unit intended to pair with a compatible CDI TORQUE drive handle. Technicians working on copper or aluminum tubing flare connections will find the ratcheting action particularly useful in confined spaces.

Key Features

• 1.5-inch ratcheting flare nut head for controlled torque on line connections
• X-type shank at 0.735 inches for secure engagement with compatible drive handles
• Ratcheting action allows use in tight spaces with limited swing clearance
• Flare nut profile surrounds tubing to prevent rounding of fitting flats
• Lightweight construction at 0.44 pounds for extended use comfort

Compatibility

Designed as an OEM-style replacement or accessory torque wrench head compatible with CDI TORQUE X-shank drive handles. Verify shank compatibility with your existing torque wrench handle before installation.

Installation Notes

This wrench head is installed by trade professionals including HVAC technicians, refrigeration mechanics, and plumbers. Ensure the drive handle is rated for the required torque range before applying load through this head. Always confirm the shank type and size match your torque wrench handle prior to use. Follow applicable industry torque standards for the specific fitting material and size being serviced.

Technical Specifications

• Head Size: 1.5 inches
• Head Type: Ratcheting Flare Nut
• Shank Size: 0.735 inches
• Shank Type: X
• Length: 6.6 inches
• Width: 0.8 inches
• Depth: 2.7 inches
• Weight: 0.44 pounds
• Sold As: Each

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: TCRTWH96X
