Cdi Torque TCQJXD30A Torque Wrench Head 15/16 Inch Sae

Product Description

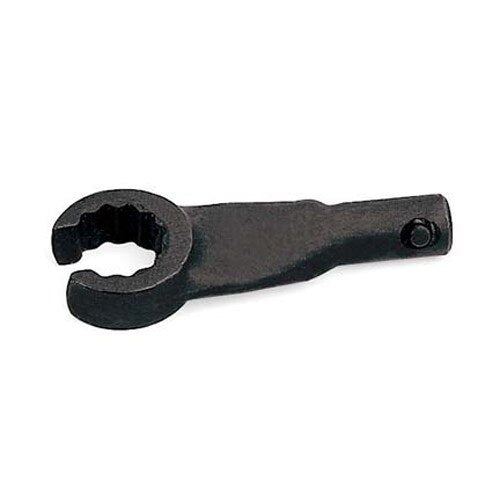

The CDI TORQUE TCQJXD30A is a 15/16 inch SAE torque wrench head designed for precise fastener engagement in mechanical and trade service applications. It features a 12-point contact pattern and a J-type shank measuring 0.425 inches in diameter, allowing it to seat into compatible torque wrench handles securely. Maximum torque capacity is 60 foot-pounds. The head weighs 0.15 pounds and is compact enough for use in tight work envelopes. Mechanics, HVAC technicians, and plumbers working with SAE fasteners will find this head suited for controlled torque applications where accuracy and repeatability matter.

This torque wrench head is intended for use with J-shank torque wrench handles in SAE measurement applications. It is appropriate for residential and light commercial service work involving bolted connections that require specified torque values. Typical scenarios include equipment assembly, flange bolting, and mechanical component installation where fastener preload must be controlled. The 15/16 inch size addresses a common SAE fastener dimension found across HVAC equipment, plumbing fixtures, and general mechanical systems.

Key Features

• 15/16 inch SAE opening for standard fastener engagement
• 12-point contact pattern for increased socket positioning options in confined spaces
• J-type shank at 0.425 inches for secure handle attachment
• Maximum torque rating of 60 foot-pounds
• Lightweight at 0.15 pounds for reduced hand fatigue during extended use
• Compact profile: 3.5 inches length, 0.8 inches width, 3.5 inches height

Compatibility

Designed for use with J-shank torque wrench handles accepting a 0.425-inch shank diameter. Verify shank interface dimensions on the drive handle before installation.

Installation Notes

Installation of this torque wrench head should be performed by a qualified mechanic or trade professional familiar with torque tool assembly and use. Ensure the J-shank seats fully and locks into the drive handle before applying load. Do not exceed the 60 foot-pound maximum torque rating, as overloading can damage the head or the fastener. Inspect the head for wear or cracks before each use and replace if deformation is observed.

Technical Specifications

• Size: 15/16 inches
• Measurement Type: SAE
• Shank Size: 0.425 inches
• Shank Type: J
• Point Type: 12 Point
• Maximum Torque: 60 foot-pounds
• Length: 3.5 inches
• Width: 0.8 inches
• Height: 3.5 inches
• Weight: 0.15 pounds
• UPC: 662459331991

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: TCQJXD30A
