Cd Valve CD9530SVK Hvac Appliance Service Kit

Product Description

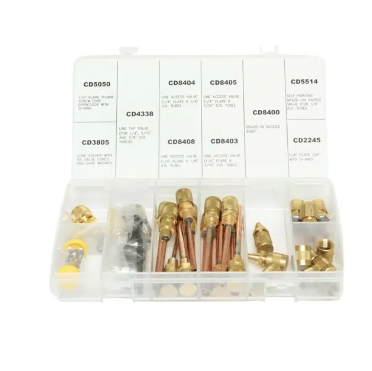

The CD Valve CD9530SVK is a comprehensive HVAC appliance service kit designed to support refrigeration access, valve core service, and line tap work on residential and light commercial HVAC systems. The kit consolidates the most commonly needed access fittings, saddle valves, valve cores, and line tap components into a single package, reducing the number of individual parts a technician needs to stock on the truck. It includes flare access fittings, a core depressor, a standard line tap valve, copper tube extensions in multiple OD sizes, brass caps, and a plastic tube container with valve cores and a core wrench. This kit is intended for licensed HVAC technicians performing routine refrigerant access and service tasks.

The CD9530SVK is suited for residential and light commercial refrigerant system service applications. The variety of copper tube extension sizes and OD steps on the solder-end access body accommodates common tubing dimensions found across split systems, window units, and appliance refrigeration circuits. The included saddle valves and line tap valve support field access installations where permanent access ports are not present. No single-use specialty tools are required for the components in this kit beyond standard HVAC hand tools.

Key Features

• Includes CD5050 standard line tap valve for field refrigerant access
• CD3805 thumb screw core depressor with o-ring for 1/4 inch flare connections
• CD4338 plastic tube container with six valve cores and one core wrench tool
• CD8400 1/4 male flare access body with solder end steps at 1/8 inch ID and 3/16, 1/4, and 5/16 inch OD (3 pieces)
• Copper tube extension access fittings in four sizes: 1/8, 3/16, 1/4, and 5/16 inch OD (3 pieces each)
• CD5514 1/4 inch copper saddle valves (3 pieces) and CD2245 1/4 inch female flare brass caps (6 pieces)
• Made in the USA

Compatibility

Designed for use with 1/4 inch flare refrigerant access circuits commonly found in residential and light commercial HVAC and appliance refrigeration systems.

Installation Notes

Installation of refrigerant access fittings and line tap valves should be performed by EPA Section 608 certified HVAC technicians only. Power down and isolate the system before installing saddle valves or soldering access body fittings. Follow local mechanical codes and the equipment manufacturer guidelines when adding or replacing access ports. Ensure all flare connections are torqued to proper hand-tight plus wrench specification per standard HVAC practice before pressurizing the system.

Technical Specifications

• Included Components: CD5050 line tap valve (1), CD3805 core depressor with o-ring (1), CD4338 valve core container with 6 cores and wrench (1), CD8400 access body (3), CD8403 3/16 inch extension fitting (3), CD8404 1/4 inch extension fitting (3), CD8405 5/16 inch extension fitting (3), CD8408 1/8 inch extension fitting (3), CD5514 saddle valve (3), CD2245 brass cap (6)
• Flare Connection Size: 1/4 inch male and female flare
• Solder End OD Steps: 3/16 inch, 1/4 inch, 5/16 inch OD
• Solder End ID: 1/8 inch
• Country of Origin: USA

Standard Information

• Brand: CD Valve
• Manufacturer Part Number: C&DV-CD9530SVK
