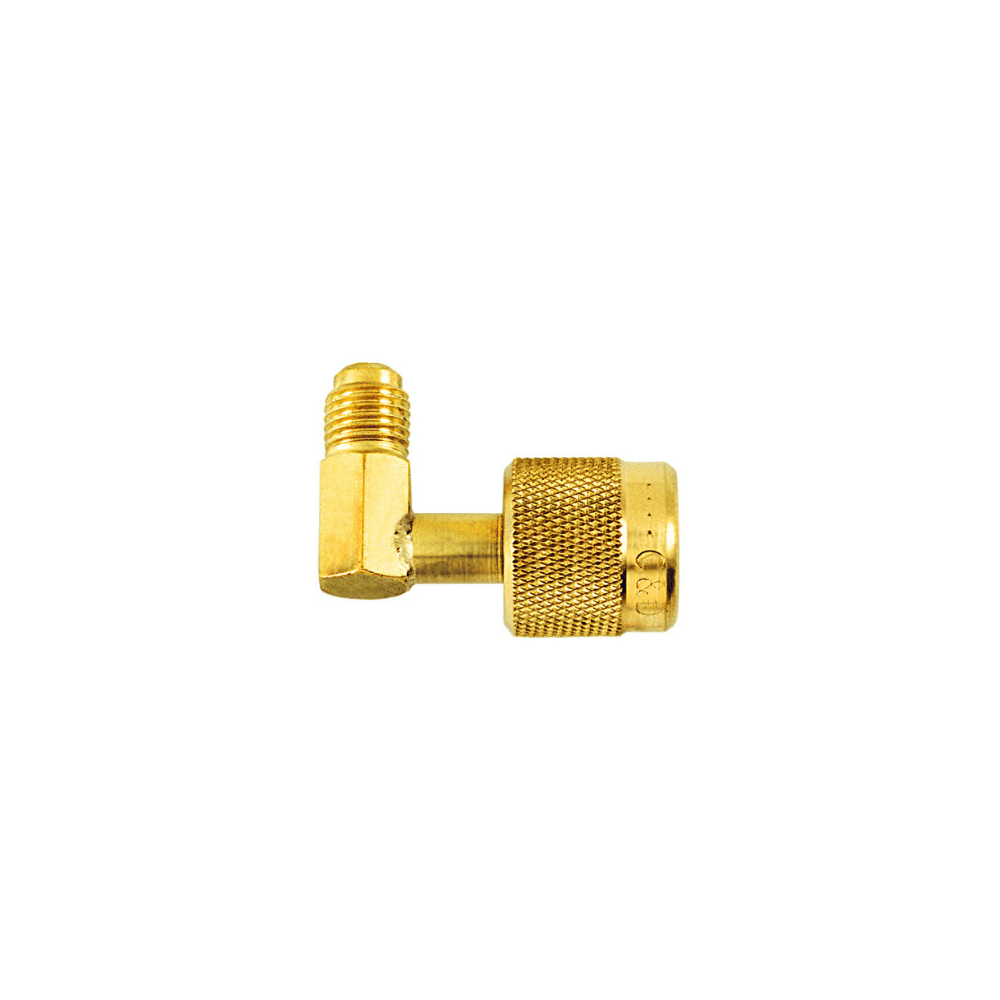

Cd CDV-CD2090 Refrigerant Retaining Coupler 1/4 Sae

Product Description

The CD CDV-CD2090 is a Sure Seal retaining coupler designed for use on refrigerant charging hoses in HVAC service applications. When attached to a Schrader-type access fitting, the coupler automatically depresses the valve core and opens the port in one motion, eliminating a separate step. When disconnected, it seals the charging hose and traps refrigerant inside, preventing loss to atmosphere. The unit is machined from brass and rated to 700 psi working pressure. Internal seals are compatible with newer refrigerants including HFOs and HFCs. If internal components wear, a replacement parts kit is available separately. Licensed HVAC technicians performing refrigerant service are the primary installers.

This coupler is suited for residential and light commercial refrigerant charging and recovery work. It is designed to remain permanently installed on the end of a charging hose, making it a functional end fitting rather than a temporary adapter. The 1/4 inch female flare inlet connects to standard charging manifold hoses, and the 1/4 inch male flare outlet threads onto a 1/4 inch SAE access port fitting. Its compact brass construction holds up to repeated connection cycles in field service conditions.

Key Features

• Automatic valve core depression on connection — one-action attachment to access fittings
• Seals refrigerant in the hose on disconnect, reducing refrigerant loss
• 700 psi working pressure rating for high-side and low-side service
• Brass construction compatible with common refrigerant types including newer HFC and HFO blends
• Designed for permanent installation on the charging hose end
• Replacement internal parts kit available when seals require service

Compatibility

Designed for use with standard 1/4 inch SAE flare refrigerant charging hoses and 1/4 inch Schrader-type access fittings commonly found on residential and light commercial HVAC and refrigeration systems.

Installation Notes

Installation is performed by licensed HVAC technicians following EPA Section 608 refrigerant handling requirements. Recover or isolate refrigerant pressure before disconnecting any hose assembly from the system. Thread the coupler onto the charging hose end hand-tight, then snug with a wrench — do not overtighten brass flare fittings. Inspect the internal seal condition before each use and replace the seal kit if leakage or stiff operation is observed.

Technical Specifications

• Connection Size: 1/4 inch female flare x 1/4 inch male flare
• Fitting Size: 1/4 inch SAE
• Working Pressure: 700 psi
• Material: Brass
• Length: 1.76 inches
• Width: 0.889 inches
• Height: 1.35 inches
• Weight: 0.163 pounds
• Country of Origin: USA

Standard Information

• Brand: CD
• Manufacturer Part Number: CDV-CD2090
