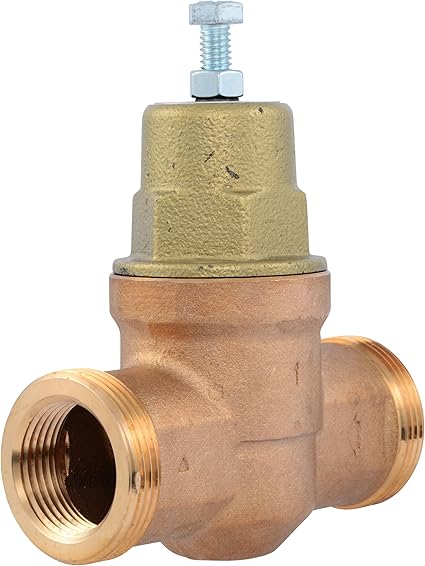

Cash Acme PVA20M-DSB-60 Pressure Regulating Valve 1 Inch NPT Threaded 60 PSI

Product Description

The Cash Acme PVA20M-DSB-60 pressure regulating valve is designed for effective regulation of downstream pressure in both residential and commercial water systems. This valve features a one-inch NPT threaded connection and is suitable for use with hot and cold water. With a tamper-resistant design, you can set and lock the desired system pressure for reliable operation. The valve allows for easy adjustments between ten and seventy PSI, making it versatile for different application needs.

• Regulates pressure in various water applications
• Durable materials ensure longevity
• Adjustable pressure settings from 10 to 70 PSI

Product Highlights

This model is built from brass and stainless steel, ensuring that it meets the requirements of high-performance plumbing.

Product Information

Standard Information

• Material: Brass
• Item dimensions: 5.62 inches x 5.03 inches x 2.39 inches

Technical Specifications

• Inlet Connection Size: 1 inch
• Inlet Connection Type: National Pipe Tapered
• Maximum Operating Pressure: 60 pound per square inch
• Outlet Connection Size: 1 inch
• Lead-Free: Compliant with NSF/ANSI 372 standards
• Pressure Setting: Adjustable between 10-70 PSI
