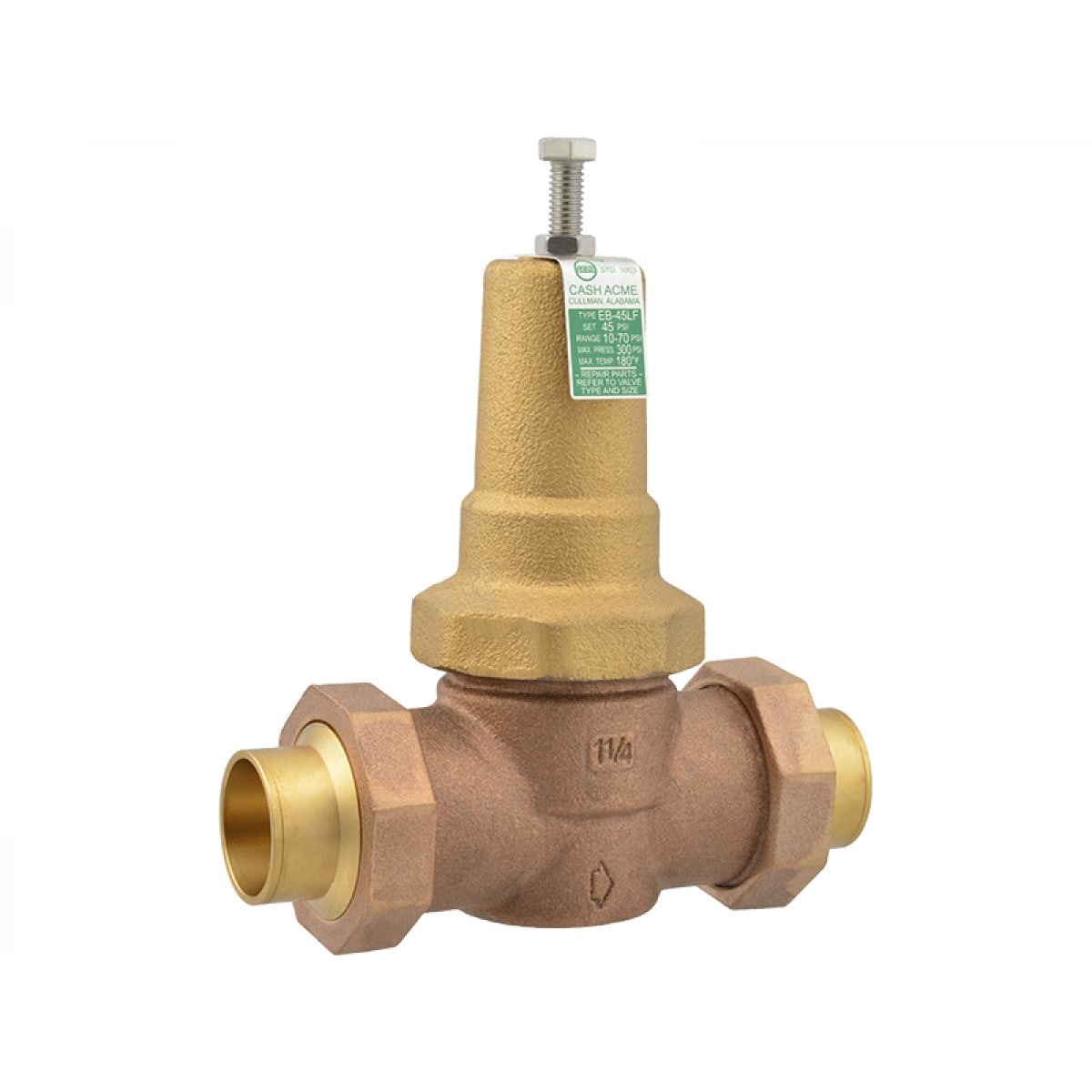

Rwc 23159-0045 EB45-CC Pressure Regulator 1-1/4 in Double Union Sweat

Product Description

The RWC 23159-0045 is an EB-45 series lead-free pressure regulator with an EB45-CC modular cartridge and a 1-1/4 in double union sweat connection. It reduces and regulates supply pressure up to 300 psi, is factory set to 45 psi, and provides an adjustable outlet range of 10–70 psi. The valve is suitable for cold or hot water up to 180 F and incorporates a reinforced EPDM diaphragm and a lead-free bronze body.

• Modular cartridge design with separate spring chamber and integral bypass for simplified maintenance and extended service life
• Lead-free bronze body, reinforced EPDM diaphragm, polysulfone body seat, stainless steel strainer; rated for up to 300 psi and 180 F
• Factory delivery setting 45 psi with adjustable outlet range 10–70 psi; certified to ASSE 1003 and CSA B356; listed by IAPMO and compliant with NSF 372

Product Highlights

Lead-free bronze pressure regulator, EB45-CC cartridge, 1-1/4 in double union sweat, adjustable 10–70 psi

Product Information

Standard Information

• Brand: RWC
• Manufacturer Part Number: 23159-0045
• Country of Origin: United States
