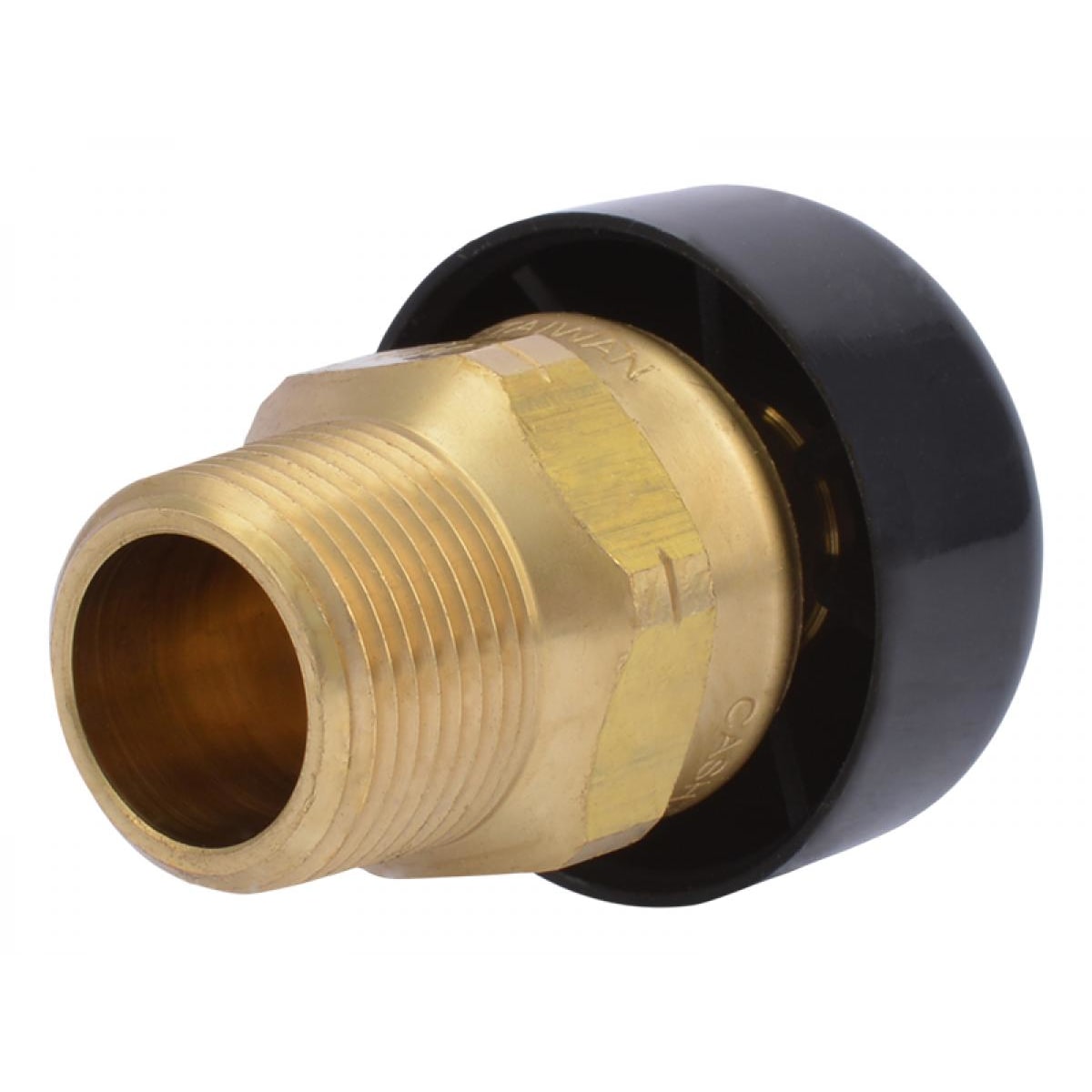

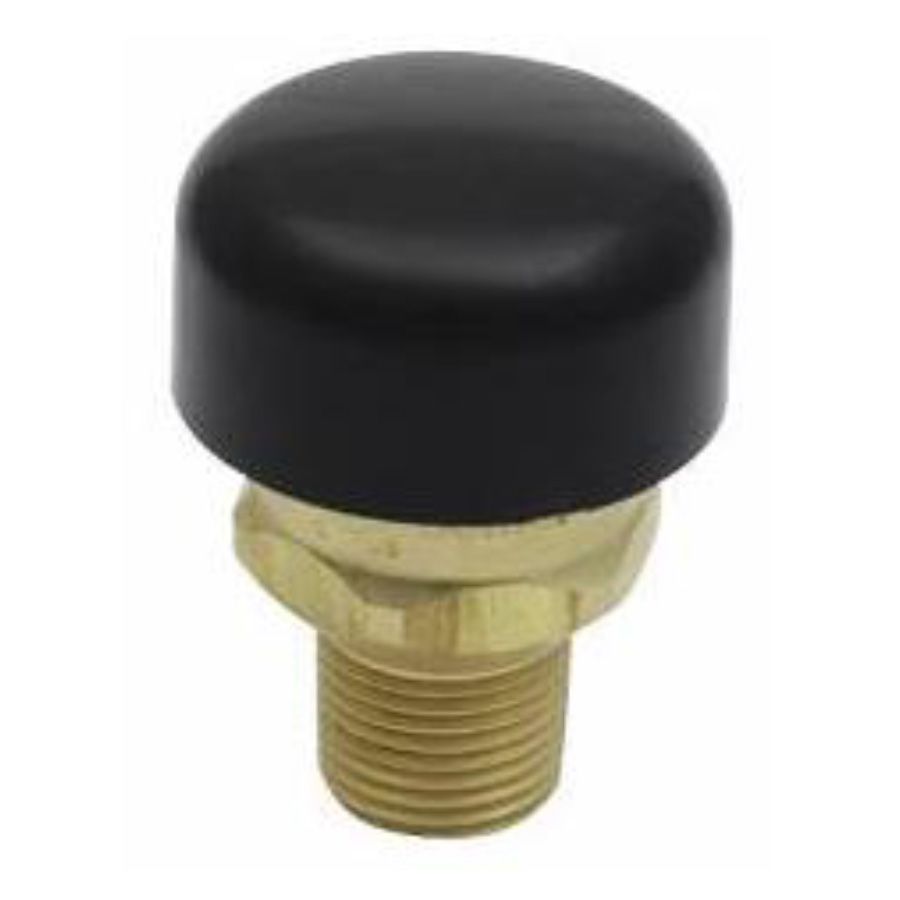

Cash Acme 22398LF 3/4-in VR20 Vacuum Relief Valve

Product Description

The Cash Acme vacuum relief valve, part number 22398LF, is essential for protecting hot water supply systems and pressure vessels from negative pressure. This valve is commonly used in domestic and commercial systems to prevent internal vacuum conditions that can lead to equipment failure, such as burned-out heaters or collapsed storage tanks. It installs on the cold water supply line and operates effectively by maintaining pressure and opening at 1 inch mercury vacuum, allowing atmosphere into the system to avoid collapse.

• Guards against siphonage, burnt-out heaters, and collapsing storage tanks.
• Opens quickly in emergencies to prevent damage.
• Meets ANSI Z21.22/CSA 4.4 code approvals for safe operation.

Product Highlights

This product integrates safety features that ensure the reliable operation of water systems in various settings.

Product Information

Standard Information

• Brand: Cash Acme
• Part Number: 22398LF

Technical Specifications

• Model: VR20
• Body Material: Brass
• Valve Application: Hot Water
• Valve Size: 3/4 inches
• Max Pressure: 200 psi WOG
• Valve Connection: NPT
• Piping Configuration: Straight
• Weight: 0.37 pounds
