Carvin 05386503R Impeller Standard Pool Pump

Product Description

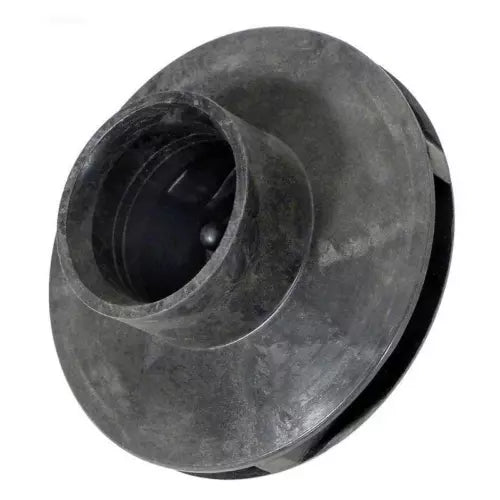

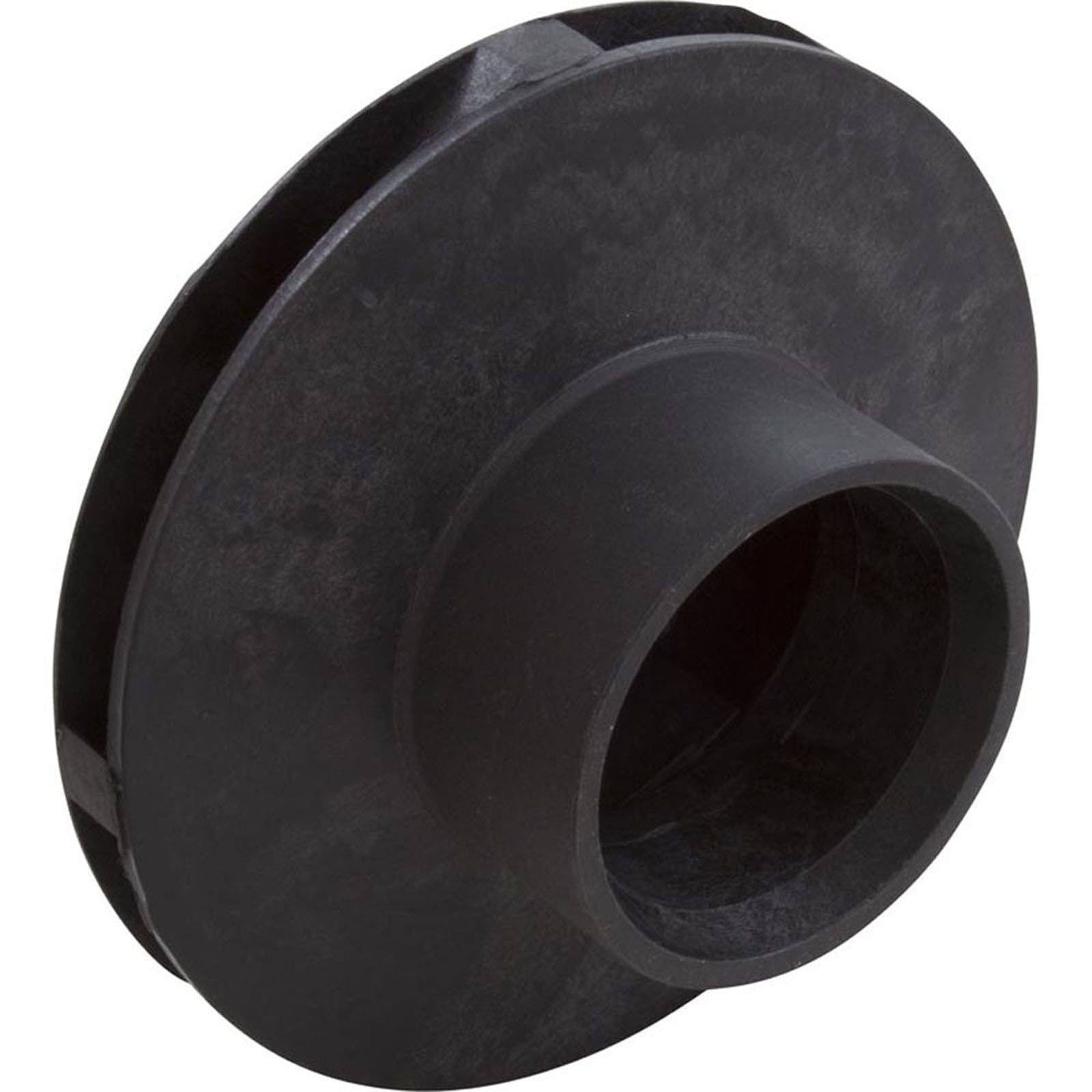

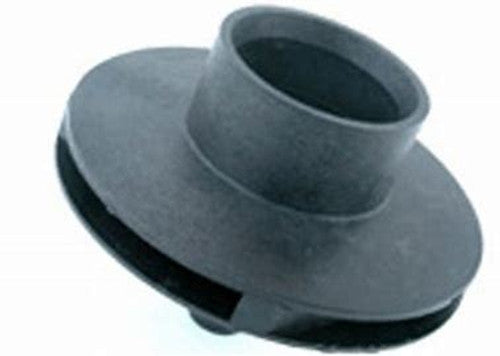

The Carvin Pool Equipment Impeller 05386503R is made for specific Jacuzzi and Carvin pump series. It is ideal for the J Series, JCM Series, K Series, and KM Series pumps. The closed-face design measures four and three-sixteenths inches in outer diameter, making it suitable for various pool applications.

• Compatible with Jacuzzi/Carvin J Series, JCM Series, K Series, and KM Series pumps.
• Closed-face impeller with an outer diameter of four and three-sixteenths inches.
• Shaft length of one and seven-sixteenths inches with a diameter of five-eighths inches.

Product Highlights

This impeller is built for durability and efficiency, ensuring optimal water flow in pool systems.

Product Information

Standard Information

• Manufacturer: Jacuzzi/Carvin
• Type: Standard Pool Pump Part

Technical Specifications

• Impeller Type: Closed Face
• Impeller Diameter OD: 4-3/16 inches
• Vane Width ID: 5/16 inches
• Eye Diameter OD: 2 inches
• Eye Length: 1 inch
• Impeller Width OD: 1/2 inch
• Shaft Length: 1-7/16 inches
• Shaft Diameter OD: 5/8 inches
• Carvin MPN: 05386503R
• Jacuzzi MPN: 05-3865-03-R
