CARRIER ZR57K3E-TF5-830 Scroll Compressor

Product Description

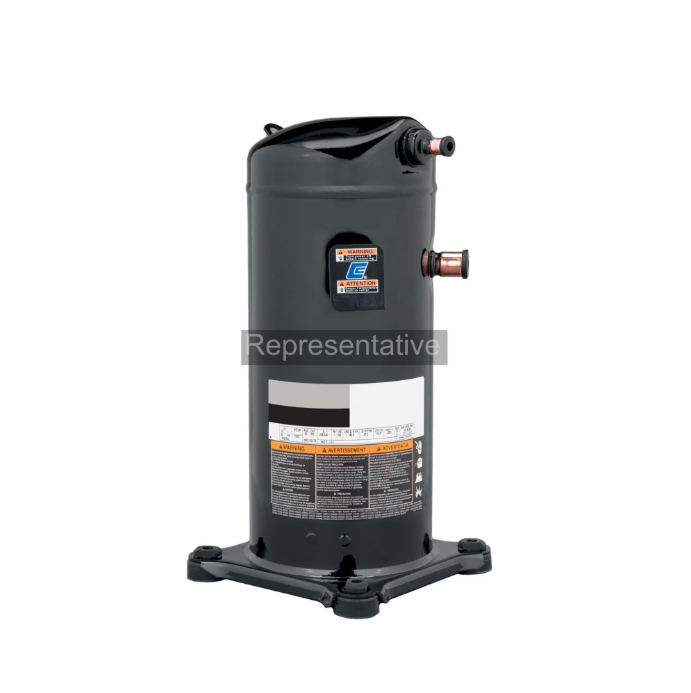

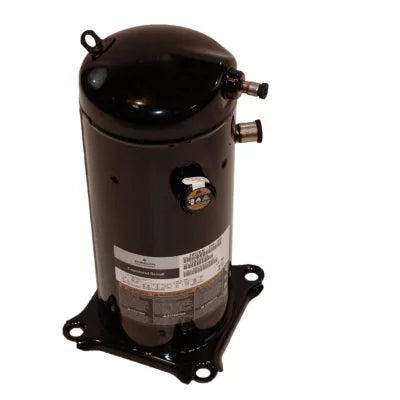

The CARRIER ZR57K3E-TF5-830 is a hermetic scroll compressor suitable for R-22 and R-407C refrigerants. It delivers an output of 58,500 BTU and operates efficiently on 200/220 or 200/230 VAC with three-phase power at 50/60 Hz.

• Designed to reduce maintenance requirements with fewer moving parts.
• Offers resistance to liquid refrigerant slugging and debris.
• Minimizes vibration levels for reduced noise and wear on components.

Product Highlights

This compressor features a suction line with a seven-eighths inches outer diameter and a half inch outer diameter discharge connection. It uses Polyolester oil with an initial charge of sixty-six ounces. The dimensions of the unit are fourteen point five inches by thirteen point twenty-five inches by seventeen point three inches, with mounting dimensions of seven point five inches by seven point five inches by seventeen point ninety-nine inches. It is UL Recognized and manufactured in the USA.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• Length: 9.69 inches
• Width: 9.69 inches
• Height: 17.24 inches
• Weight: 85 pounds
• Amps: 19.3
• BTU Output: 58,500
• Voltage: 200/220, 200/230 VAC
• Oil Type: Polyolester (POE)
