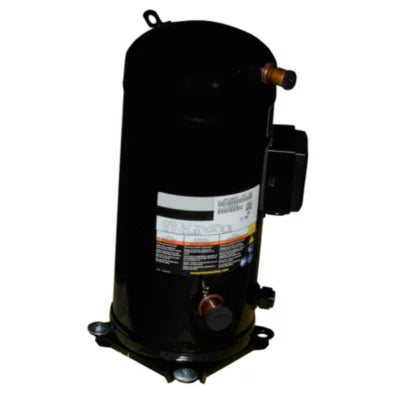

CARRIER ZR108KCE-TF5-950 Scroll Compressor

Product Description

The CARRIER ZR108KCE-TF5-950 is a scroll compressor suitable for refrigeration applications. This unit operates on 200/220 or 200/230 VAC with three-phase power and a frequency of 50/60 Hz. It features a hermetic housing and utilizes Polyolester (POE) oil. The compressor provides a nominal output of 109,000 BTU.

• Connection sizes: 1-3/8 inch for suction and 7/8 inch for discharge
• Manufactured in the USA and UL Recognized
• Low vibration for reduced noise and wear

Product Highlights

Designed for efficiency, the CARRIER ZR108KCE-TF5-950 operates effectively under partial loads, minimizing maintenance needs with fewer moving parts.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• Weight: 132 lbs
• Dimensions: 11.25 inches x 1.5 inches x 21 inches
• BTUH: 109,000
• Voltage: 200/220, 200/230 VAC
• Phase: Three
• Hertz: 50/60 Hz
• Suction Connection Size: 1-3/8 inch
• Discharge Connection Size: 7/8 inch
• Locked Rotor Amps (LRA): 225
• Refrigerant Compatibility: R-134a, R-22, R-407C
• Sound Level: 80-85 dBA
