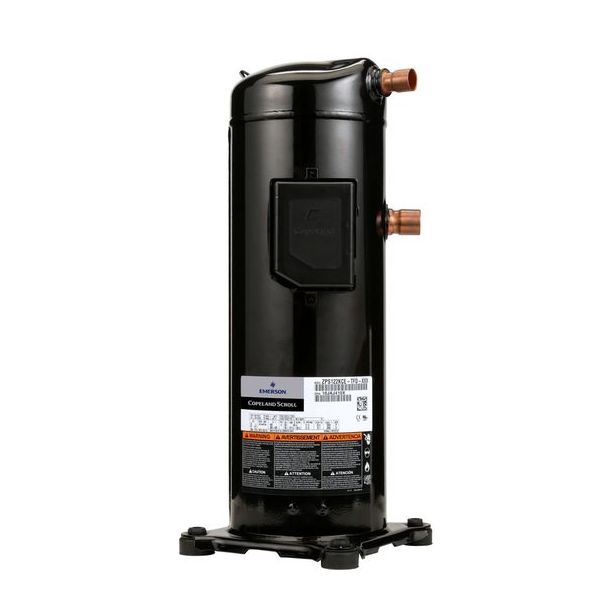

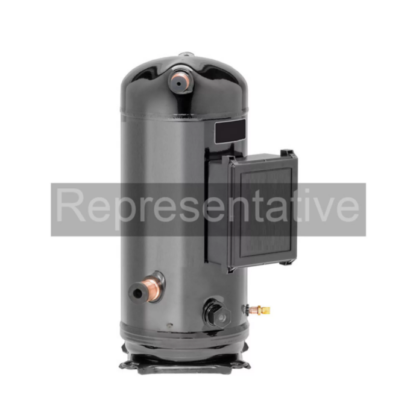

CARRIER ZPS83KCE-TFE-830 Scroll Compressor

Product Description

The CARRIER ZPS83KCE-TFE-830 is a hermetic scroll compressor suitable for air conditioning and heat pump systems. It operates with R-410A refrigerant and offers a displacement of four point seven one cubic inches per revolution. Connections include a seven eighths inch outer diameter suction line and a half inch outer diameter discharge connection of the stub type. The compressor is filled with fifty-seven ounces of polyolester oil and has dimensions of ten point twenty-three inches in length, nine point seventy-nine inches in width, and seventeen point seventy-six inches in height.

• Designed for split and packaged air conditioning systems.
• Compatible with R-410A refrigerant.
• Scroll design minimizes moving parts for improved reliability.

Product Highlights

This compressor is efficient and reliable, suitable for various HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• MPN: ZPS83KCE-TFE-830

Technical Specifications

• Refrigerant: R-410A
• BTU Output: 83,000
• Phase: Three Phase
• Horsepower: 6-10 HP
• Weight: 95.00 LBS
• Dimensions: 10.23 x 9.79 x 17.76 inches
• Oil Charge: 57 oz
• Sound Level: 75-80 dBA
• Electrical: 200/230v 3ph 60Hz, 200/220v 3ph 50Hz
• Motor RPM: 2900
• Decibel Level (dBA): 77
