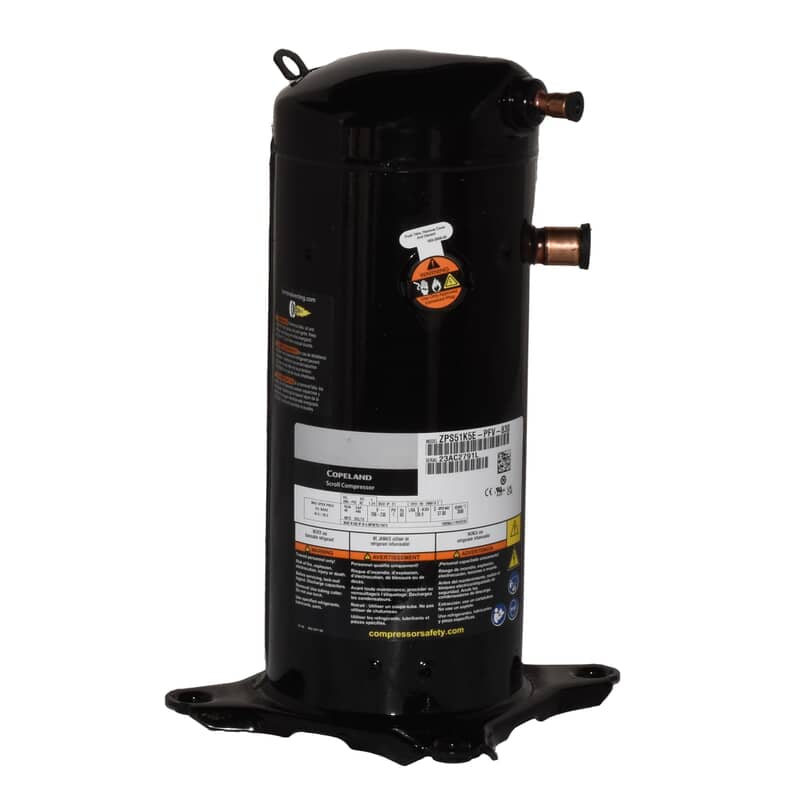

Carrier ZPS51K5E-PFV-830 Compressor 51,000 BTU

Product Description

The CARRIER ZPS51K5E-PFV-830 is a genuine OEM replacement compressor designed for HVAC systems. This two-stage scroll compressor operates on 208-230 VAC with a 50/60 Hz cycle, providing 51,000 BTU output. It uses R-410A refrigerant and features a hermetic compressor housing. The unit has a single phase and is UL Recognized.

• Genuine OEM replacement part ensures compatibility and performance.
• Two-stage scroll compressor design for efficient operation.
• Operates on 208-230 VAC, 50/60 Hz, with 51,000 BTU output.

Product Highlights

This CARRIER ZPS51K5E-PFV-830 compressor is a UL Recognized, single-phase unit with a hermetic housing, designed for R-410A refrigerant.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: ZPS51K5E-PFV-830
• Country of Origin: USA

Technical Specifications

• Manufacturer: Carrier HVAC
• MPN: ZPS51K5E-PFV-830
• Parts Town Number: CRRZPS51K5E-PFV-830
• Units: Each
• Amperage: 18.5-22.1 A
• Certifications: UL Recognized
• BTU Output: 51,000
• Compressor Brand: Copeland
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Condensing Temperature: 115°F to 130°F (46.11°C to 54.44°C)
• Country of Origin: USA
• Cubic Measurement: 2.2569
• Frequency: 50/60 Hz
• Discharge Connection Size OD: 1/2 inch
• Discharge Connection Type: Stub
• Displacement: 2.96 in^3/Rev
• Evaporating Temperature: 45°F, 50°F (10°C)
• Liquid Temperature: 100°F to 115°F (37.78°C to 46.11°C)
• Locked Rotor Amps (LRA): 152.9 A
• Mass Flow: 767 lbs/hr; 853 lbs/hr
• Mounting Dimensions: 7.5 x 7.5 x 17.17 inches
• OPT Code: ZPS51K5EPFV830
• Initial Oil Charge: 42 oz
• Oil Type: Polyolester (POE)
• Phase: Single
• Protection: Yes
• Rated Load Amps (RLA): 30 A, 26.9 A
• Refrigerant: R-410A
• Return Gas Temperature: 70°F (21.11°C), 65°F
• Sound Level: 70-75 dBA
• Suction Line Fitting Type: Stub
• Suction Line Size OD: 7/8 inch
• Voltage: 208-230 VAC
