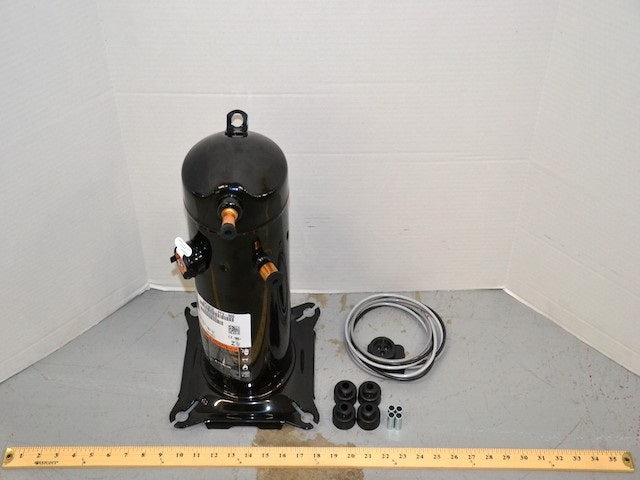

Carrier ZP25K5E-PFV-130 Scroll Compressor 24000 Btu

Product Description

The CARRIER ZP25K5E-PFV-130 is a Copeland scroll compressor rated at 24,000 BTU/h for use in residential and light-commercial air conditioning systems. Operating on 208-230 volts, single phase, and designed for R410A refrigerant, this compressor serves as the primary vapor-compression component in split-system and packaged cooling equipment. Scroll compressors of this type are known for quiet operation and high volumetric efficiency compared to reciprocating designs. Licensed HVAC technicians install and service this component as part of refrigerant-circuit work requiring EPA 608 certification.

This compressor is suited for residential split-system air conditioners and heat pumps where a 2 HP, 24,000 BTU/h scroll unit is specified. It is an OEM-style replacement targeting systems that originally called for a Copeland ZP-series scroll compressor in the same capacity and voltage class. Typical applications include outdoor condensing units in residential cooling systems operating on single-phase power.

Key Features

• 24,000 BTU/h cooling capacity for residential and light-commercial applications
• 208-230 volt, single-phase operation compatible with standard residential power supply
• Designed for R410A refrigerant, meeting current EPA refrigerant standards
• Copeland scroll compressor design for efficient, low-vibration operation
• OEM-style replacement targeting ZP-series Copeland scroll applications

Compatibility

Designed as an OEM-style replacement scroll compressor for residential and light-commercial air conditioning and heat pump systems specifying a 2 HP, 24,000 BTU/h, 208-230 volt single-phase, R410A Copeland ZP-series scroll unit.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Disconnect and lock out all electrical power and recover all refrigerant from the system before removing the failed compressor. Follow the equipment manufacturer's service literature for oil type and charge, crankcase heater energization time, and system evacuation requirements before recharging with R410A. Verify that suction and discharge line connections are leak-tested after installation and before returning the system to service.

Technical Specifications

• Capacity: 24,000 BTU/h
• Horsepower: 2 HP
• Voltage: 208-230 volts
• Phase: Single phase
• Refrigerant: R410A
• Compressor Type: Scroll

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: ZP25K5E-PFV-130
